Inspection Procedures

1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

   Are all connectors good?

Yes: Go to next

No: Repair or replace it.

1. Turn ignition switch to OFF and disconnect OTS connector.
2. Check resistance of OTS between terminals 1 and 2 of the OTS connector.

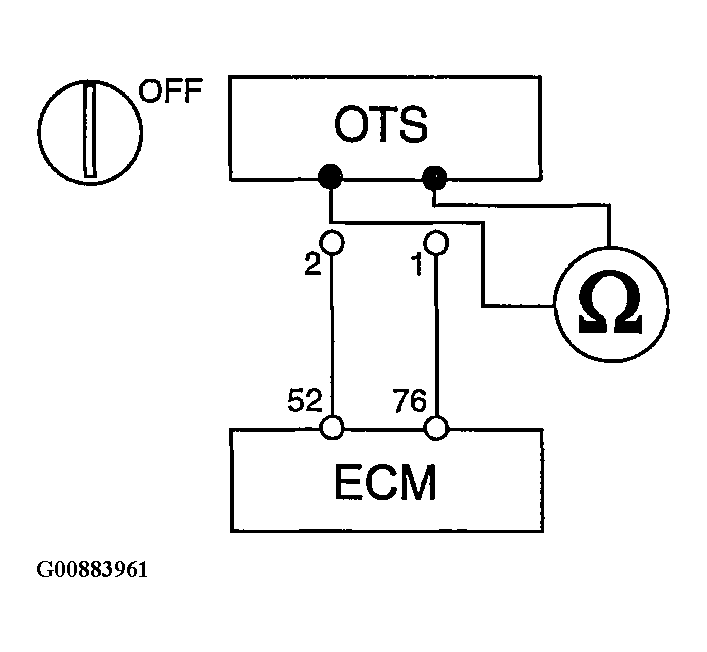

Fig 1: Checking Resistance Of OTS Between Terminals 1 & 2 Of OTS Connector

Courtesy of HYUNDAI MOTOR CO.

• Refer to  SPECIFICATIONS   for more information.

Is resistance within specification?

Yes: Go to next

No: Replace OTS.

1. Turn ignition switch to ON position.
2. Measure voltage between terminal 1 of the OTS harness connector and chassis ground.

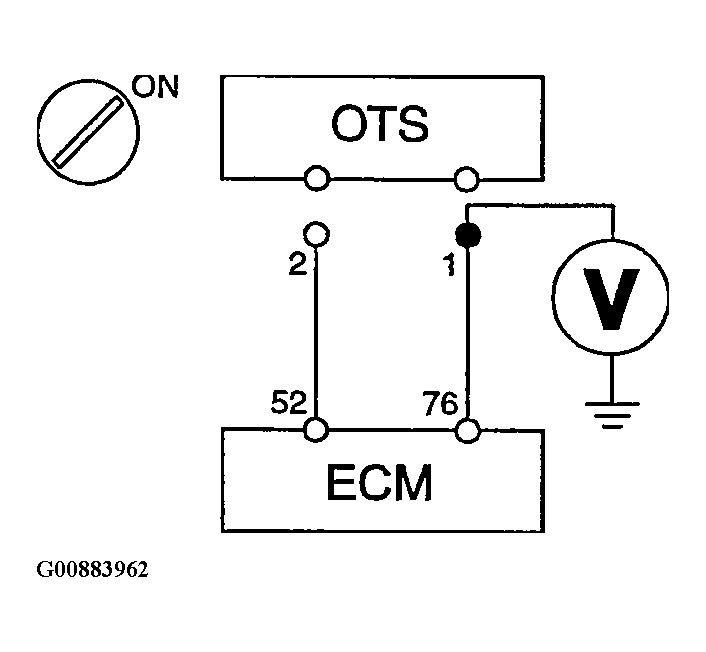

   Fig 2: Measuring Voltage Between Terminal 1 Of OTS Harness Connector & Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.

• Specification: approximately 5V

Is voltage within specification?

Yes: Go to next

No: Repair open or short to chassis ground in harness.

1. Turn ignition switch to OFF position.
2. Disconnect ECM connector.
3. Check for short in harness between terminals 1 and 2 of the OTS harness connector.
4. Check for short to ground in harness between terminal 2 of the OTS harness connector and chassis ground.

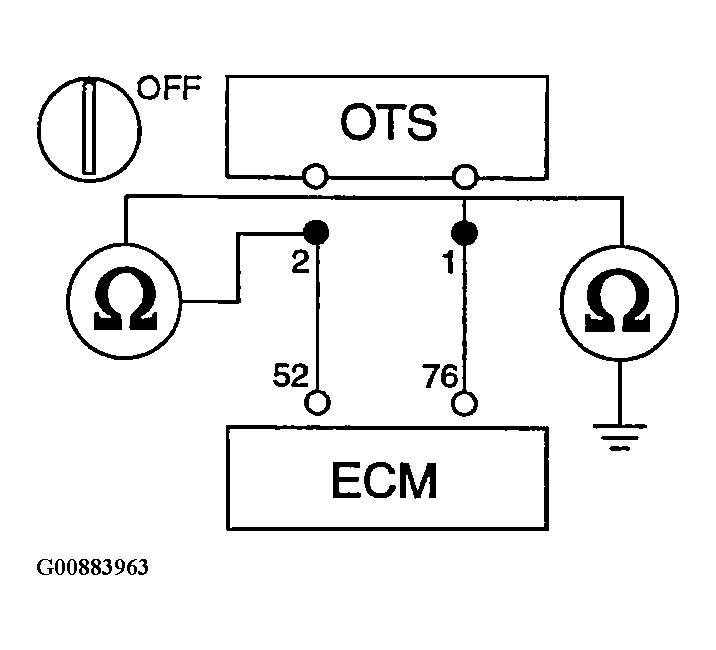

Fig 3: Checking For Short To Ground In Harness Between Terminal 2 Of OTS Harness Connector & Chassis Ground

Courtesy of HYUNDAI MOTOR CO.

• Specification: infinite

Does resistance indicate open?

Yes: Proceed with ECM PROBLEM PROCEDURE  .

No: Repair short or short to chassis ground in harness.
