Inspection Procedures

1. Thoroughly check the CCV for loose, bent, corroded, contaminated, deteriorated or damaged connectors.

Is any problem present?

No: Go to next

Yes: Repair or replace it.

1. Turn ignition switch to OFF position and disconnect the CCV harness connector.
2. Measure resistance between terminals 1 and 2 of the CCV connector.

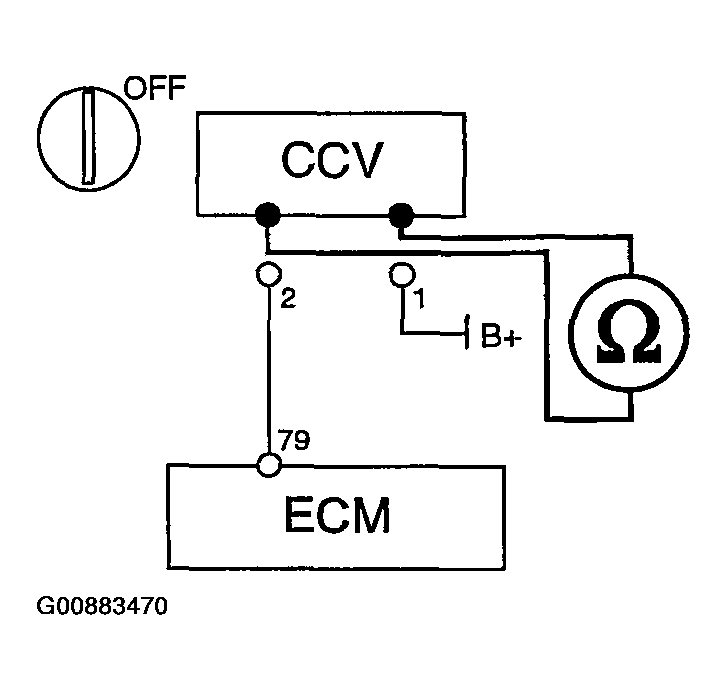

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of CCV Connector

Courtesy of HYUNDAI MOTOR CO.

• Specification: 23~26ohm at 20°C (68°F)

Is resistance within specification?

Yes: Go to next

No: Replace it.

1. Turn ignition switch to OFF position.
2. Turn ignition switch to ON position and measure the voltage between terminal 1 of the CCV harness connector and chassis ground.

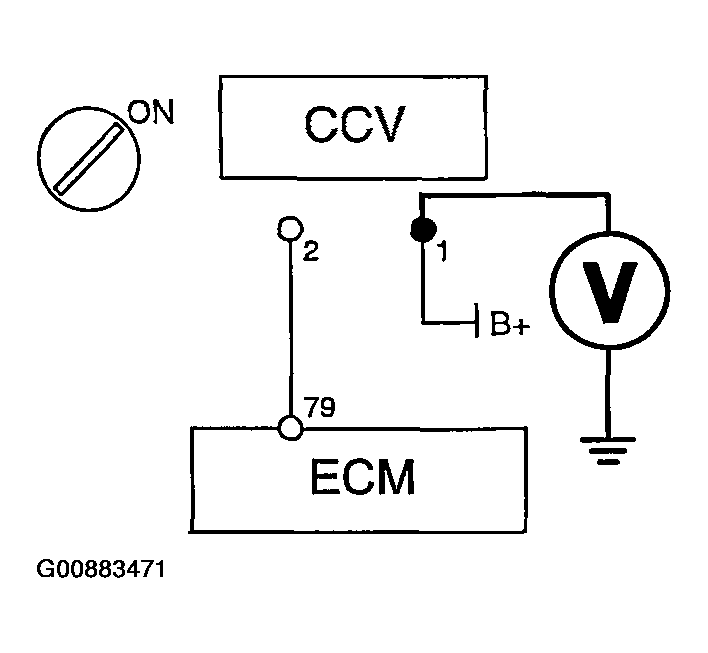

Fig 2: Measuring Voltage Between Terminal 1 Of CCV Harness Connector & Chassis Ground

Courtesy of HYUNDAI MOTOR CO.

• Specification: approximately B+

Is voltage within specification?

Yes: Go to next

No: Repair open in harness.

1. Turn ignition switch to OFF position and disconnect the ECM connector.
2. Measure resistance between terminal 2 of the CCV harness connector and terminal 79 of the ECM harness connector.

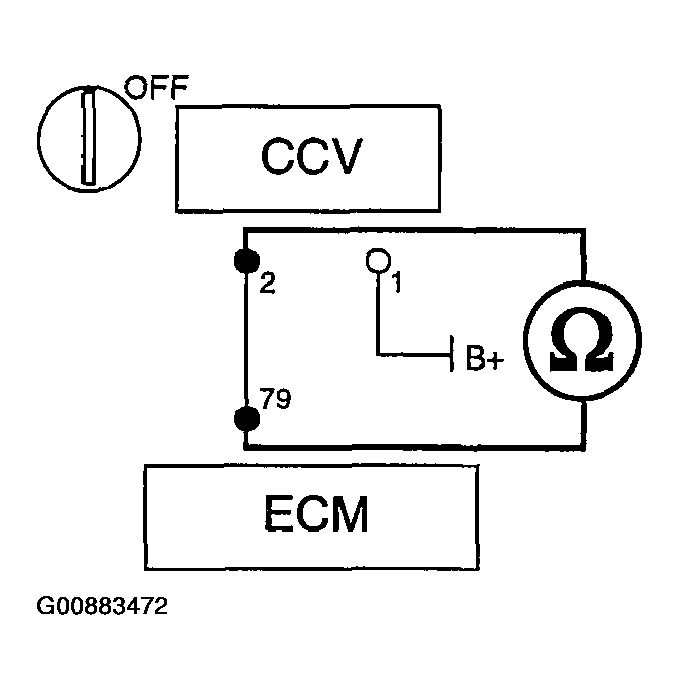

Fig 3: Measuring Resistance Between Terminal 2 Of CCV Harness Connector & Terminal 79 Of ECM Harness Connector

Courtesy of HYUNDAI MOTOR CO.

• Specification: below 1ohm

Does resistance indicate continuity?

Yes: Proceed with ECM PROBLEM PROCEDURE  .

No: Repair open in harness.
