Transaxle Mounting

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle mounting insulator bolts.
  2. Remove the transaxle mounting bracket from the transaxle.

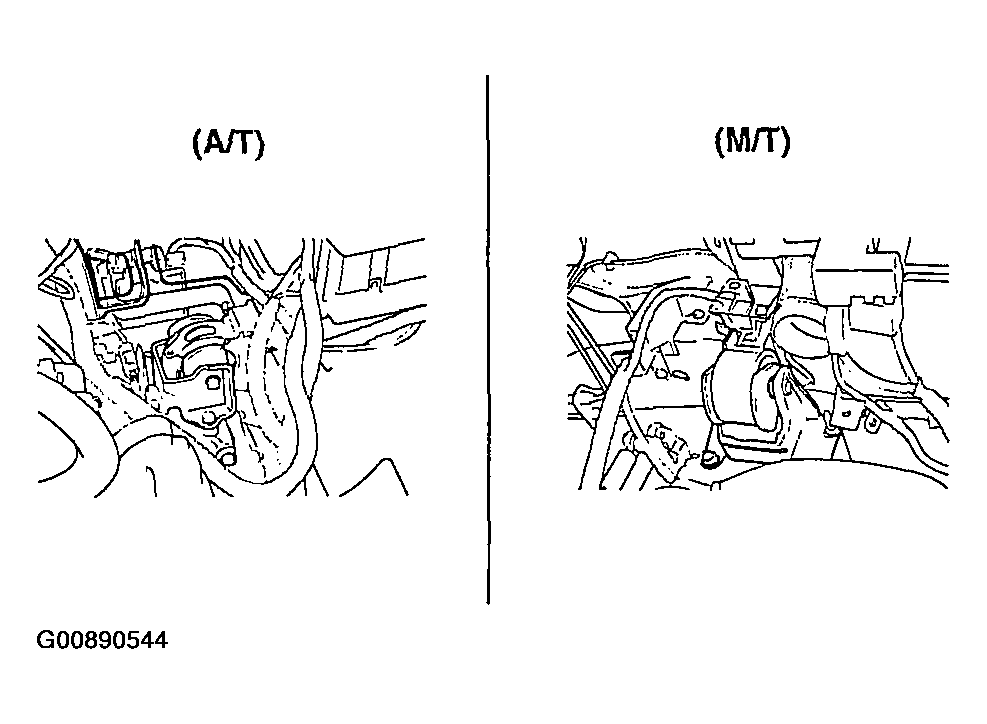

Fig 1: Removing Transaxle Mounting Bracket From Transaxle
G00890544Courtesy of HYUNDAI MOTOR CO.
