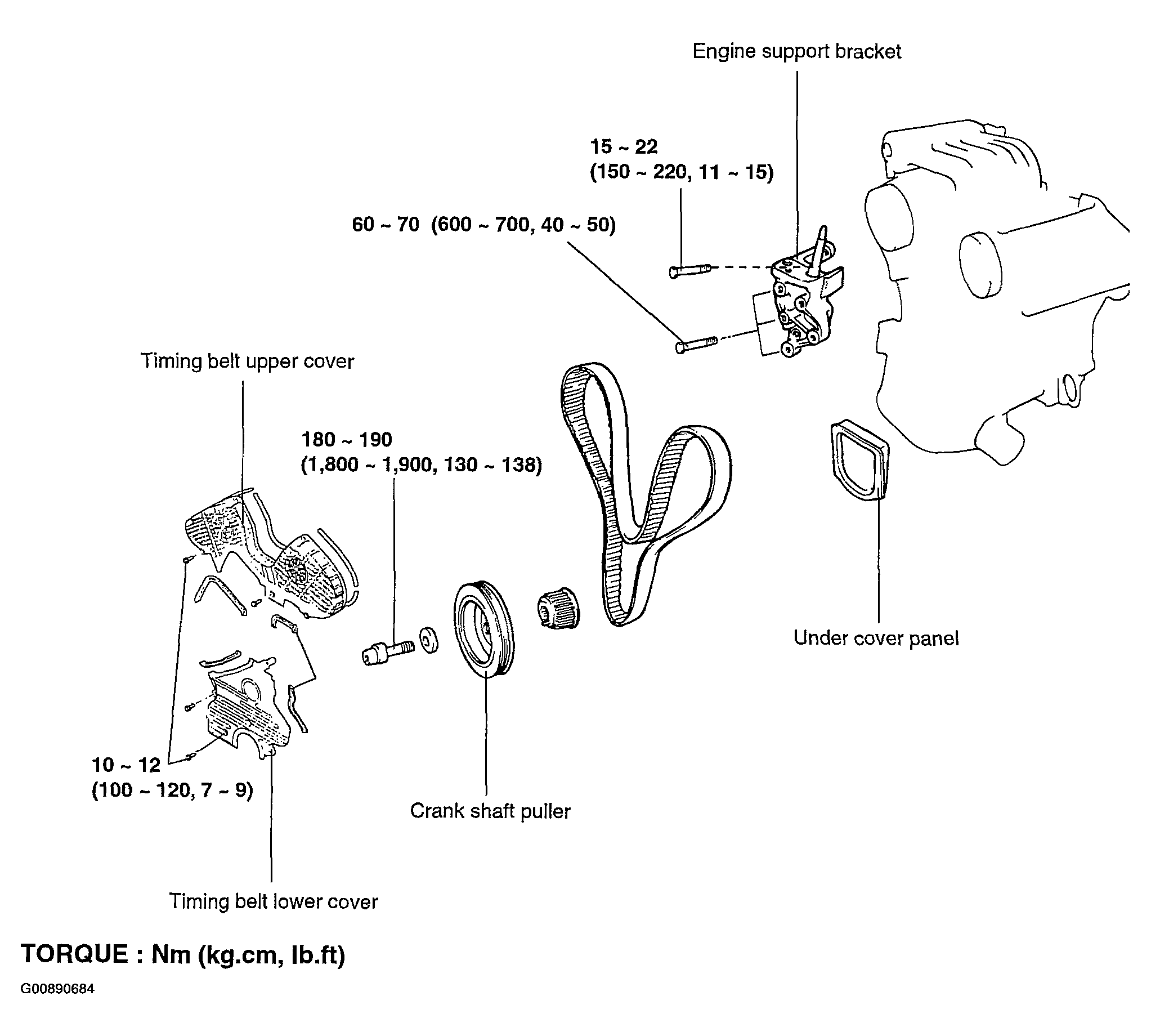

Timing Belt: Components
WARNING: This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR CO.
