BCM Terminal Connection

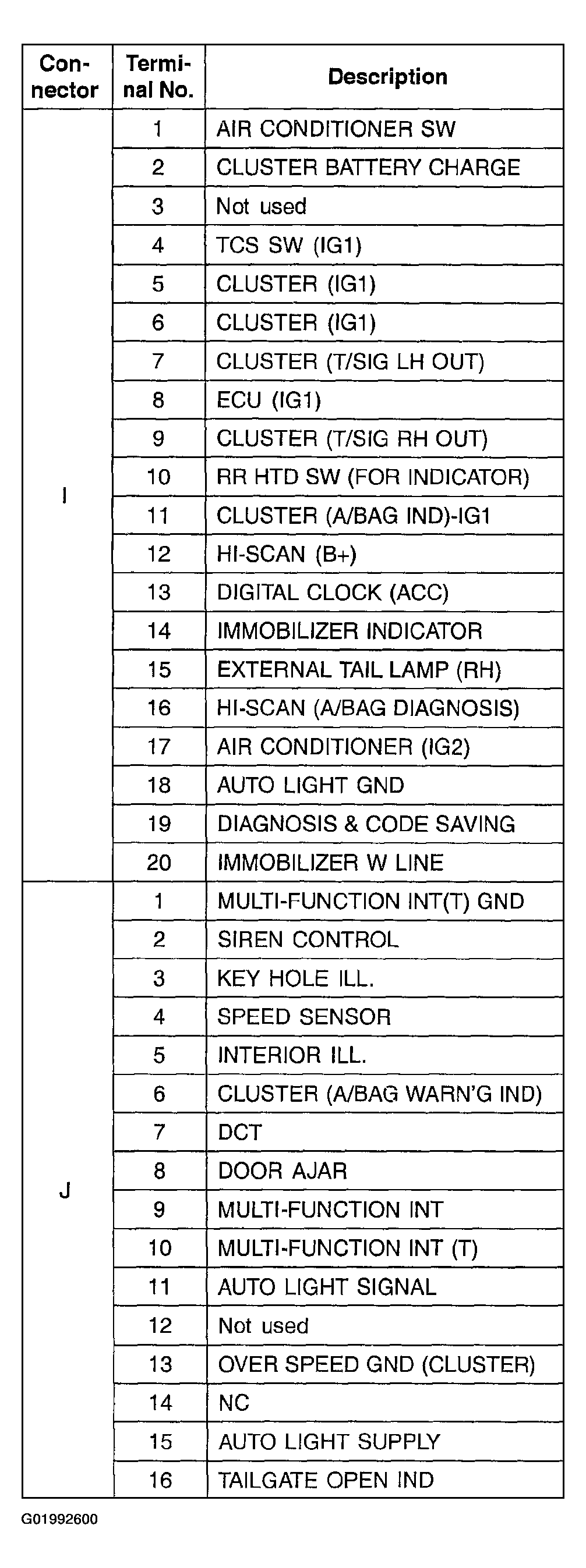

Fig 1: Identifying BCM Terminal Connections (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

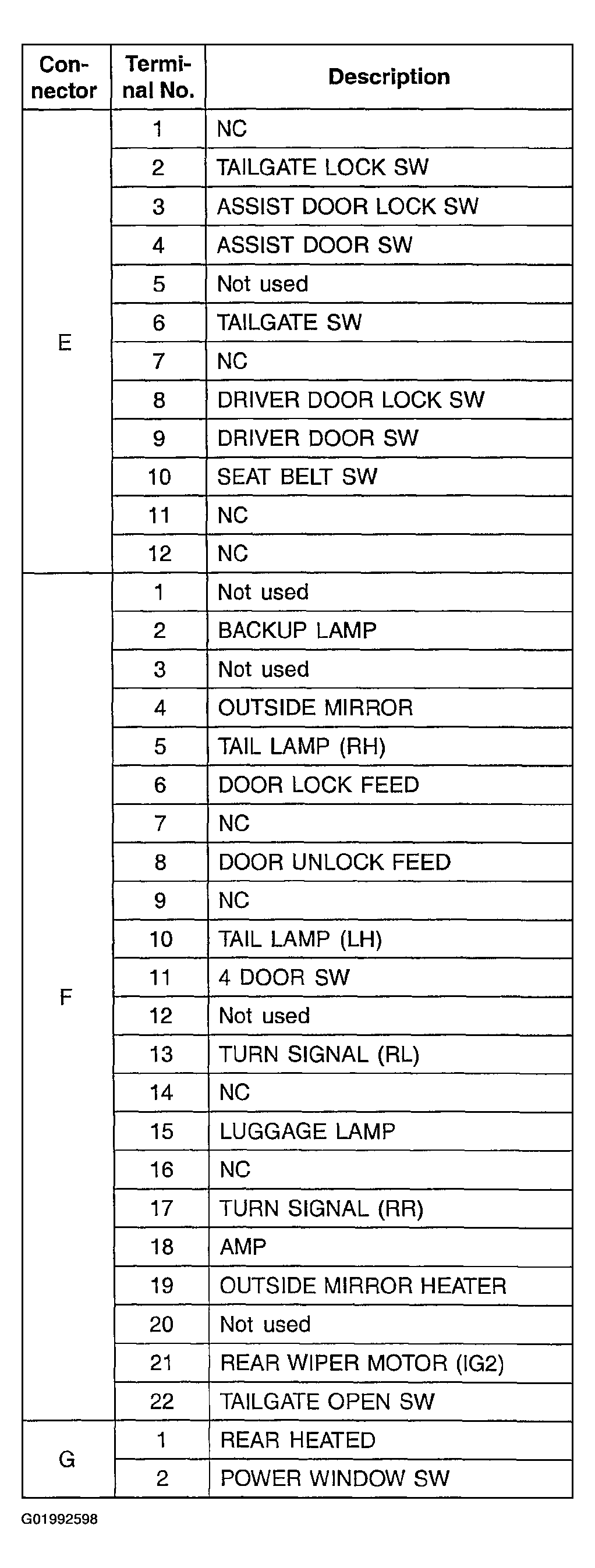

Fig 2: Identifying BCM Terminal Connections (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

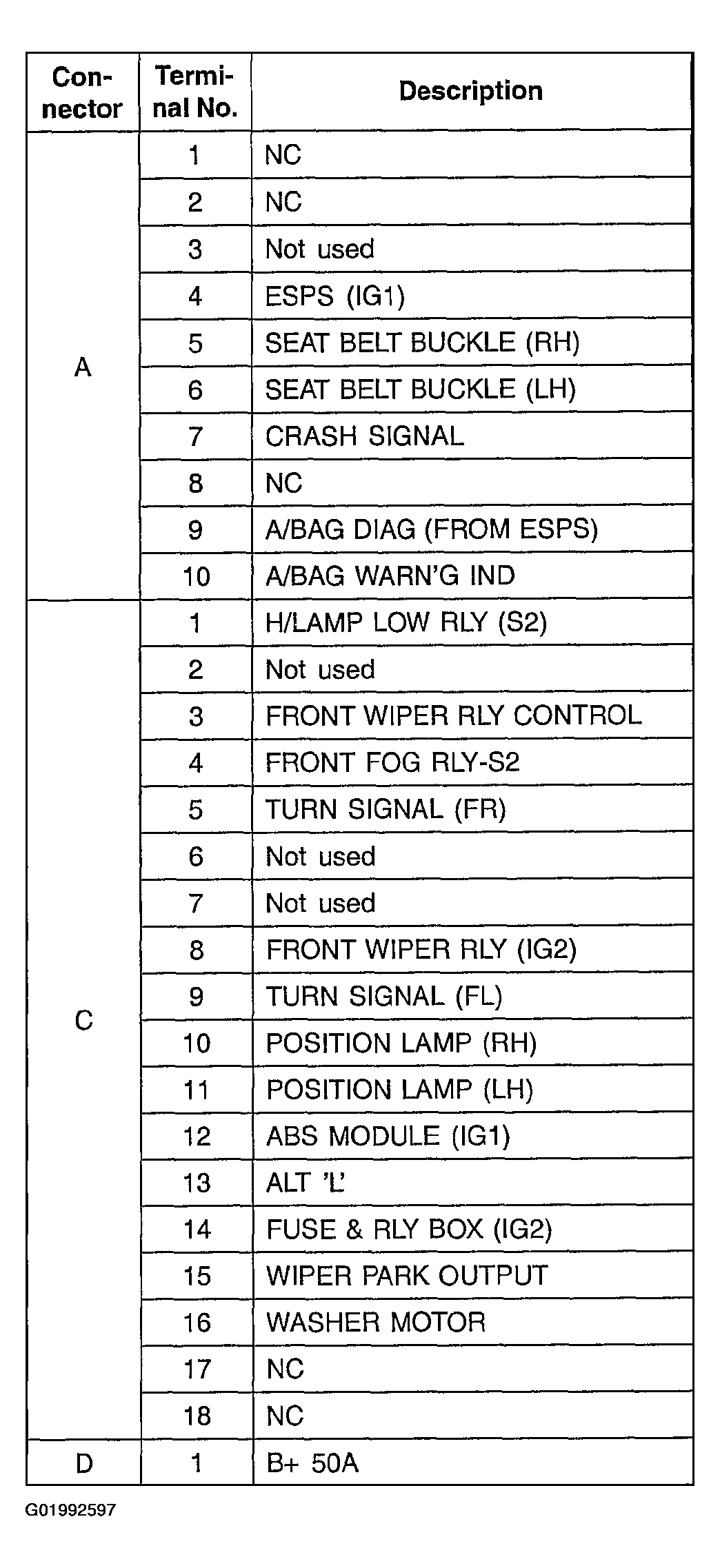

Fig 3: Identifying BCM Terminal Connections (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

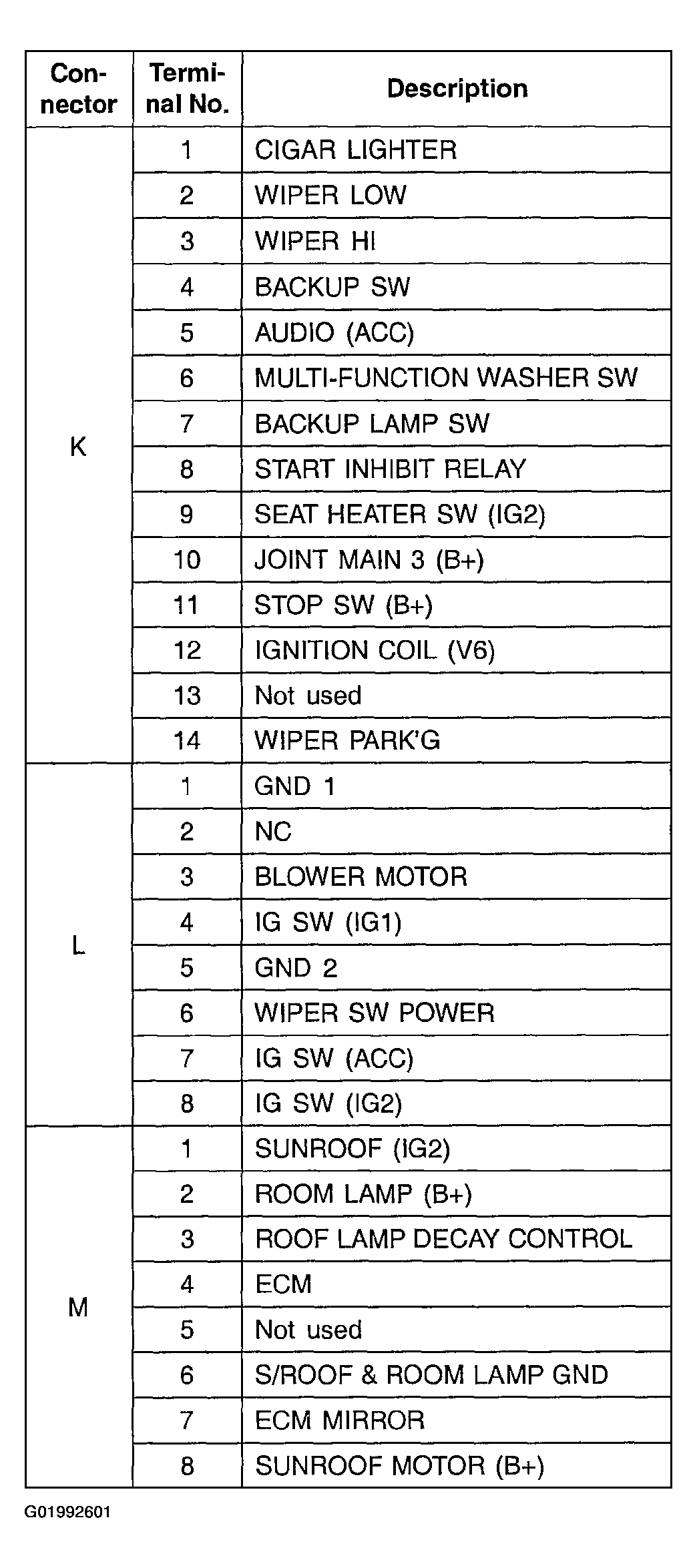

Fig 4: Identifying BCM Terminal Connections (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

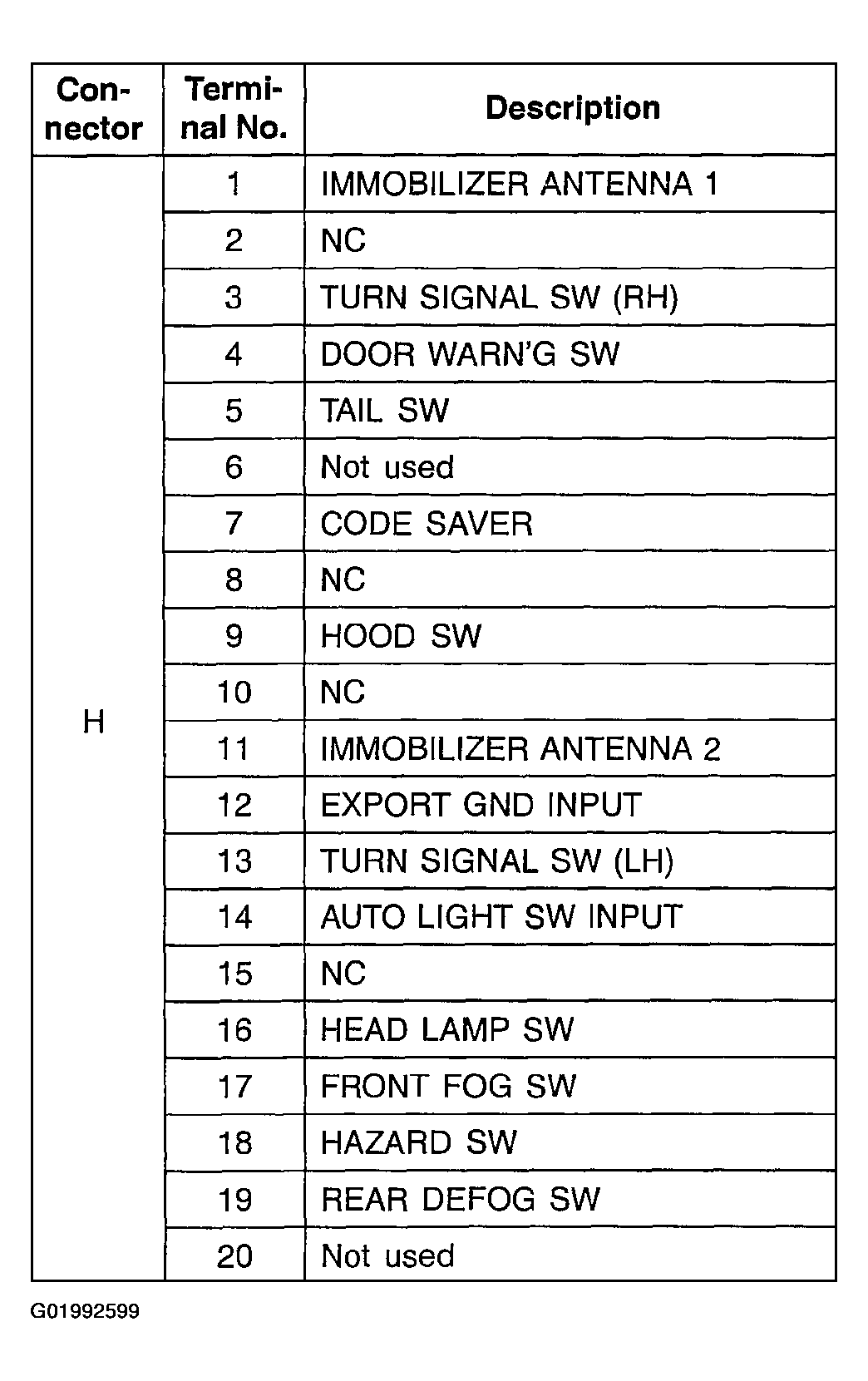

Fig 5: Identifying BCM Terminal Connections (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
