Body Control Module (BCM): Fuse

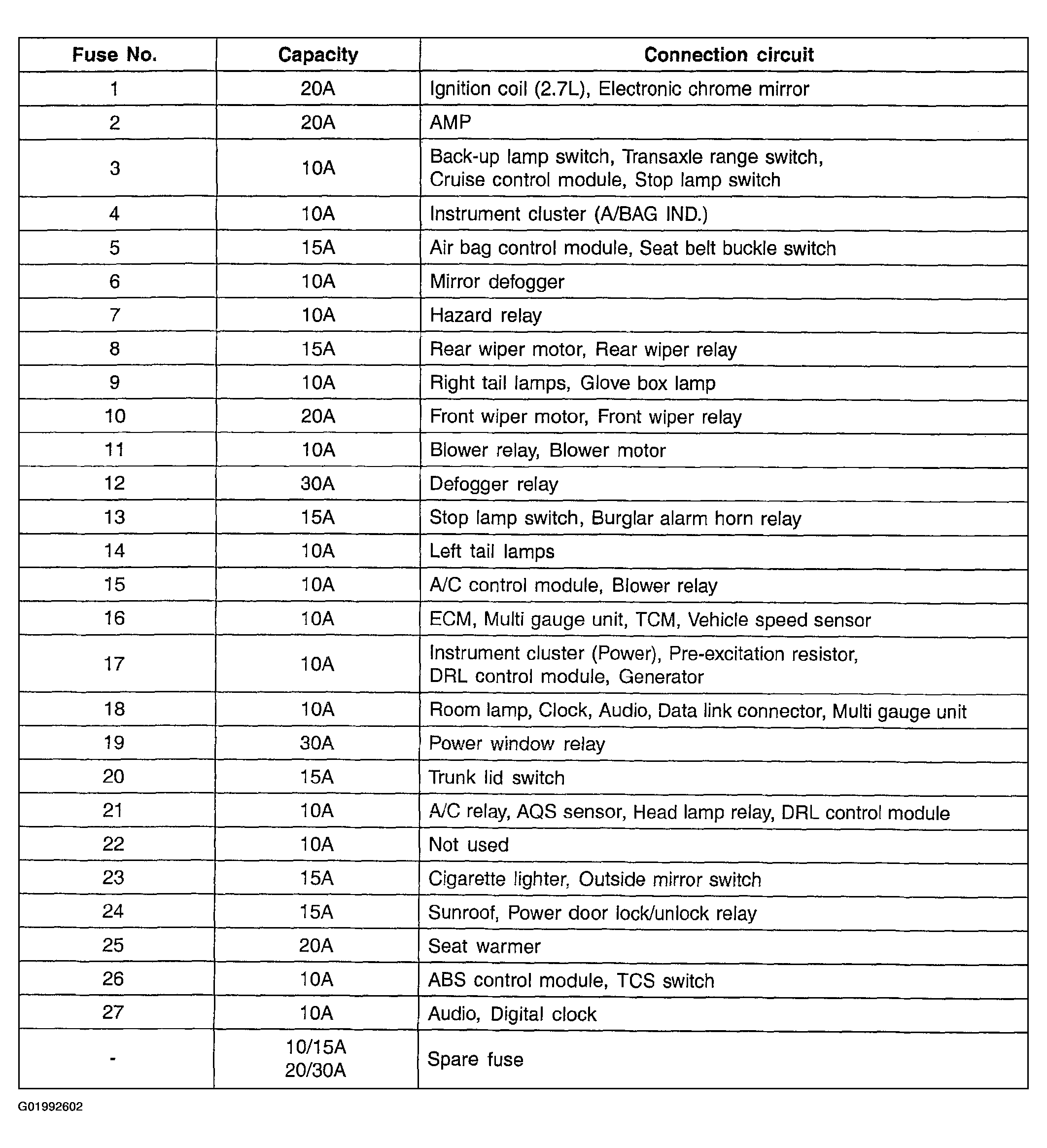

Fig 1: Identifying Fuses
G01992602Courtesy of HYUNDAI MOTOR CO.

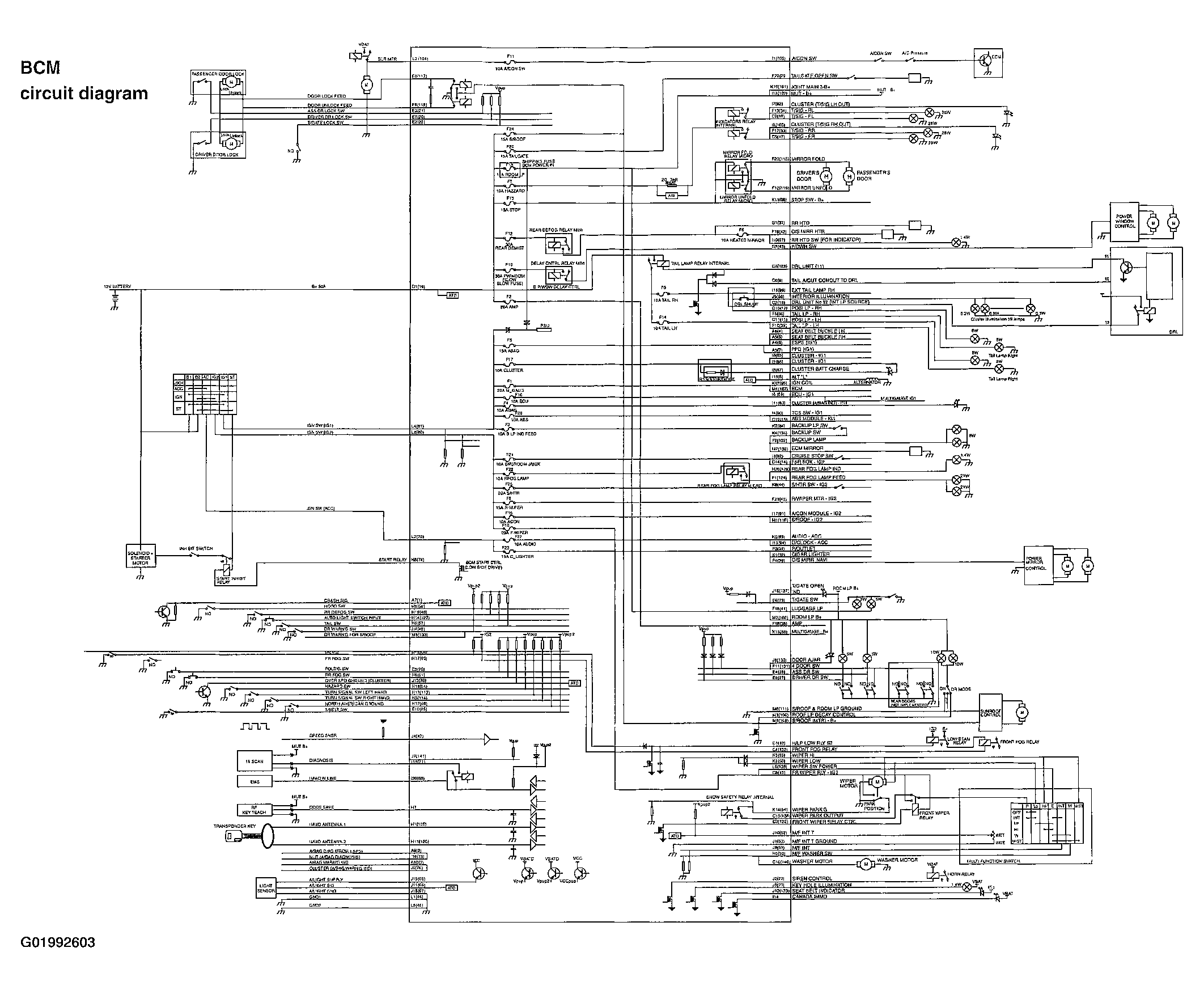

Fig 2: BCM Circuit Diagram
G01992603Courtesy of HYUNDAI MOTOR CO.
