HECU Block Diagram

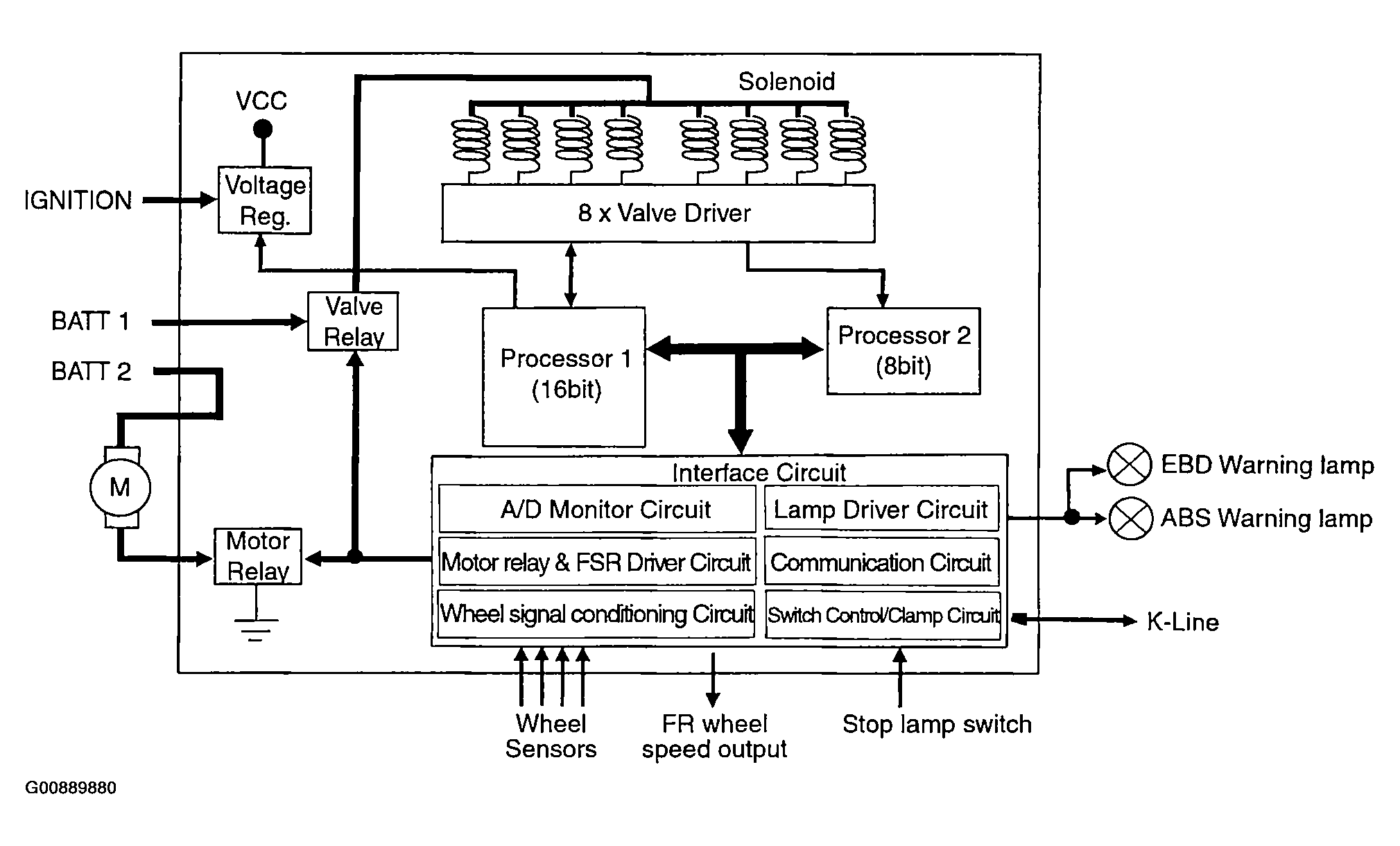

  1. ABS ECU BLOCK DIAGRAM
    Fig 1: ABS ECU Block Diagram
    G00889880Courtesy of HYUNDAI MOTOR CO.

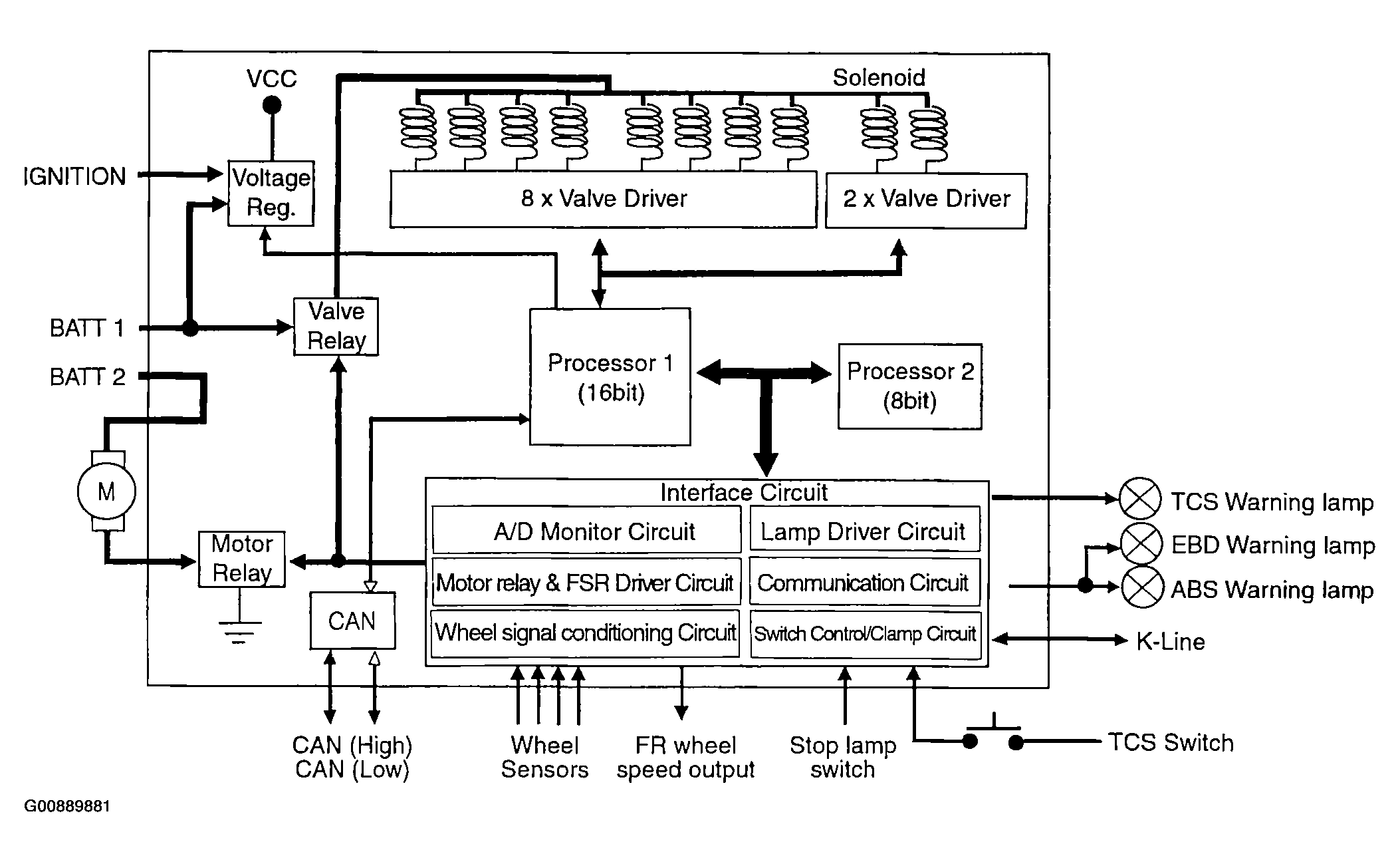

  2. TCS ECU BLOCK DIAGRAM
Fig 2: TCS ECU Block Diagram
G00889881Courtesy of HYUNDAI MOTOR CO.
