Anti-Lock Braking System Control Module: Components: HECU

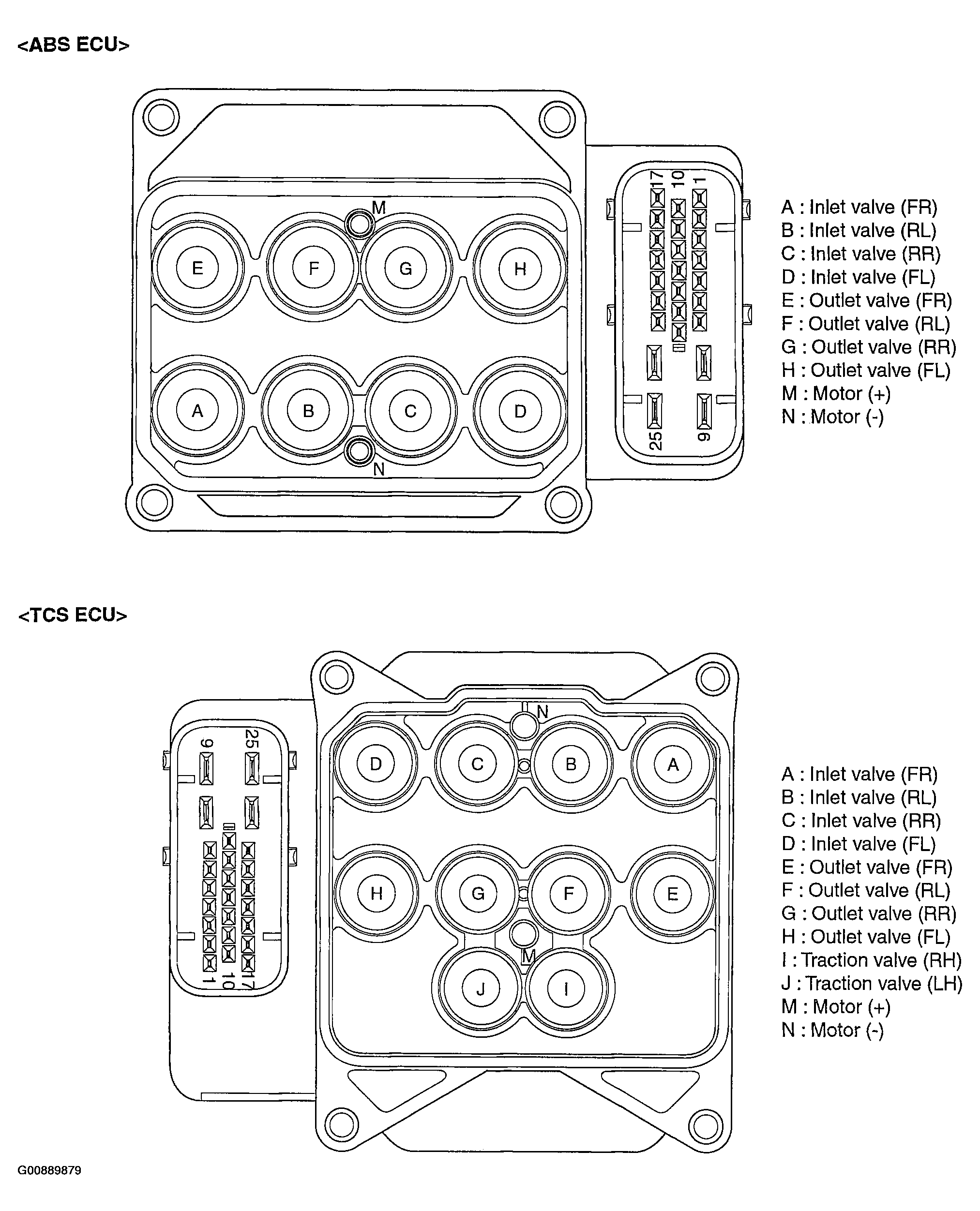

Fig 1: Identifying HECU

G00889879

Courtesy of HYUNDAI MOTOR CO.
