Inspection Of HECU Terminals: Notes

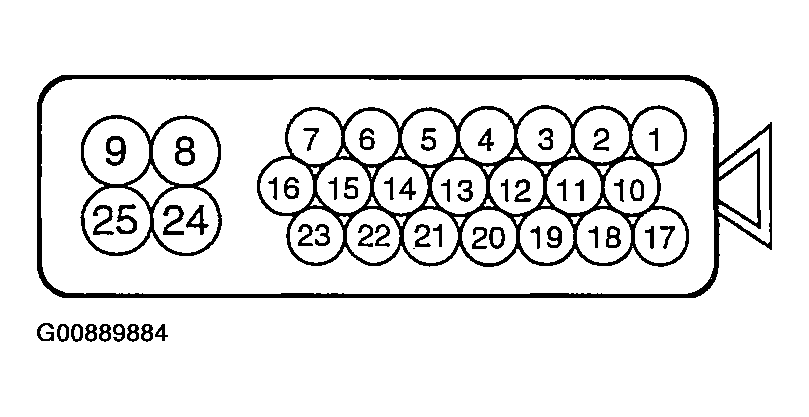

Fig 1: Identifying HECU Wiring Harness Side Connector
G00889884Courtesy of HYUNDAI MOTOR CO.

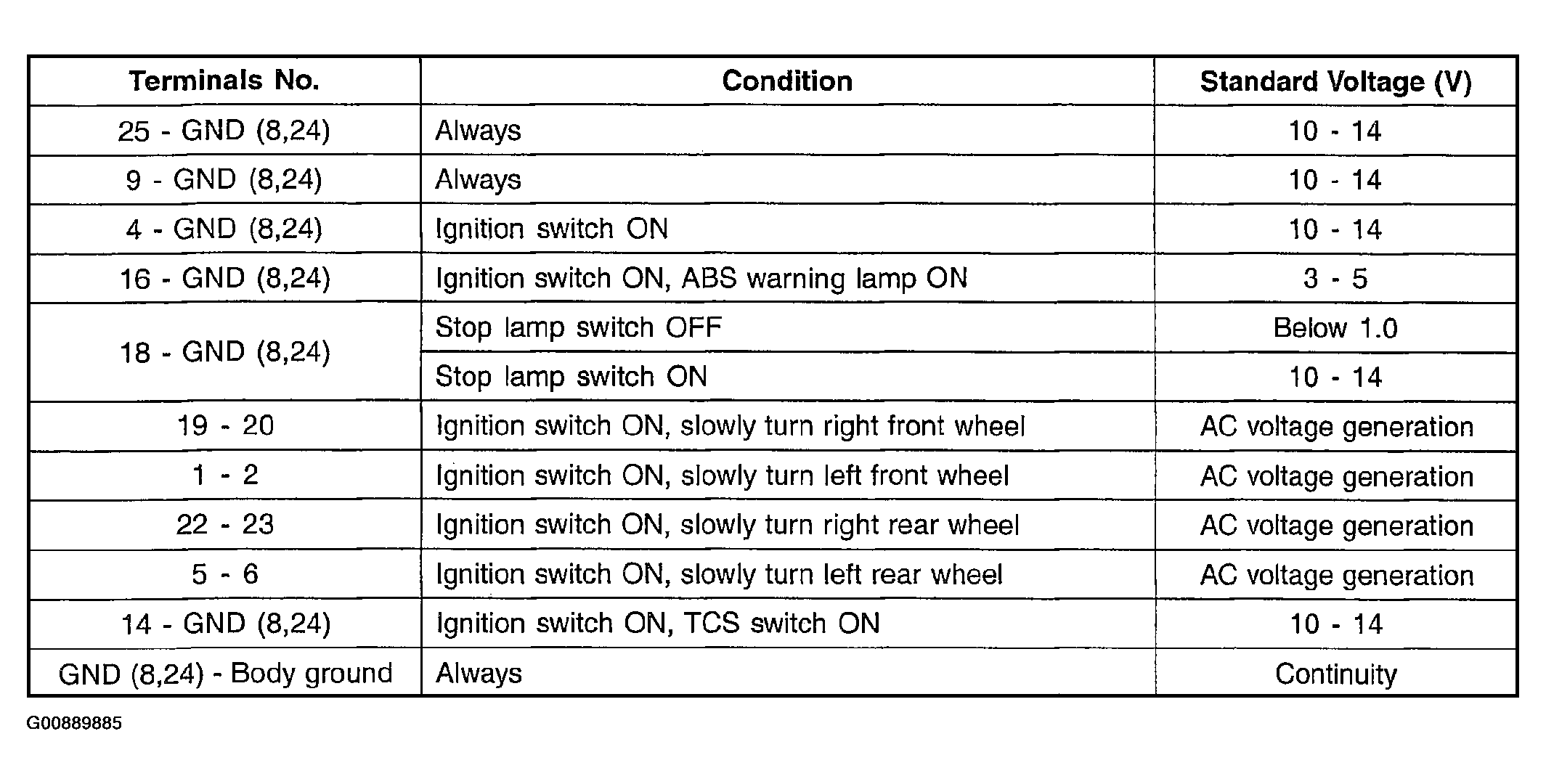

Fig 2: Identifying HECU Wiring Harness Side Connector Terminals
G00889885Courtesy of HYUNDAI MOTOR CO.
