Control Specification

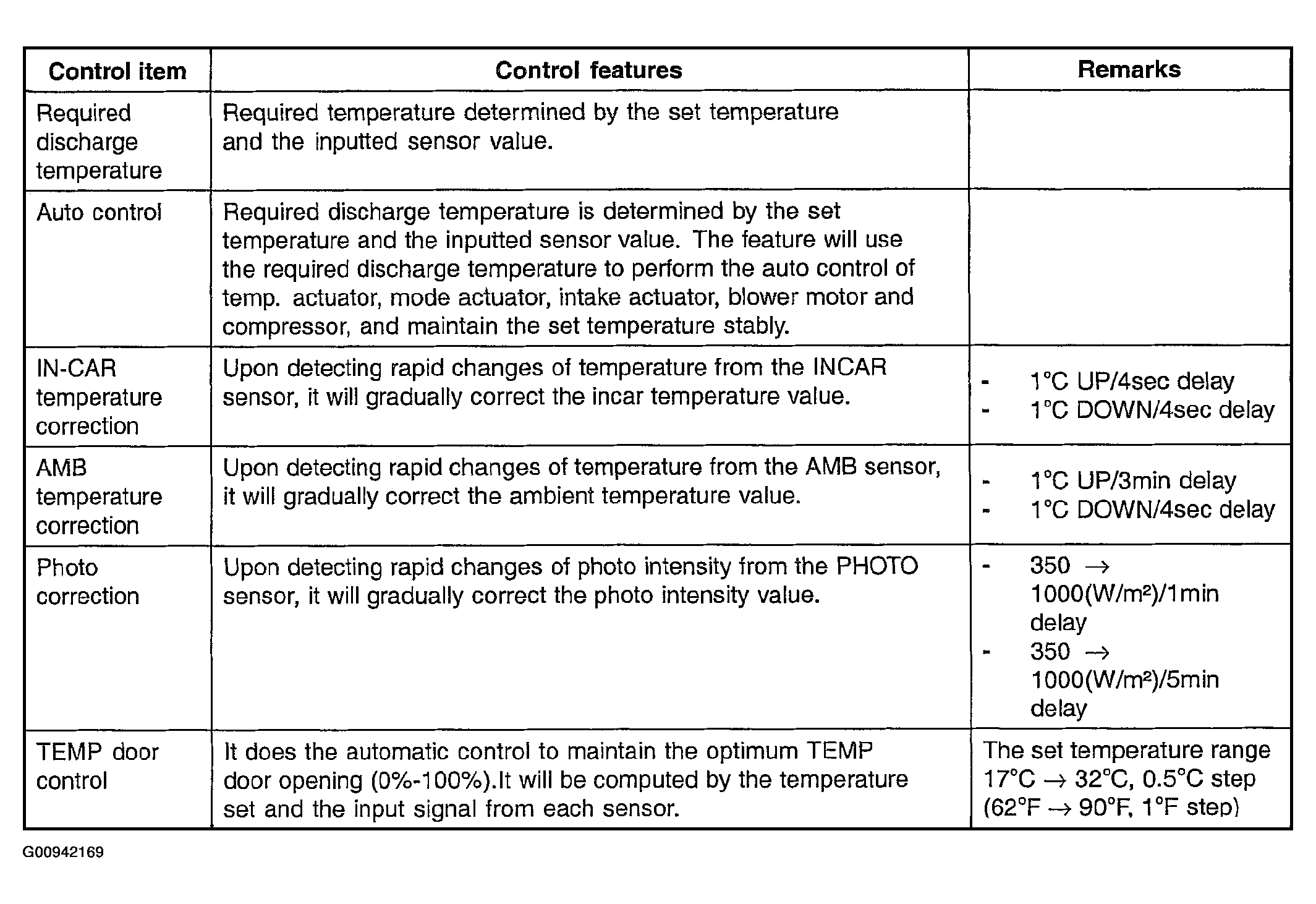

Fig 1: Control Specification (1 Of 4)
G00942169Courtesy of HYUNDAI MOTOR CO.

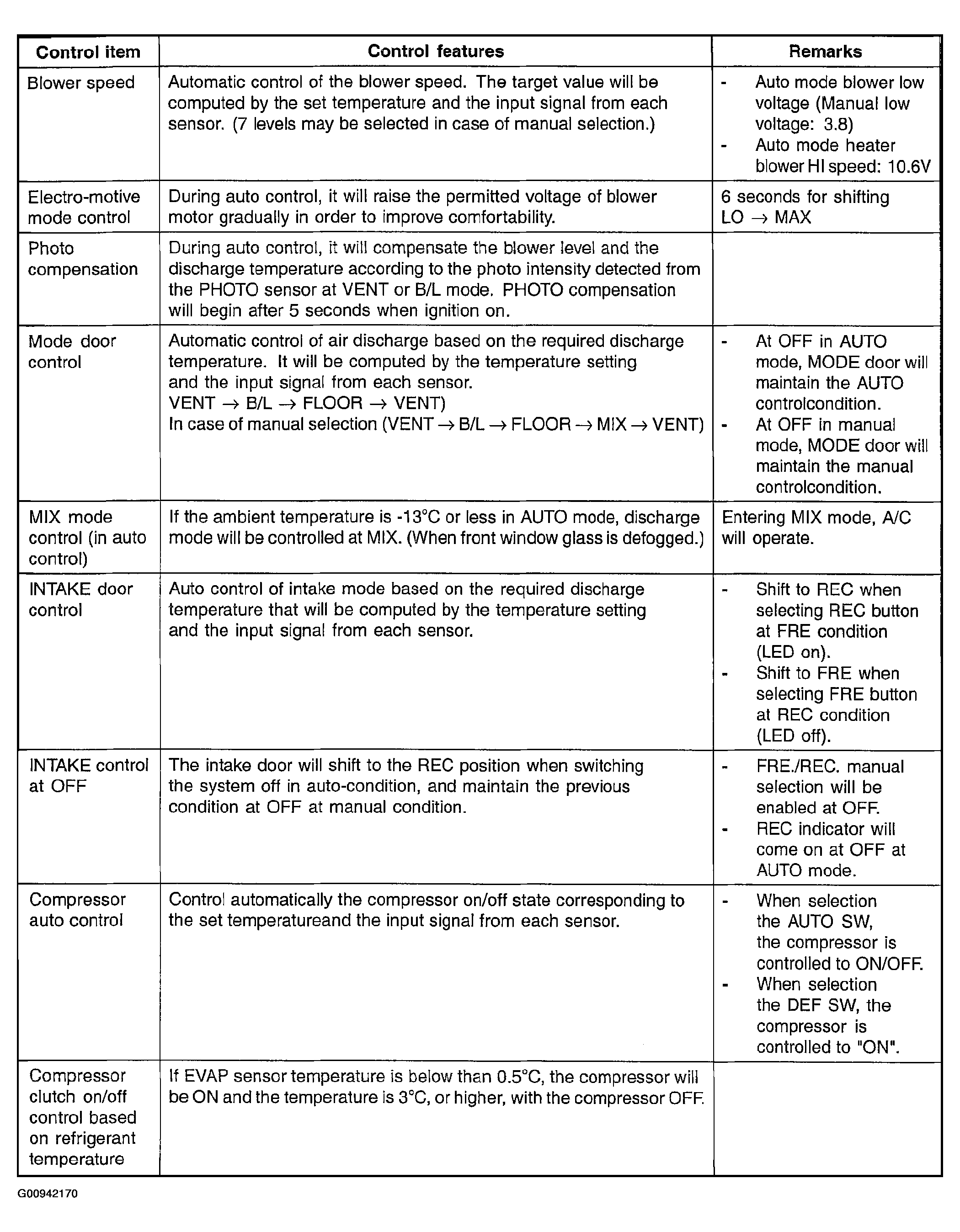

Fig 2: Control Specification (2 Of 4)
G00942170Courtesy of HYUNDAI MOTOR CO.

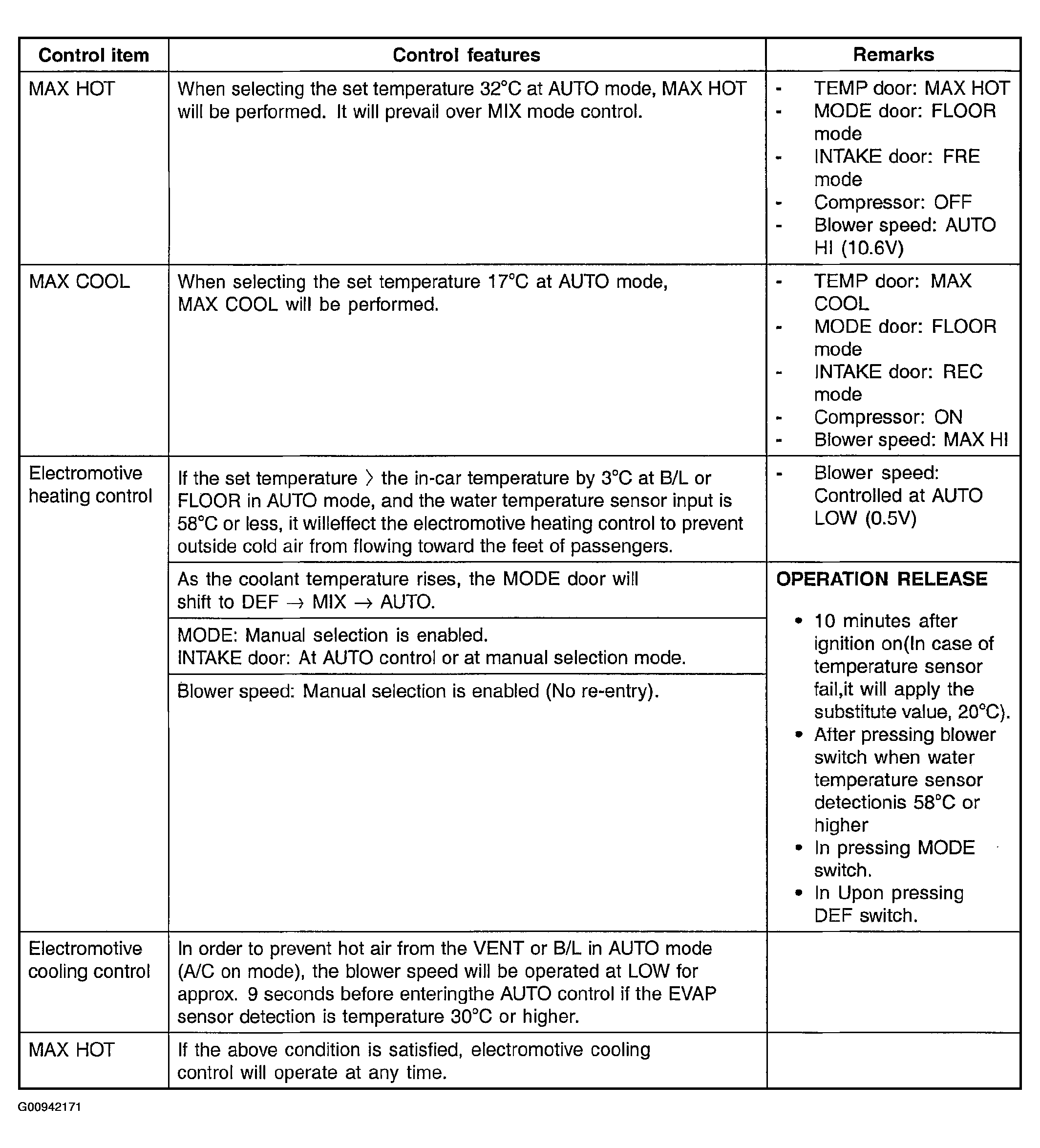

Fig 3: Control Specification (3 Of 4)
G00942171Courtesy of HYUNDAI MOTOR CO.

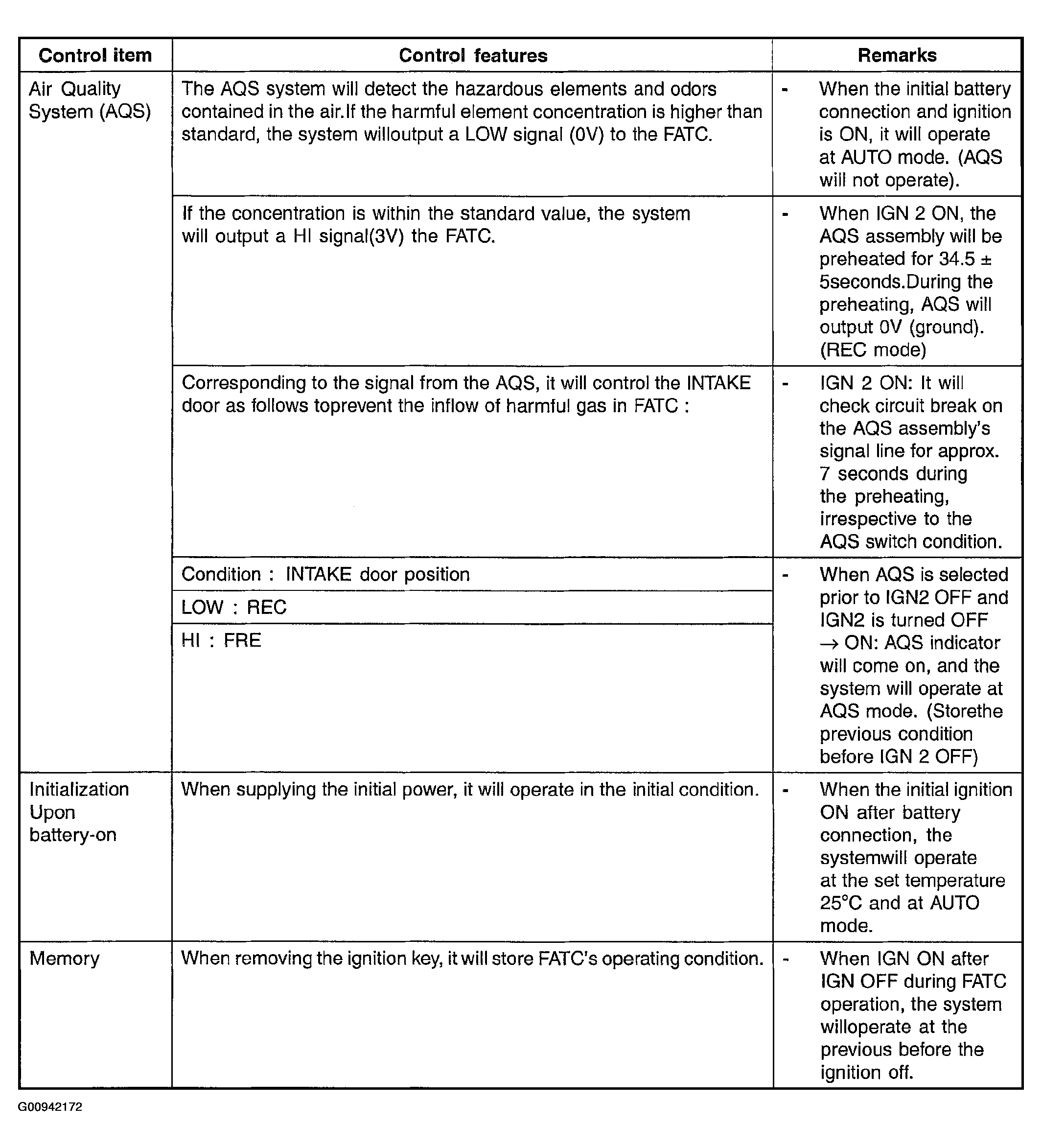

Fig 4: Control Specification (4 Of 4)
G00942172Courtesy of HYUNDAI MOTOR CO.
