Trouble Shooting

NOTE: Before troubleshooting :

Check the No.3 (10A), No.13 (15A) and No.17 (10A) fuse in the under-hood fuse/relay box.
Check that the horn sounds.
Check the tachometer to see if it works properly.

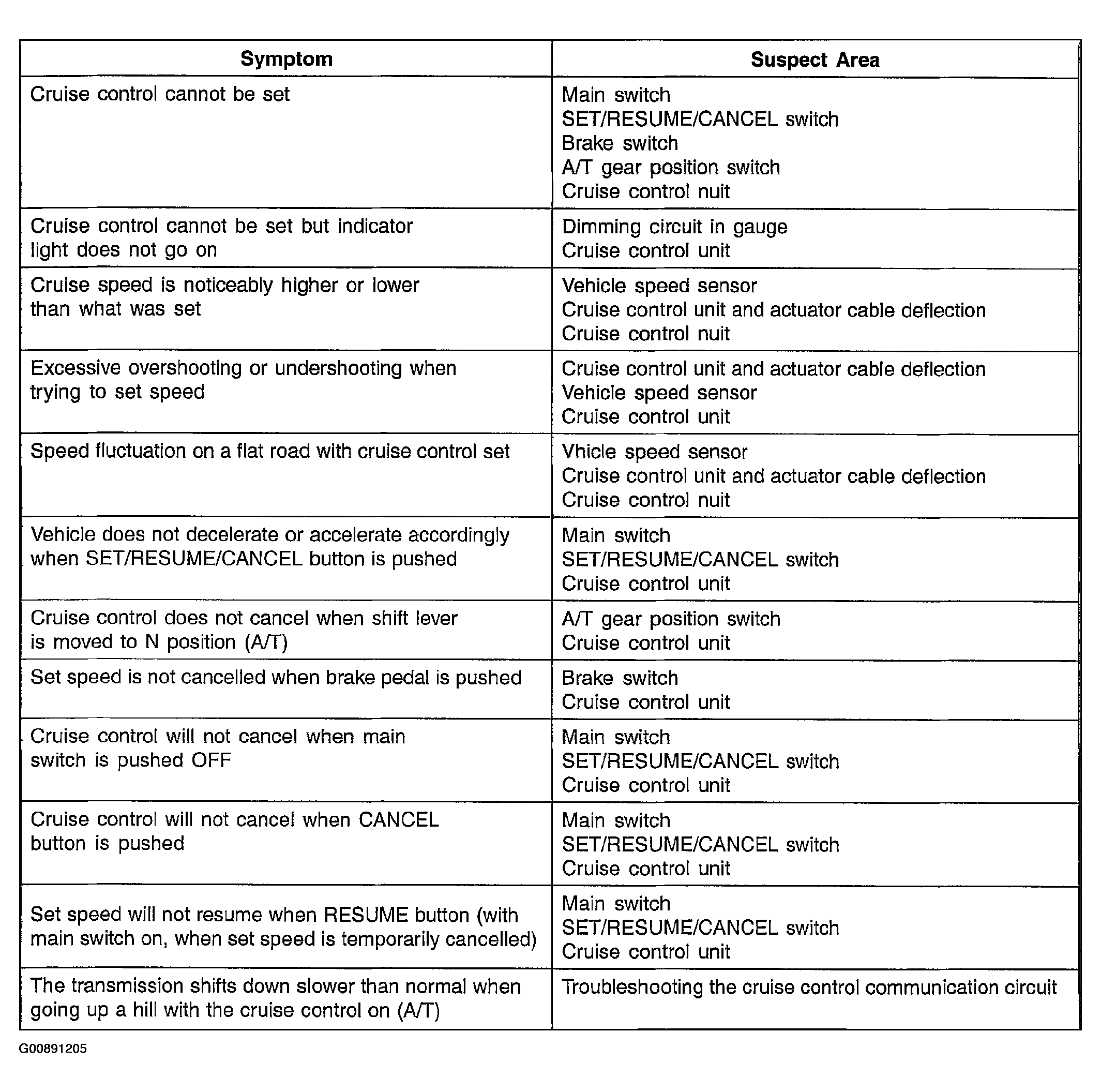

Fig 1: Trouble Shooting

Courtesy of HYUNDAI MOTOR CO.
