Auxiliary Emission Control Systems: General: Components

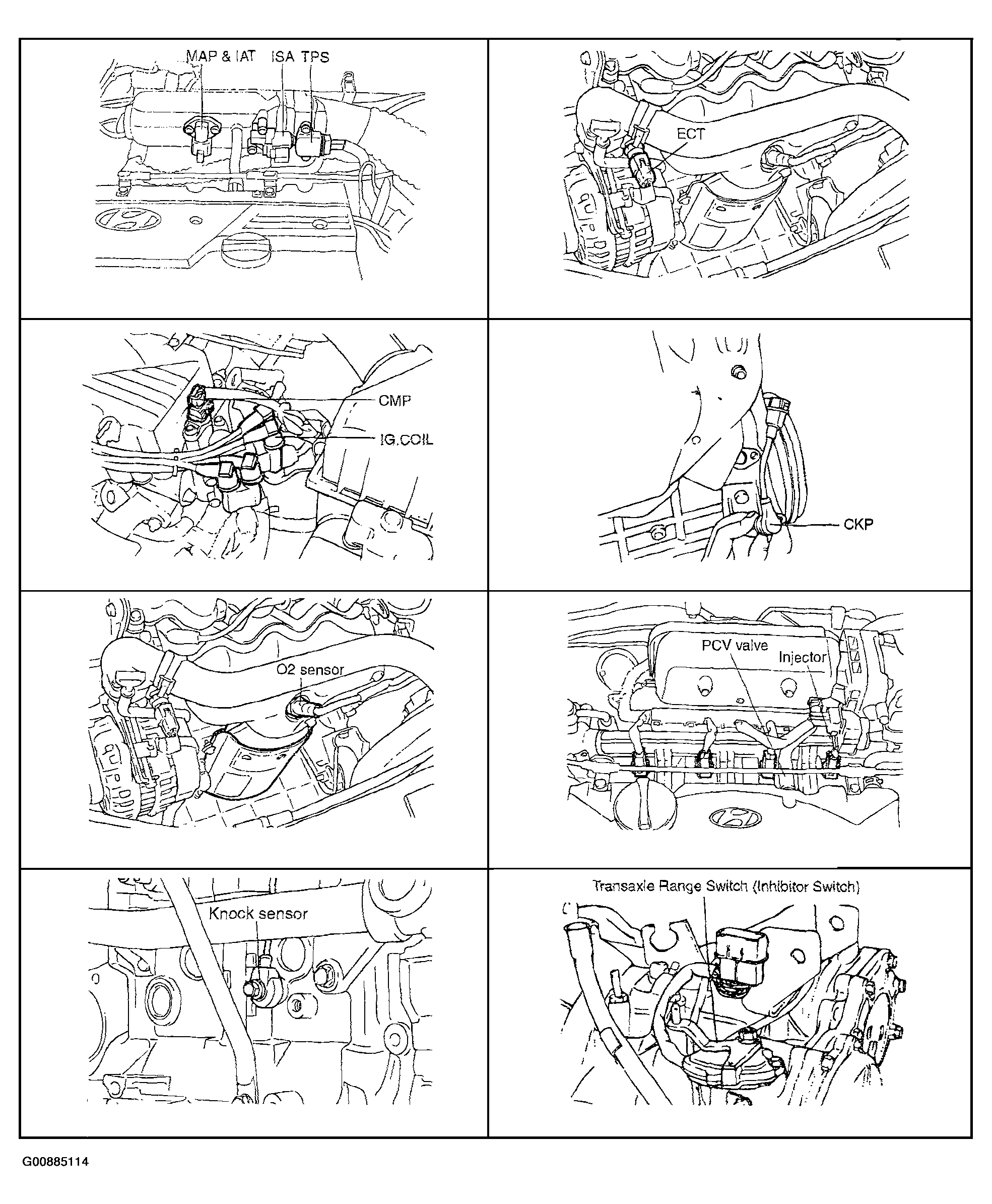

Fig 1: Locating Components (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

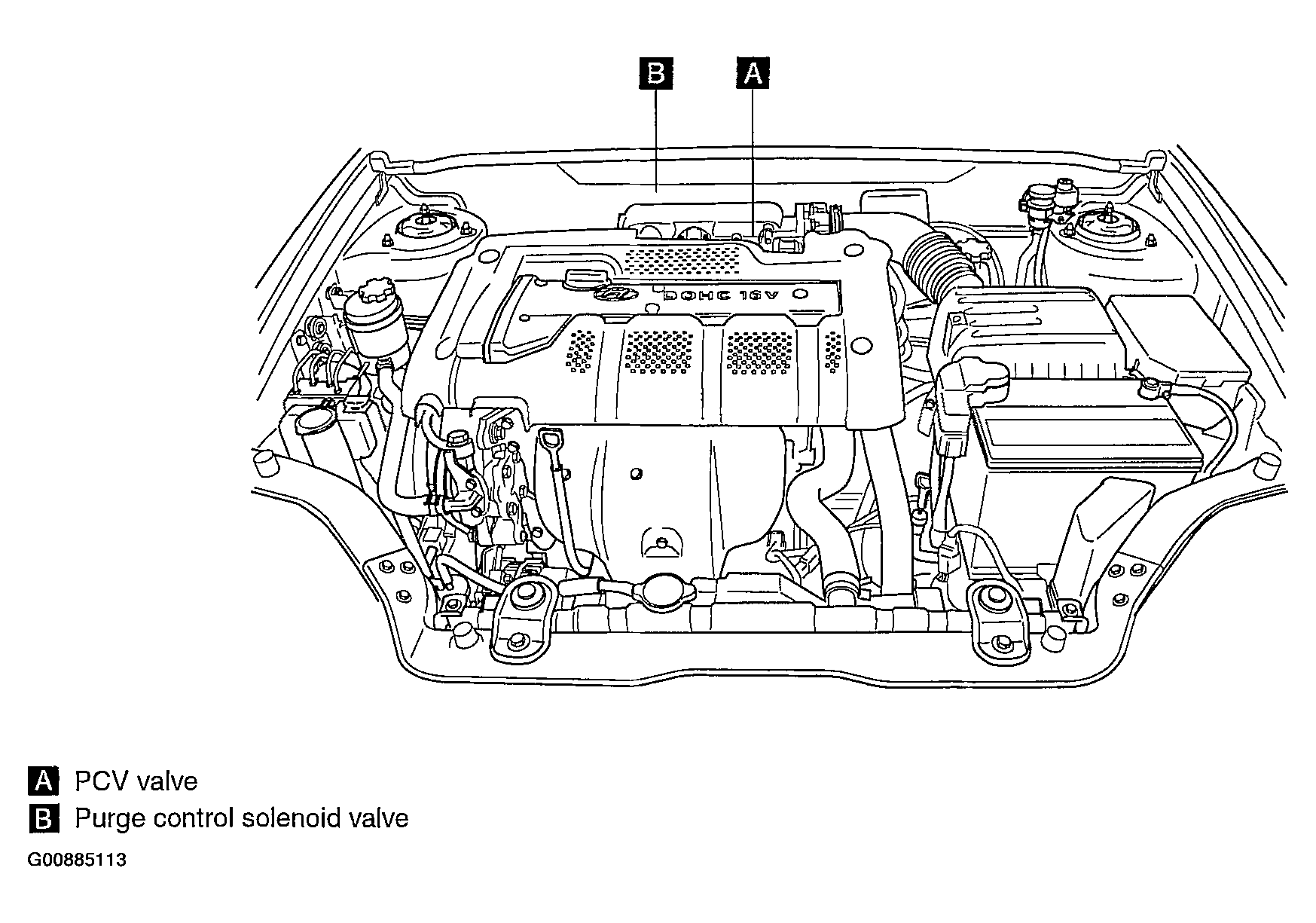

Fig 2: Locating Components (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

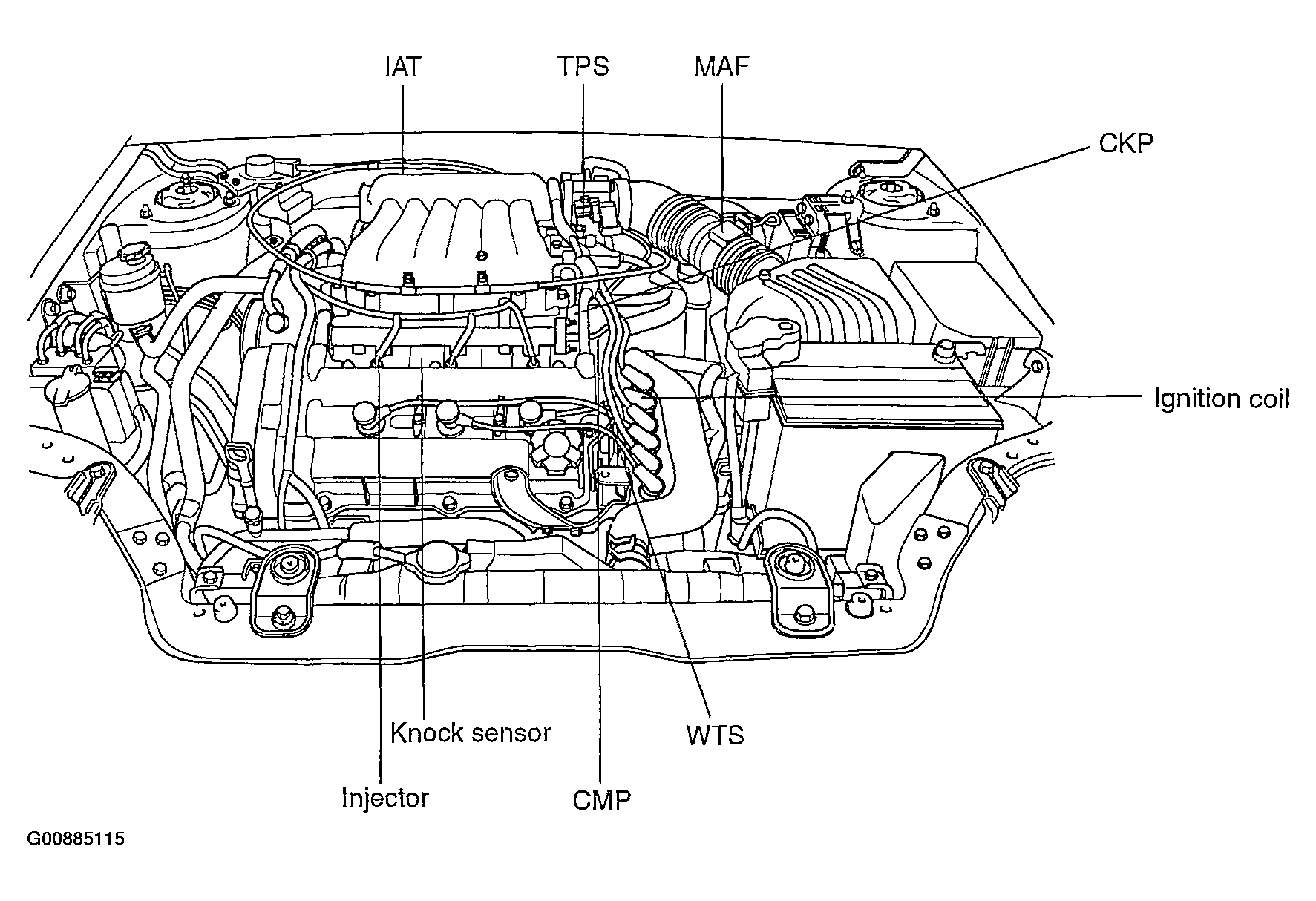

Fig 3: Locating Components (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

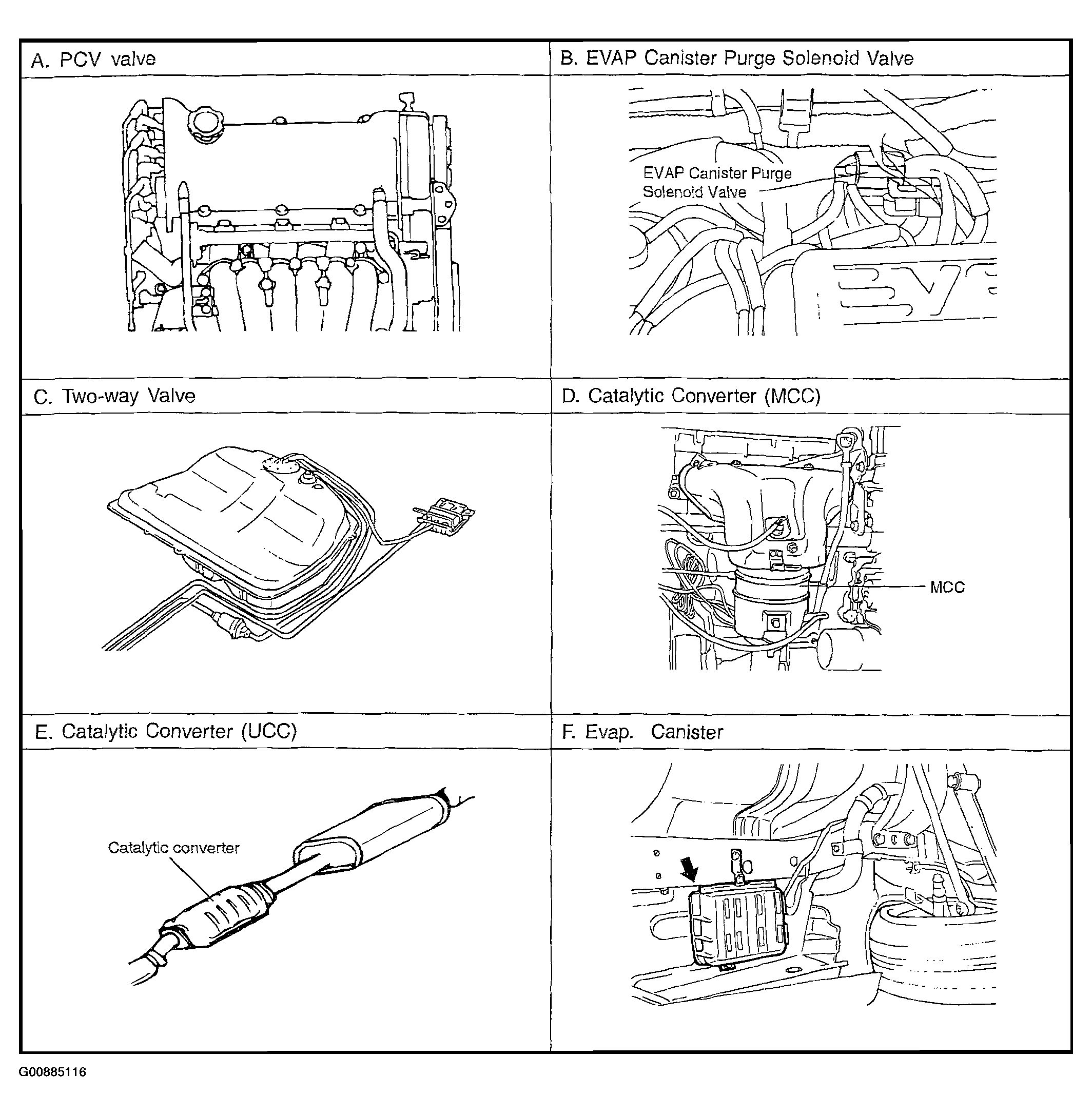

Fig 4: Locating Components (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
