Inspection Procedures
- CHECK OTS AND ECM CONNECTORS
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Are all connectors good?
Yes: Go to next
No: Repair or replace it.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- CHECK OTS RESISTANCE
- Turn ignition switch to OFF position.

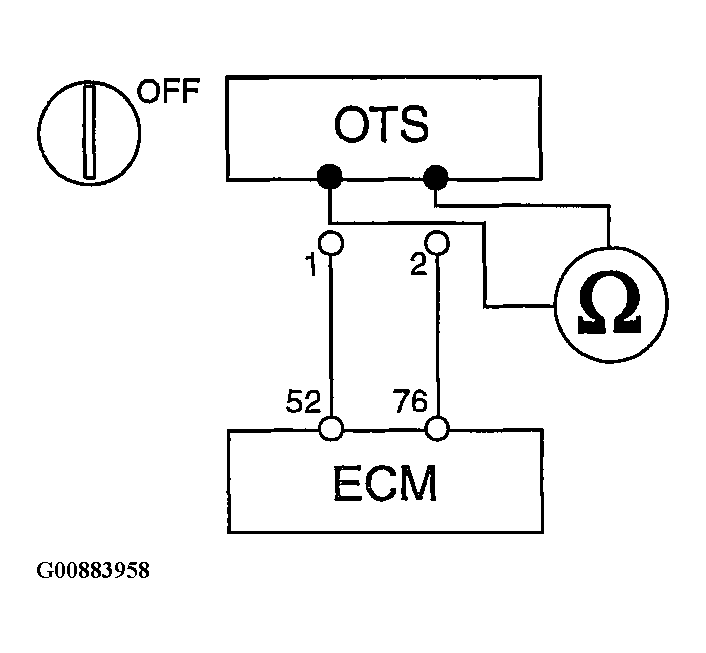

- Check resistance of OTS between terminals 1 and 2 of the OTS connector.
Courtesy of HYUNDAI MOTOR CO.
- Refer to SPECIFICATIONS
for more information.
Is resistance within specification?
Yes: Proceed with ECM PROBLEM PROCEDURE .
No: Replace OTS.
