Inspection Procedures

1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

Are all connectors good?

Yes: Go to next

No: Repair or replace it.

1. Turn ignition switch to OFF position and disconnect PCSV harness connector.
2. Measure resistance between terminals 1 and 2 of the PCSV.

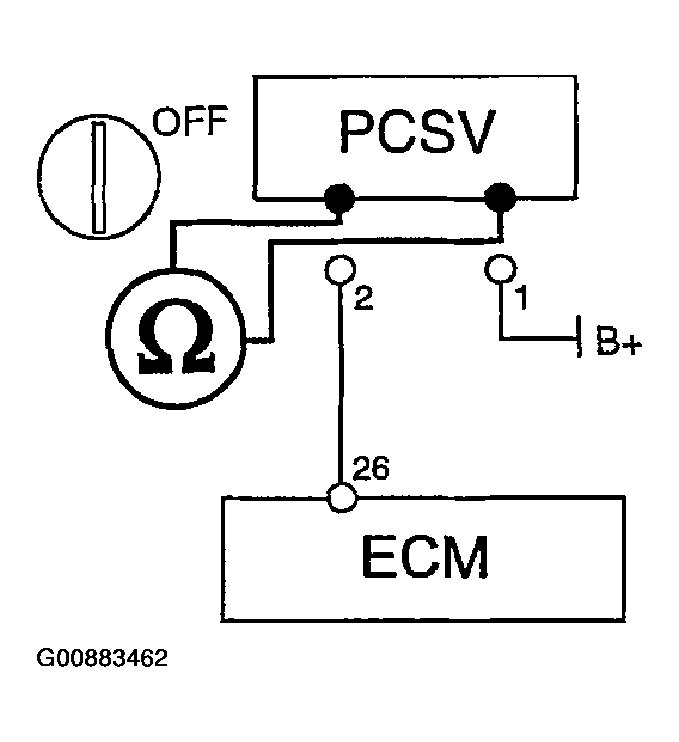

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of PCSV

Courtesy of HYUNDAI MOTOR CO.

• Refer to  Specifications   .
• Refer to  EVAPORATIVE (EVAP) CANISTER PURGE SOLENOID VALVE  of Evaporative emission control system.

Is the PCSV normal?

Yes: Go to next

No: Replace it.

1. Turn ignition switch to ON position.
2. Measure voltage between terminal 1 of the PCSV harness connector and chassis ground.

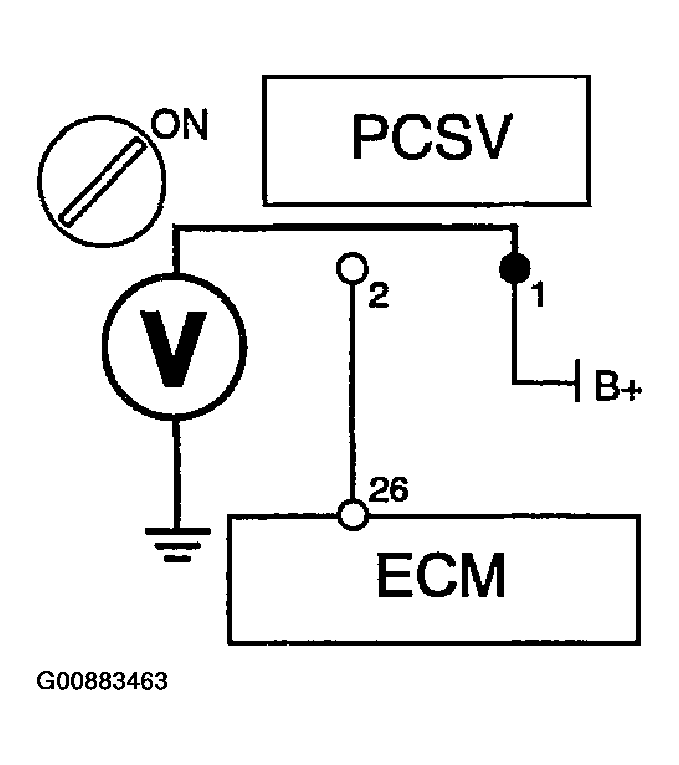

Fig 2: Measuring Voltage Between Terminal 1 Of PCSV Harness Connector & Chassis Ground

Courtesy of HYUNDAI MOTOR CO.

• Specification: approximately B+

Is voltage within specification?

Yes: Go to next

No: Repair open or short to chassis ground in harness.

1. Turn ignition switch to OFF position and disconnect the ECM connector.
2. Measure resistance between terminal 2 of the PCSV harness connector and chassis ground.

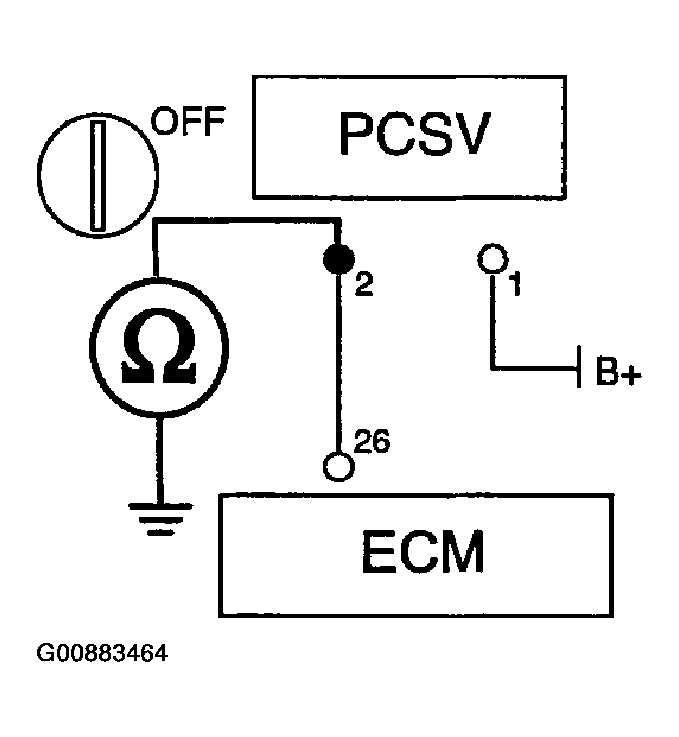

Fig 3: Measuring Resistance Between Terminal 2 Of PCSV Harness Connector & Chassis Ground

Courtesy of HYUNDAI MOTOR CO.

• Specification: infinite

Does each resistance indicate open?

Yes: Go to next

No: Repair short or short to chassis ground in harness.

1. Turn ignition switch to ON position.
2. Measure voltage between terminal 2 of the PCSV harness connector and chassis ground.

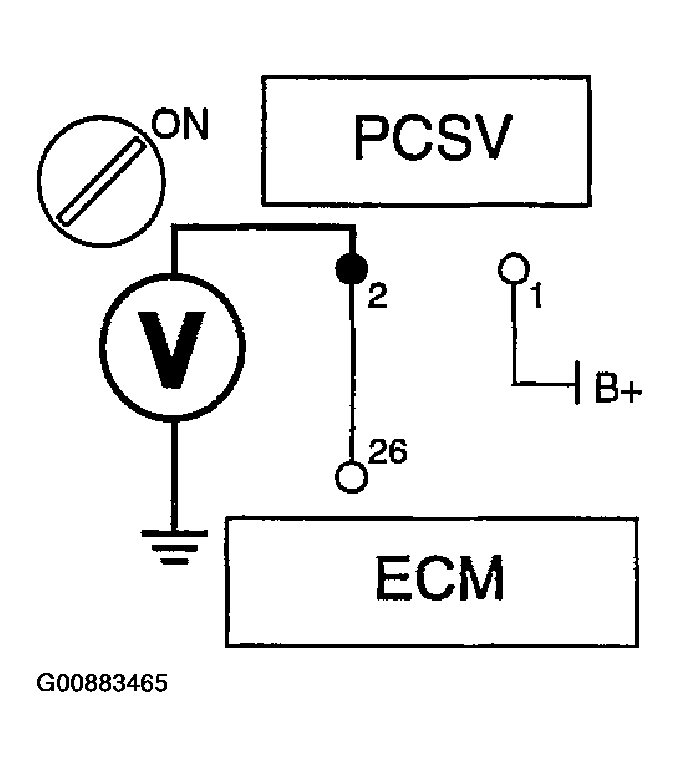

Fig 4: Measuring Voltage Between Terminal 2 Of PCSV Harness Connector & Chassis Ground

Courtesy of HYUNDAI MOTOR CO.

• Specification: below 0.5V

Is voltage within specification?

Yes: Proceed with ECM PROBLEM PROCEDURE  .

No: Repair short to power in harness.
