Inspection Procedures

CHECK CCV FOR CONNECTOR CONDITION
1. Thoroughly check the CCV for loose, bent, corroded, contaminated, deteriorated or damaged connectors.
  Is any problem present?
No: Go to next

Yes: Repair or replace it.
CHECK CCV RESISTANCE
1. Turn ignition switch to OFF position and disconnect the CCV harness connector.
2. Measure resistance between terminals 1 and 2 of the CCV connector

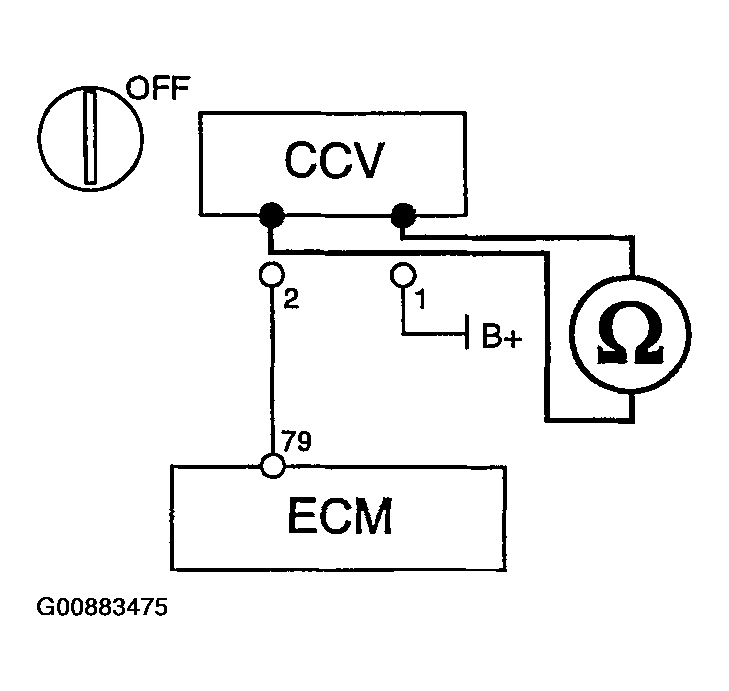

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of CCV Connector
Courtesy of HYUNDAI MOTOR CO.
- ^*Specification: 23~26ohm at 20°C (68°F)
  Is resistance within specification?
Yes: Go to next

No: Replace it.
CHECK POWER TO CCV
1. Turn ignition switch to OFF position.
2. Turn ignition switch to ON position and measure the voltage between terminal 1 of the CCV harness connector and chassis ground.

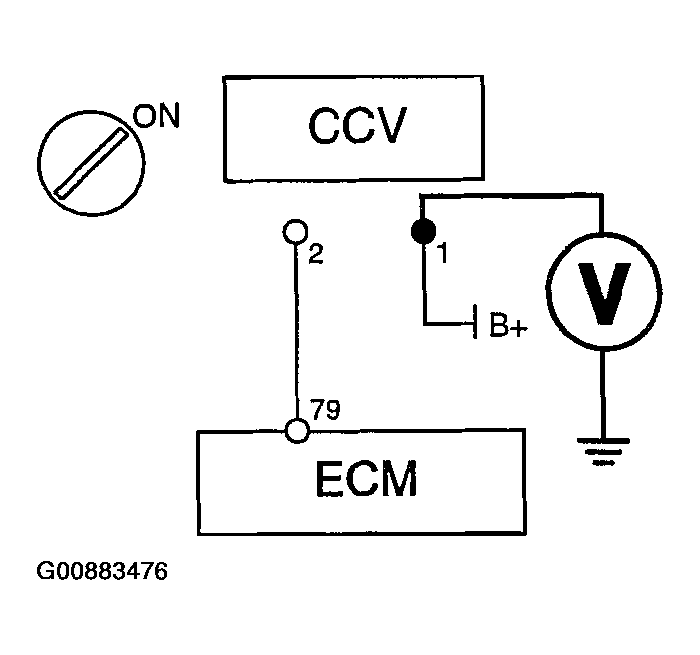

Fig 2: Measuring Voltage Between Terminal 1 Of CCV Harness Connector & Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
- Specification: approximately B+
  Is voltage within specification?
Yes: Go to next

No: Repair short to chassis ground in harness.
CHECK FOR SHORT TO GROUND IN HARNESS
1. Turn ignition switch to OFF position.
2. Measure resistance between terminal 2 of the CCV harness connector and chassis ground.
3. Measure resistance between terminals 1 and 2 of the CCV harness connector.

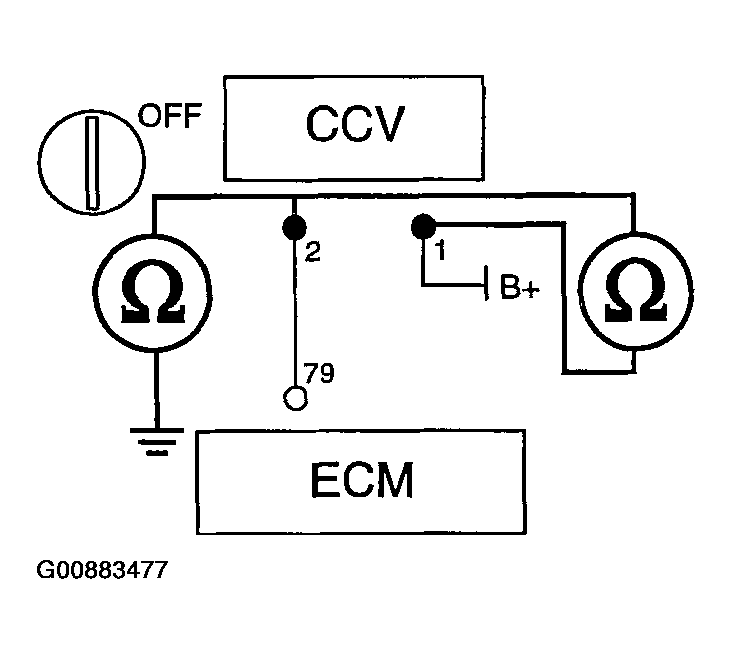

Fig 3: Measuring Resistance Between Terminals 1 & 2 Of CCV Harness Connector
Courtesy of HYUNDAI MOTOR CO.
- Specification: infinite
  Does each resistance indicate open?
Yes: Go to next

No: Repair short to chassis ground in harness.
CHECK FOR SHORT TO POWER IN HARNESS
1. Turn ignition switch to ON position.
2. Measure voltage between terminal 2 of the CCV harness connector and chassis ground.

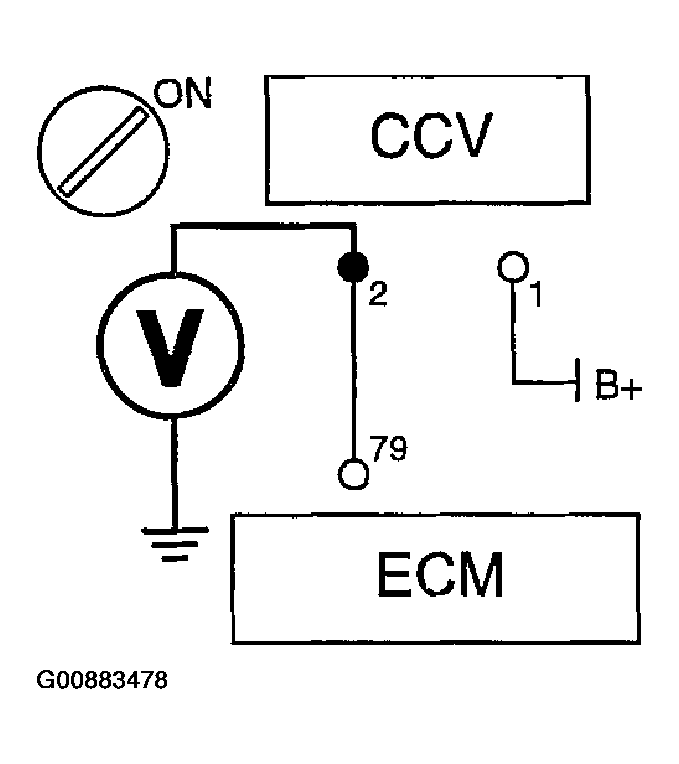

Fig 4: Measuring Voltage Between Terminal 2 Of CCV Harness Connector & Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
- Specification: below 0.5V
  Is voltage within specification?
Yes: Proceed with ECM PROBLEM PROCEDURE .

No: Repair short to power in harness.
