Procedure To Install The Lock Cam

WARNING: This page is about a different variant/trim than selected.

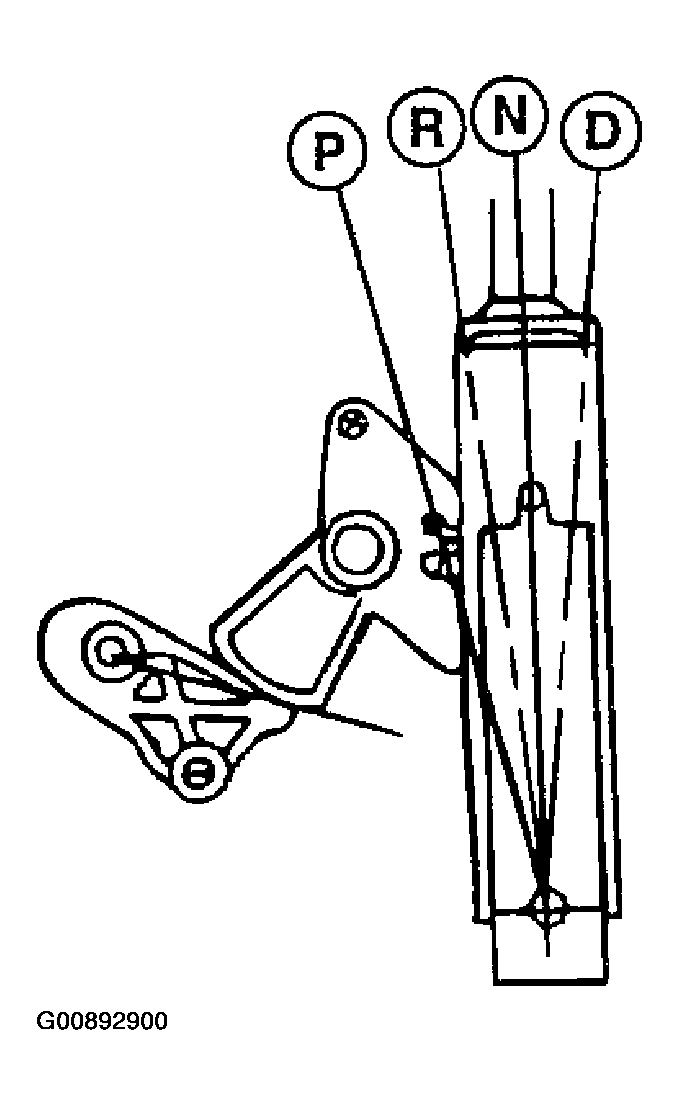

Fig 1: Identifying Lock Cam

Courtesy of HYUNDAI MOTOR CO.

Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in the figure.
1. Check that the key lock cam is located at "B" by the detent pin.
2. Check that the shift lock cam is located at "A".

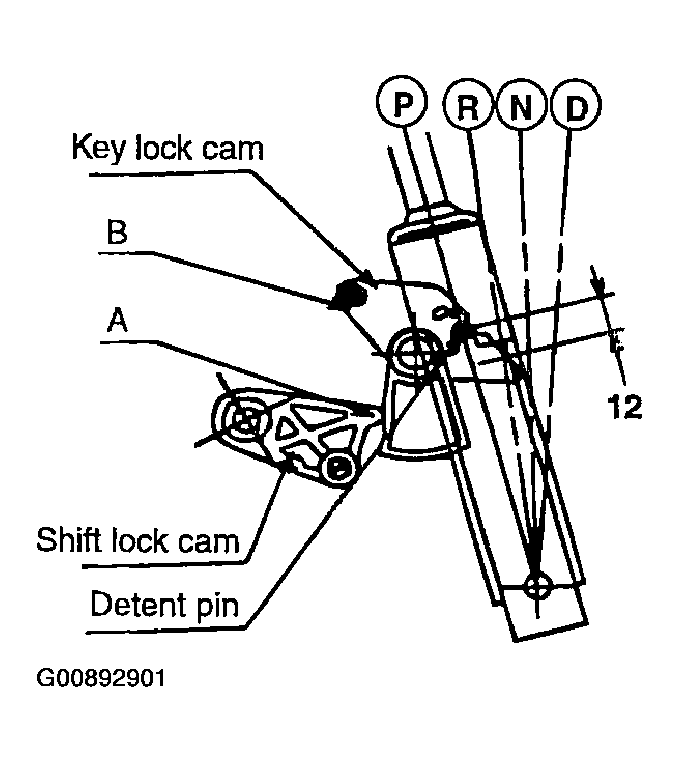

Fig 2: Identifying Shift Lock Cam Positions
Courtesy of HYUNDAI MOTOR CO.
Check that the key cylinder is at "LOCK".
