Automatic Transaxle Shift Control: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the push button, the spring and the cap.

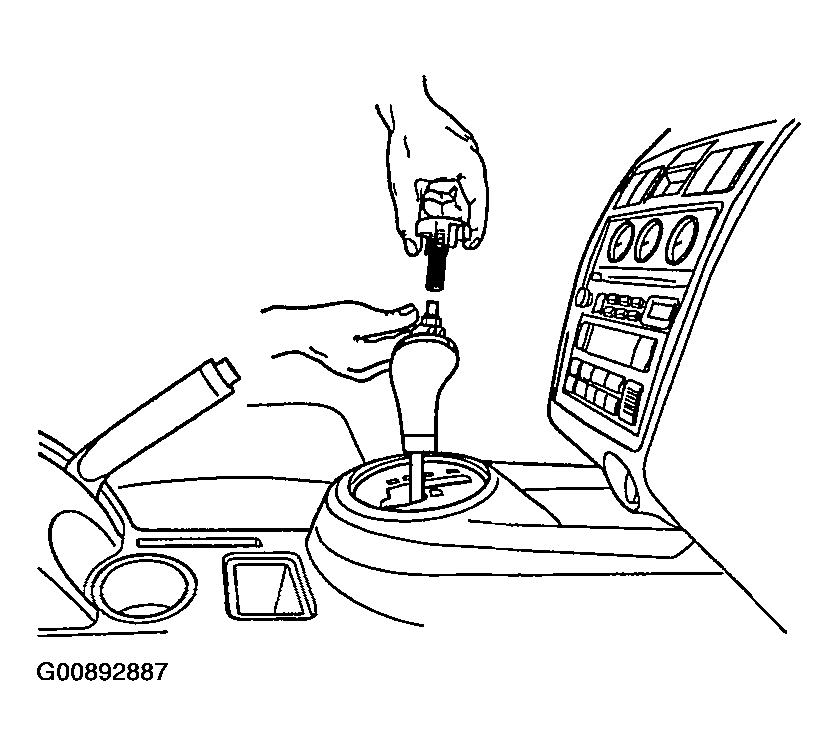

Fig 1: Removing Push Button, Spring & Cap
Courtesy of HYUNDAI MOTOR CO.
Remove the knob mounting nut.

Fig 2: Removing Knob Mounting Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the shift knob.

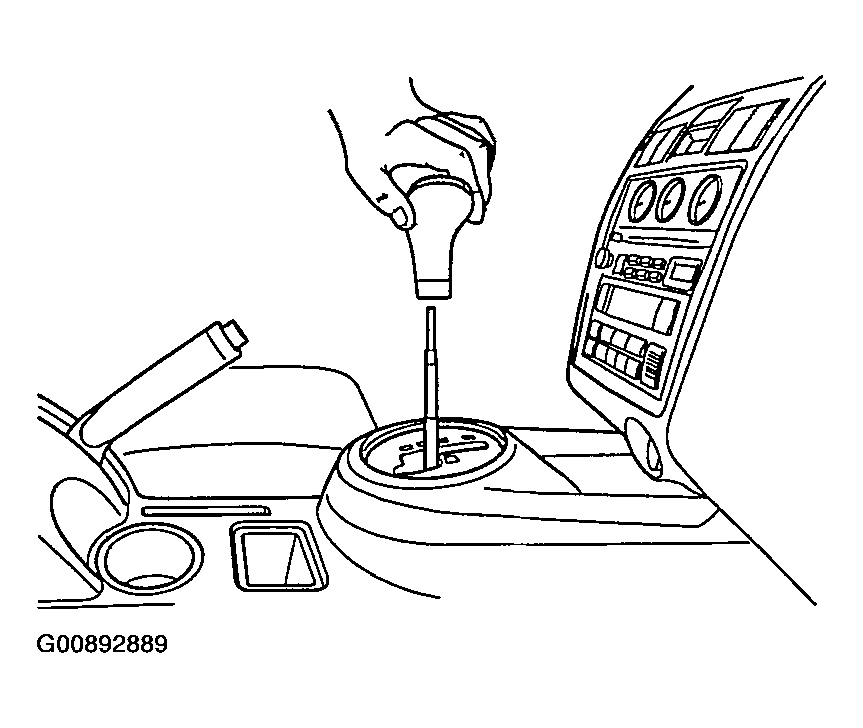

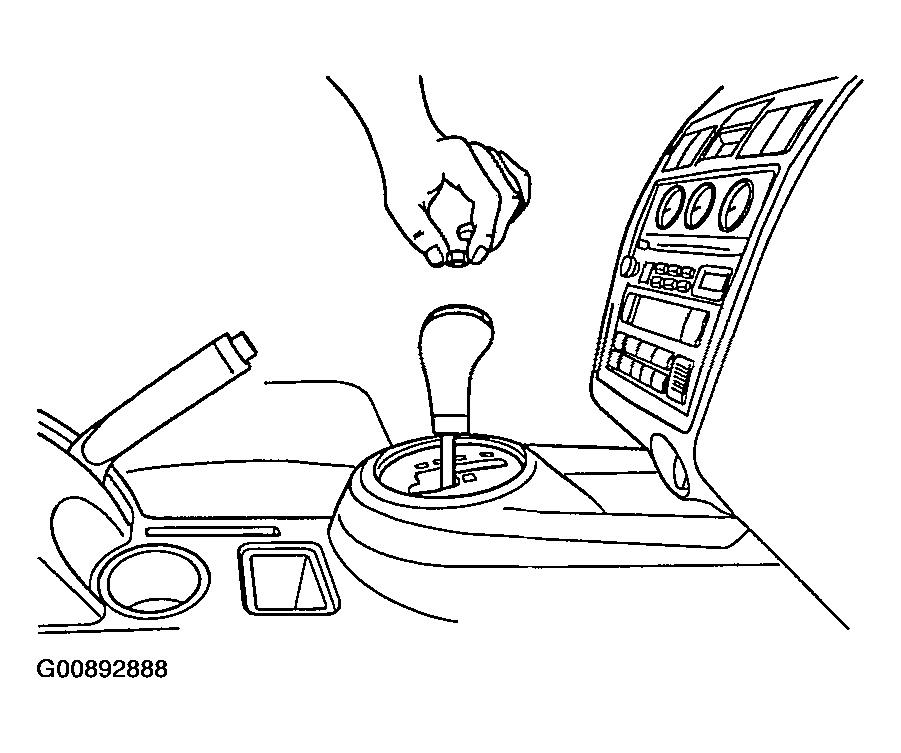

Fig 3: Removing Shift Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the console upper cover.
Remove the console assembly.

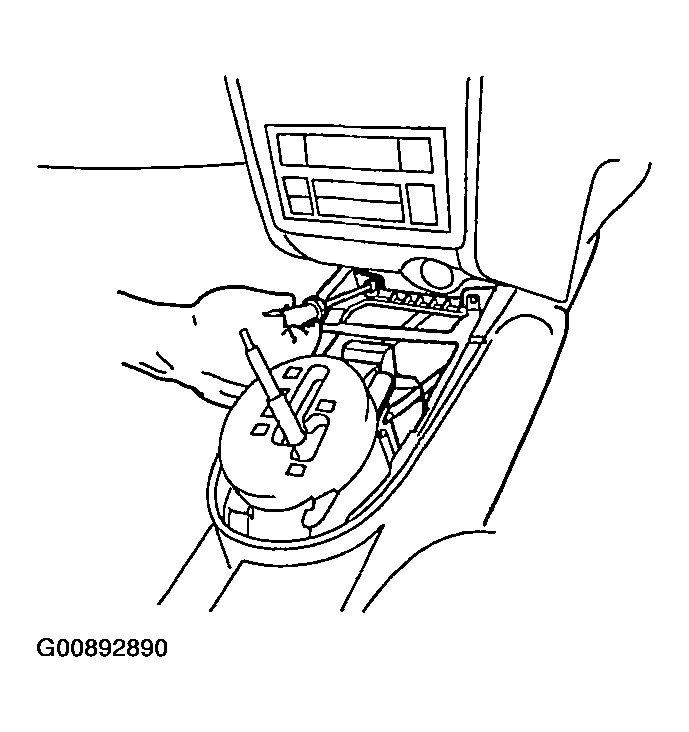

Fig 4: Removing Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the indicator panel.

Fig 5: Removing Indicator Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the indicator lower cover.

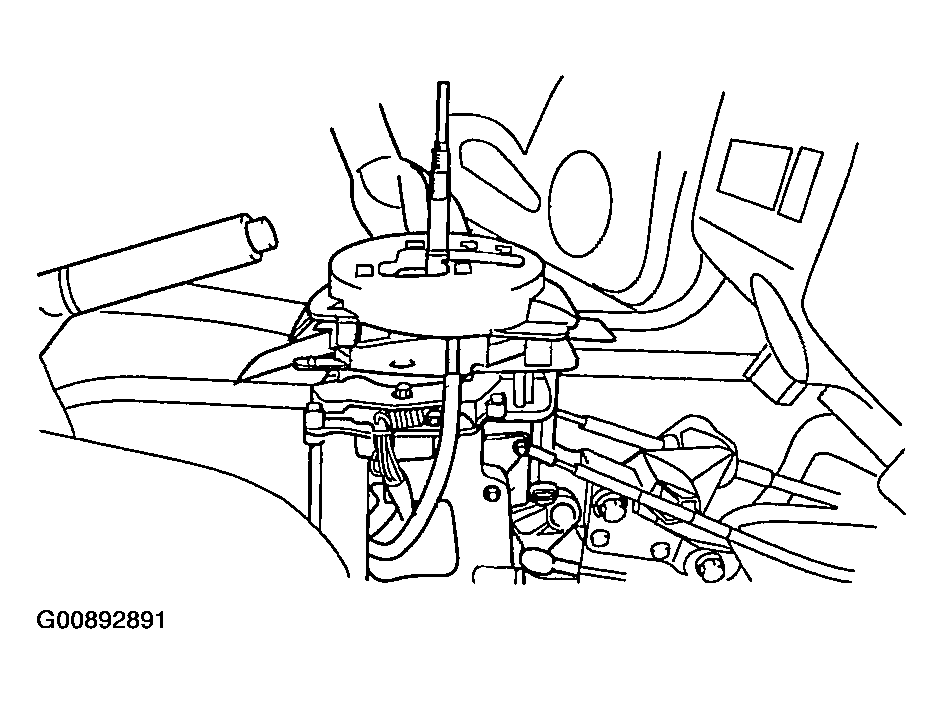

Fig 6: Removing Indicator Lower Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the indicator plate.

Fig 7: Removing Indicator Plate
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock cable nut.

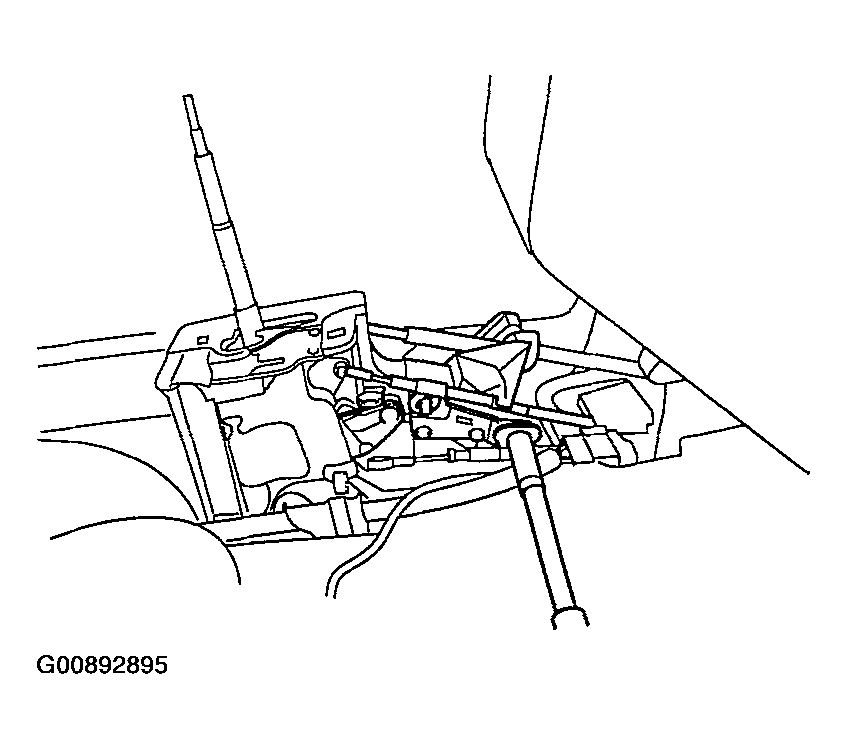

Fig 8: Removing Key Lock Cable Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lock cable nut.

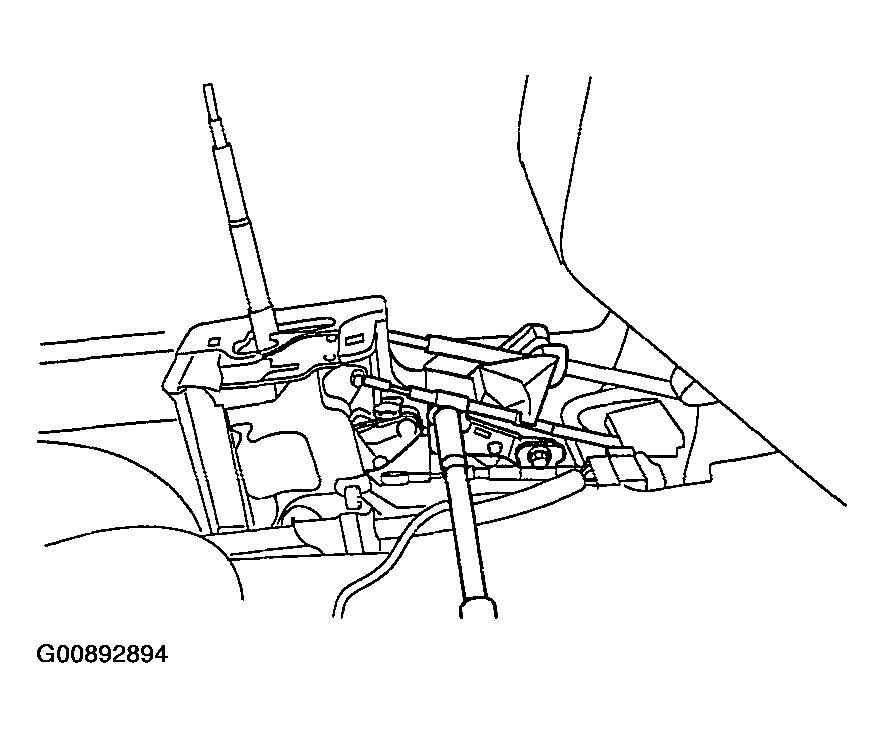

Fig 9: Removing Shift Lock Cable Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable snap pin.

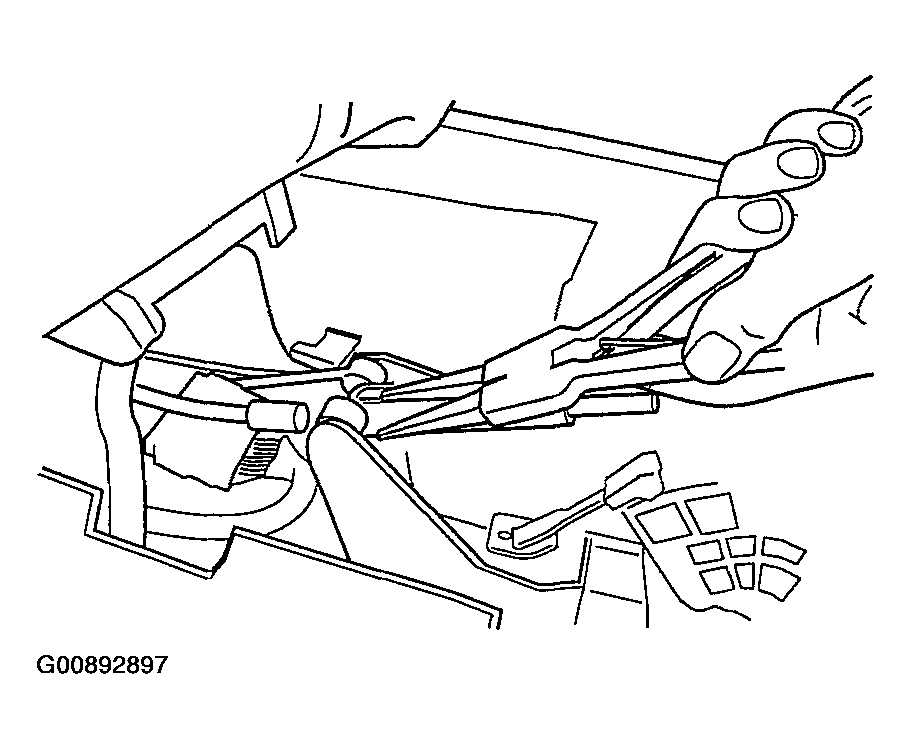

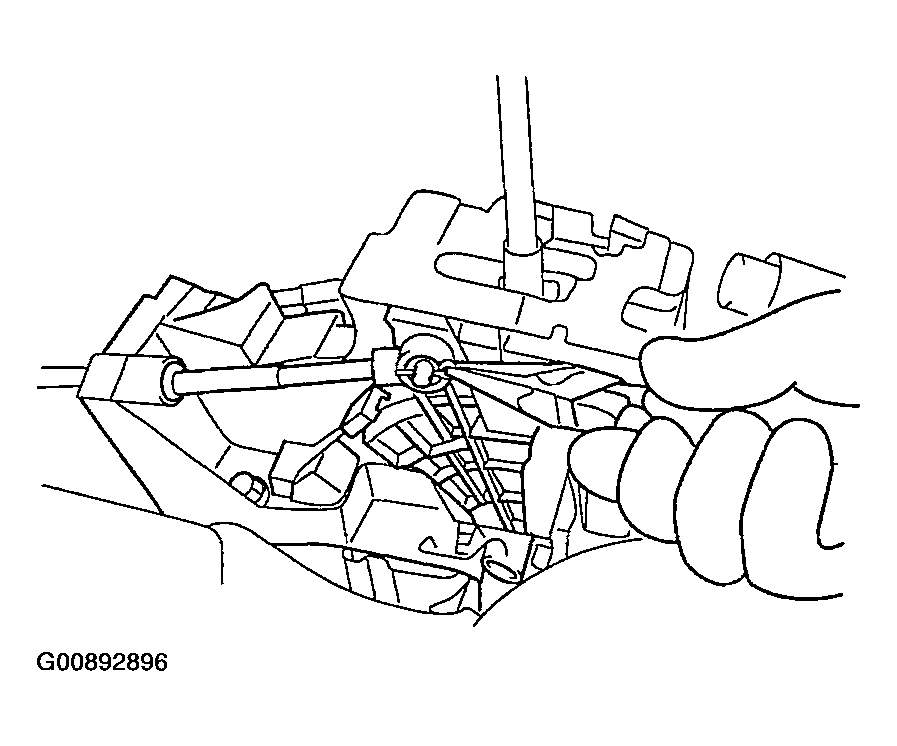

Fig 10: Removing Control Cable Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable clip and the control cable.

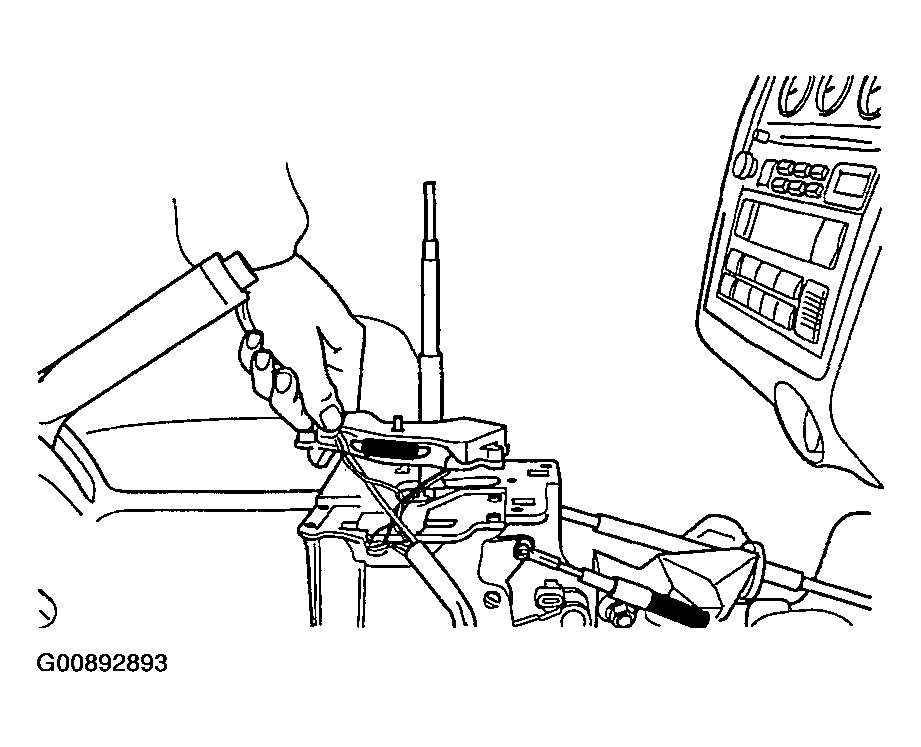

Fig 11: Removing Control Cable Clip & Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever bracket bolt.

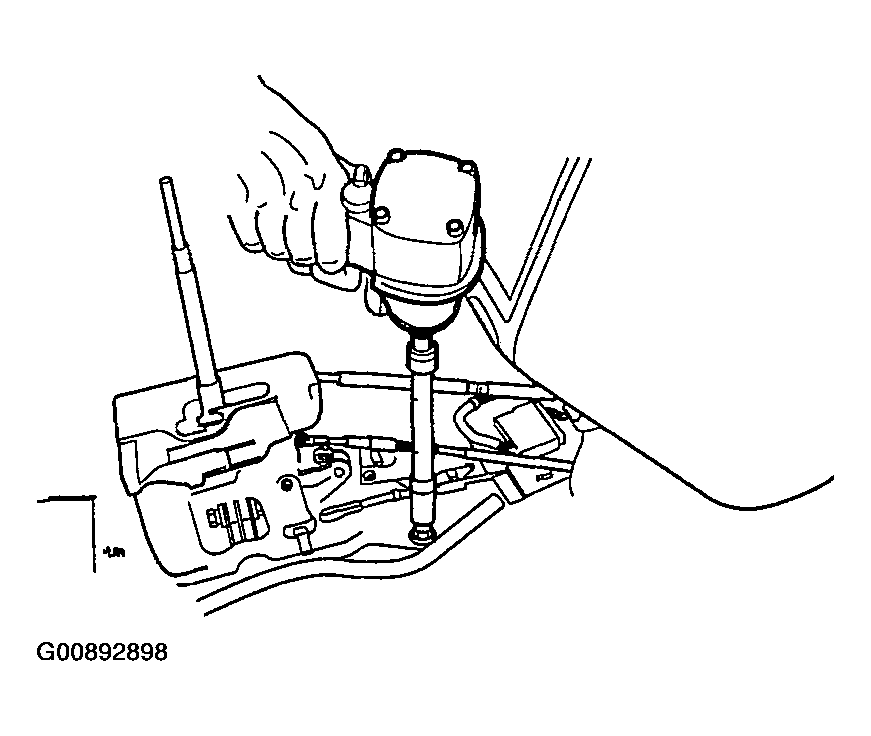

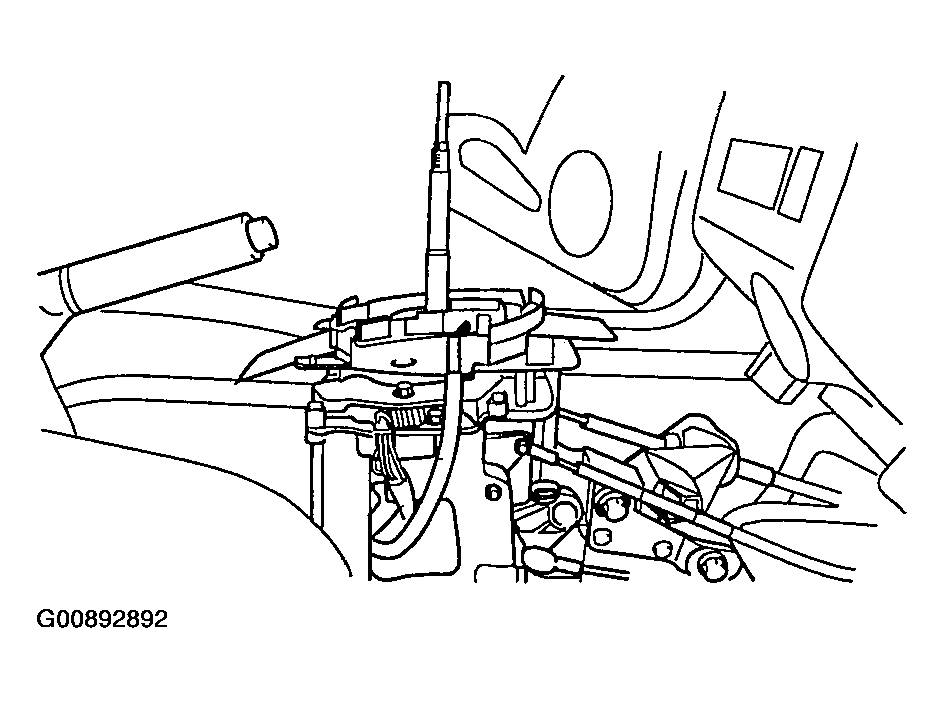

Fig 12: Removing Shift Lever Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever.

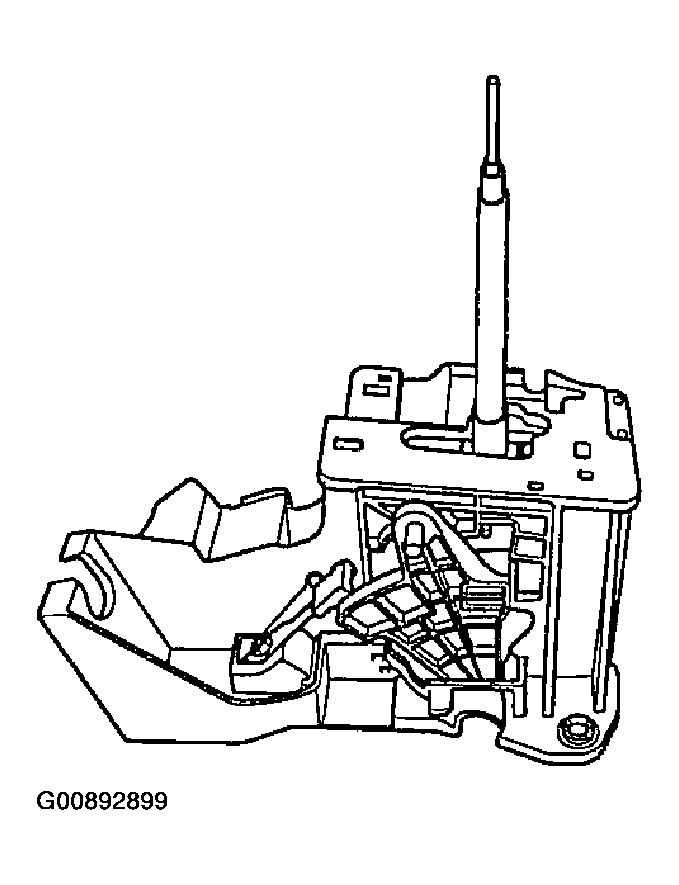

Fig 13: Removing Shift Lever

Courtesy of HYUNDAI MOTOR CO.
