Automatic Transaxle: Components

WARNING: This page is about a different variant/trim than selected.

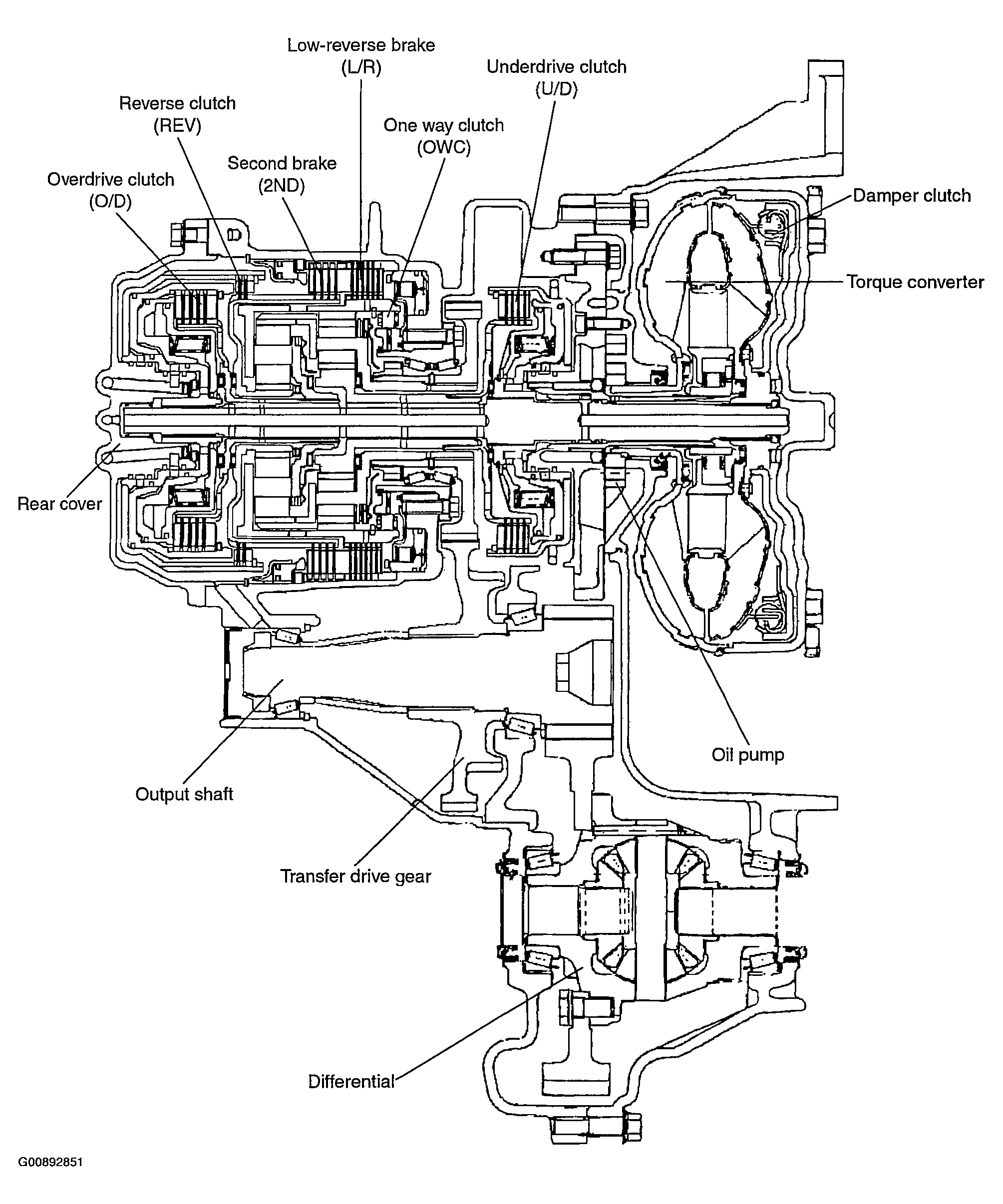

Fig 1: Locating Automatic Transaxle Components
G00892851Courtesy of HYUNDAI MOTOR CO.
