P0715: Input Shaft Speed Sensor System (Pulse Generator "A")

WARNING: This page is about a different variant/trim than selected.

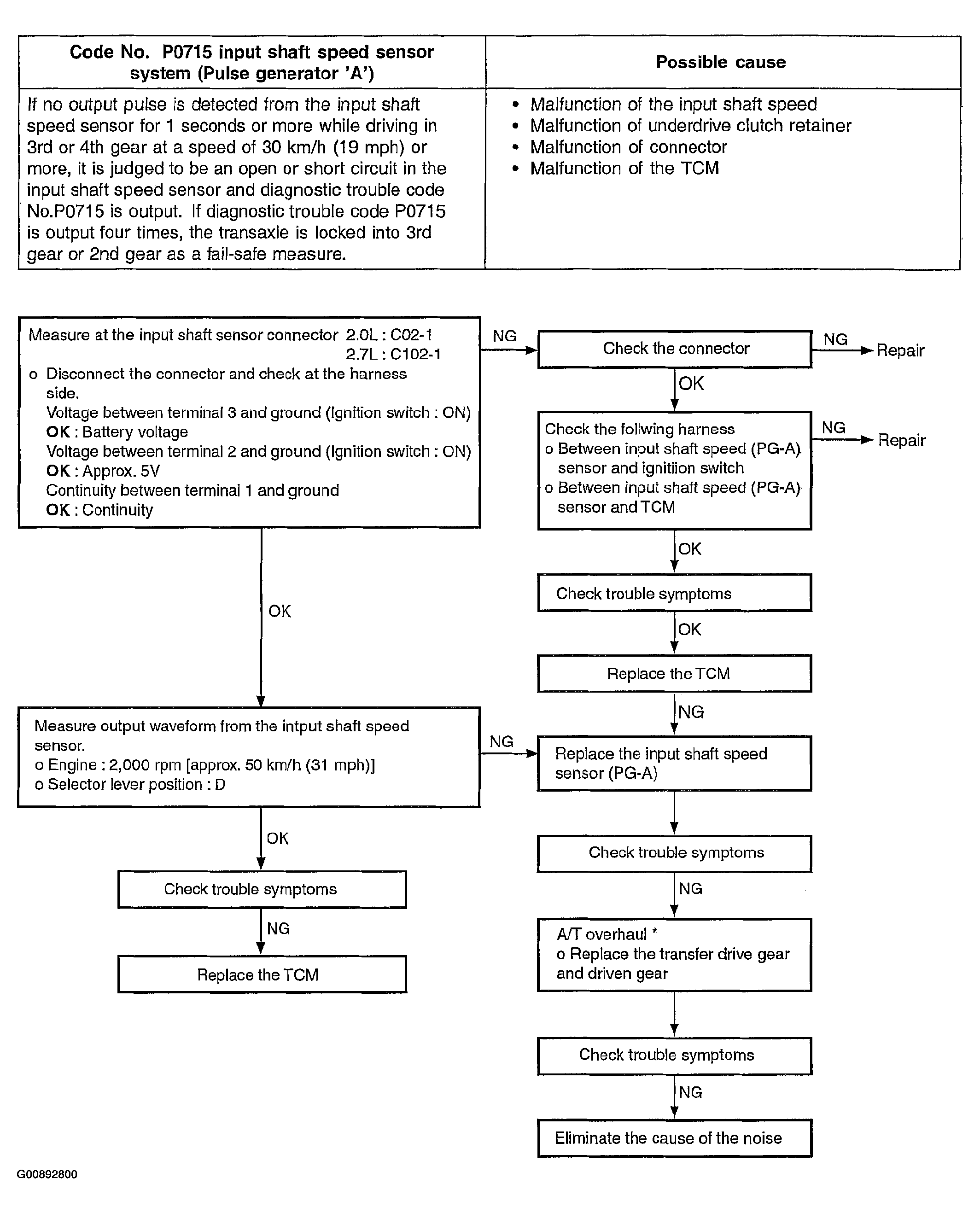

Fig 1: P0715: Input Shaft Speed Sensor System (Pulse Generator "A" - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

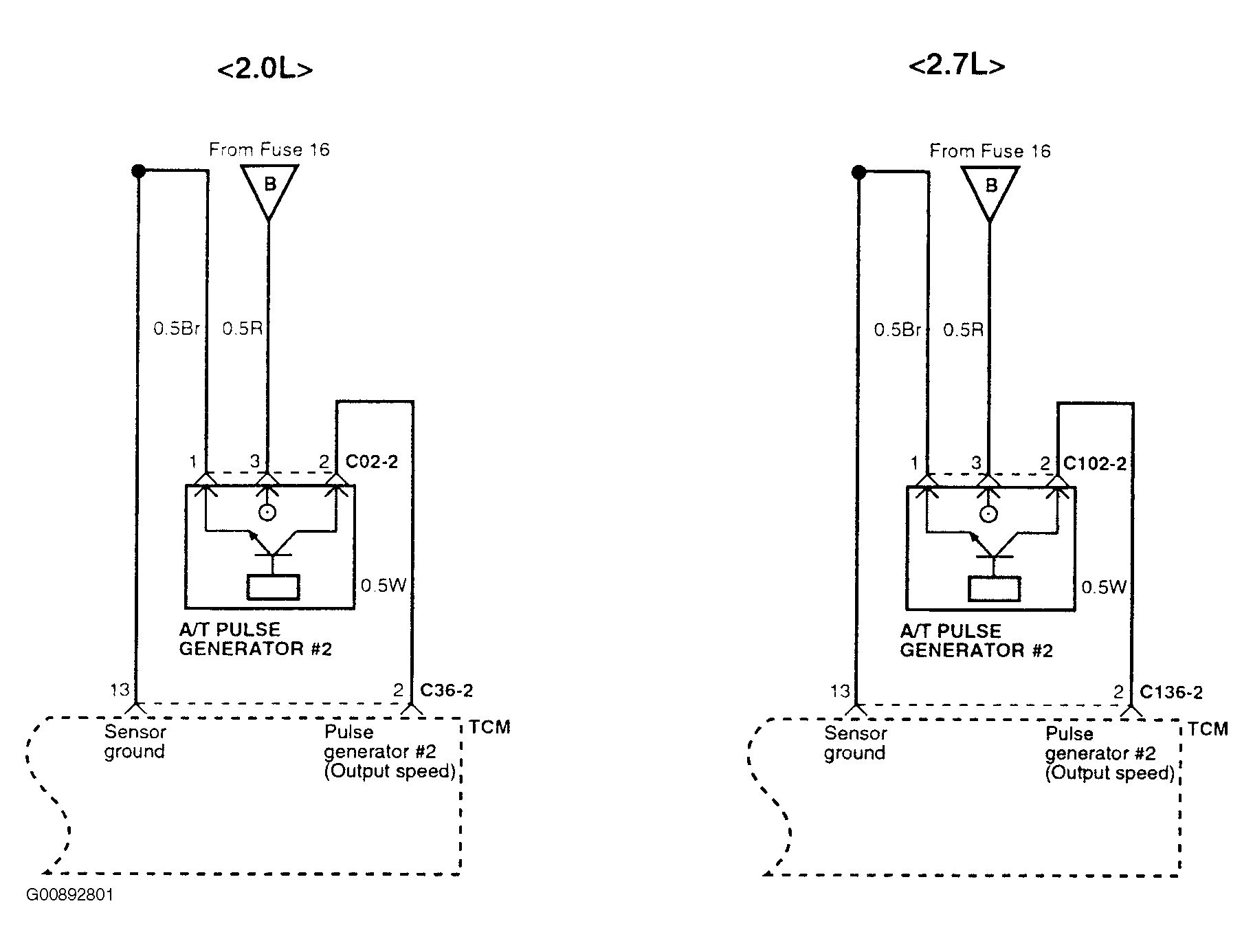

Fig 2: P0715: Input Shaft Speed Sensor System (Pulse Generator "A" - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
