P0720: Output Shaft Sensor System (Pulse Generator "B")
WARNING:
This page is about a different variant/trim than selected.

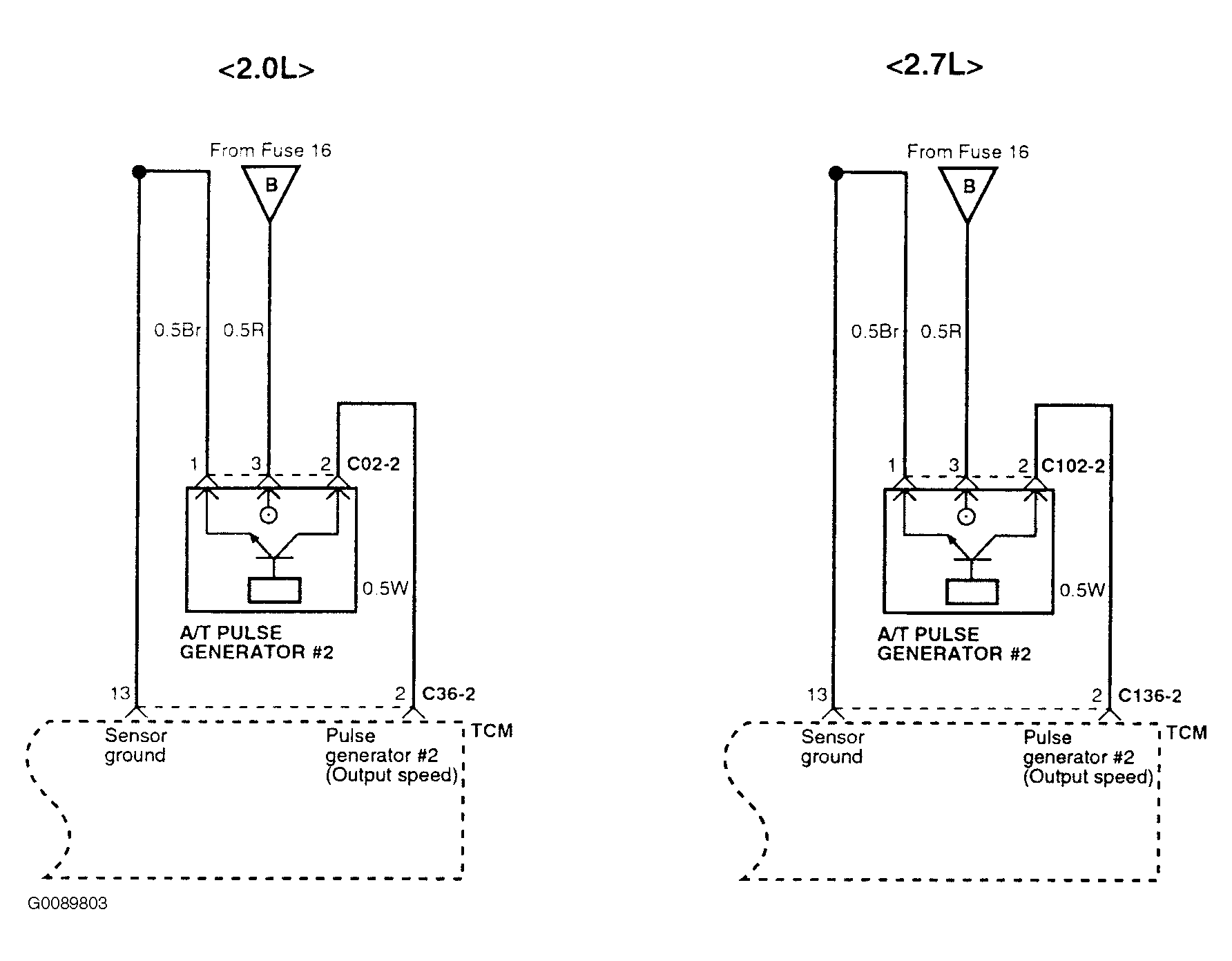

Fig 1: P0720: Output Shaft Sensor System (Pulse Generator "B" - 1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

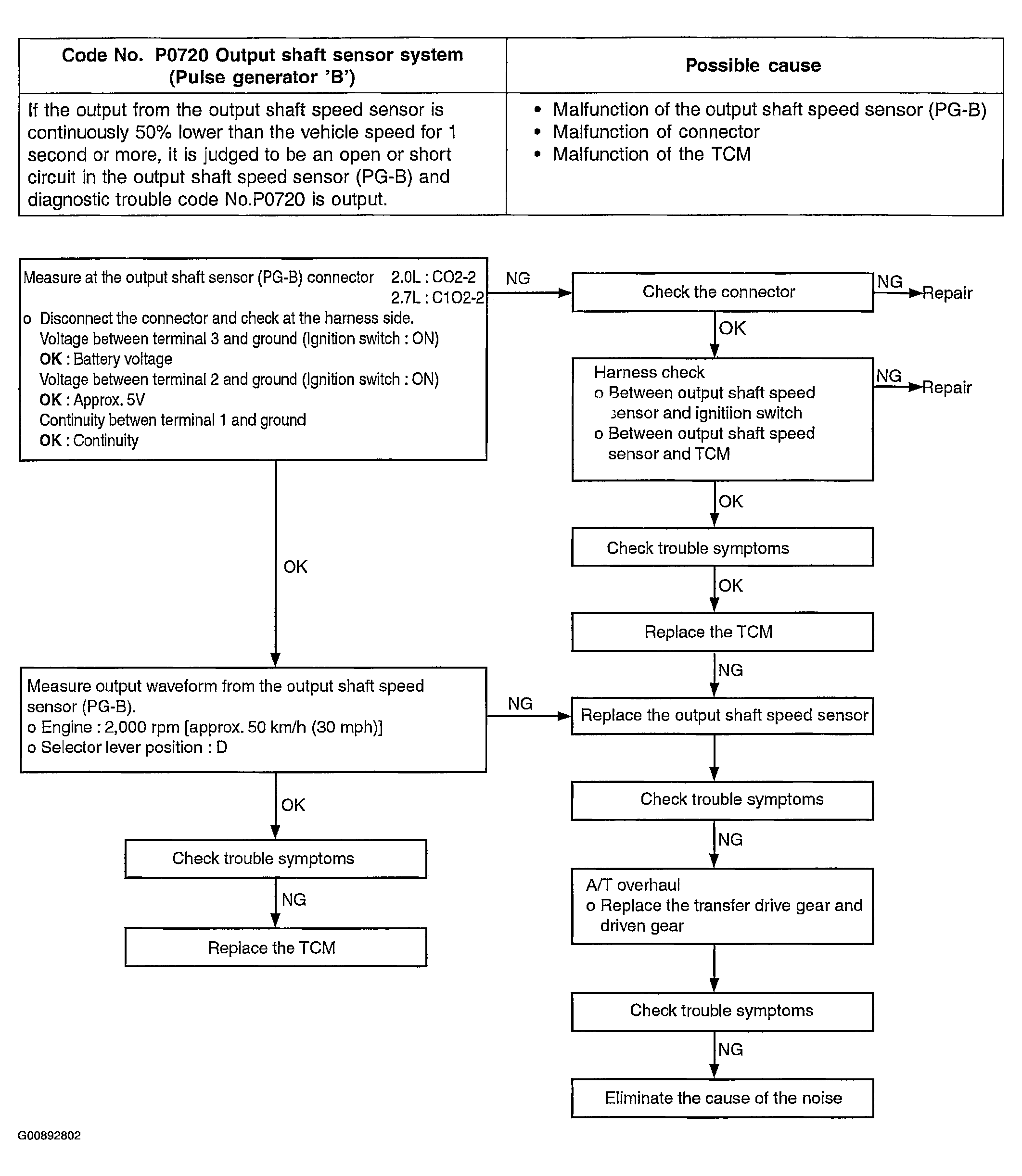

Fig 2: P0720: Output Shaft Sensor System (Pulse Generator "B" - 2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
