Identification Of Thrust Bearing, Thrust Races, And Thrust Washers

WARNING: This page is about a different variant/trim than selected.

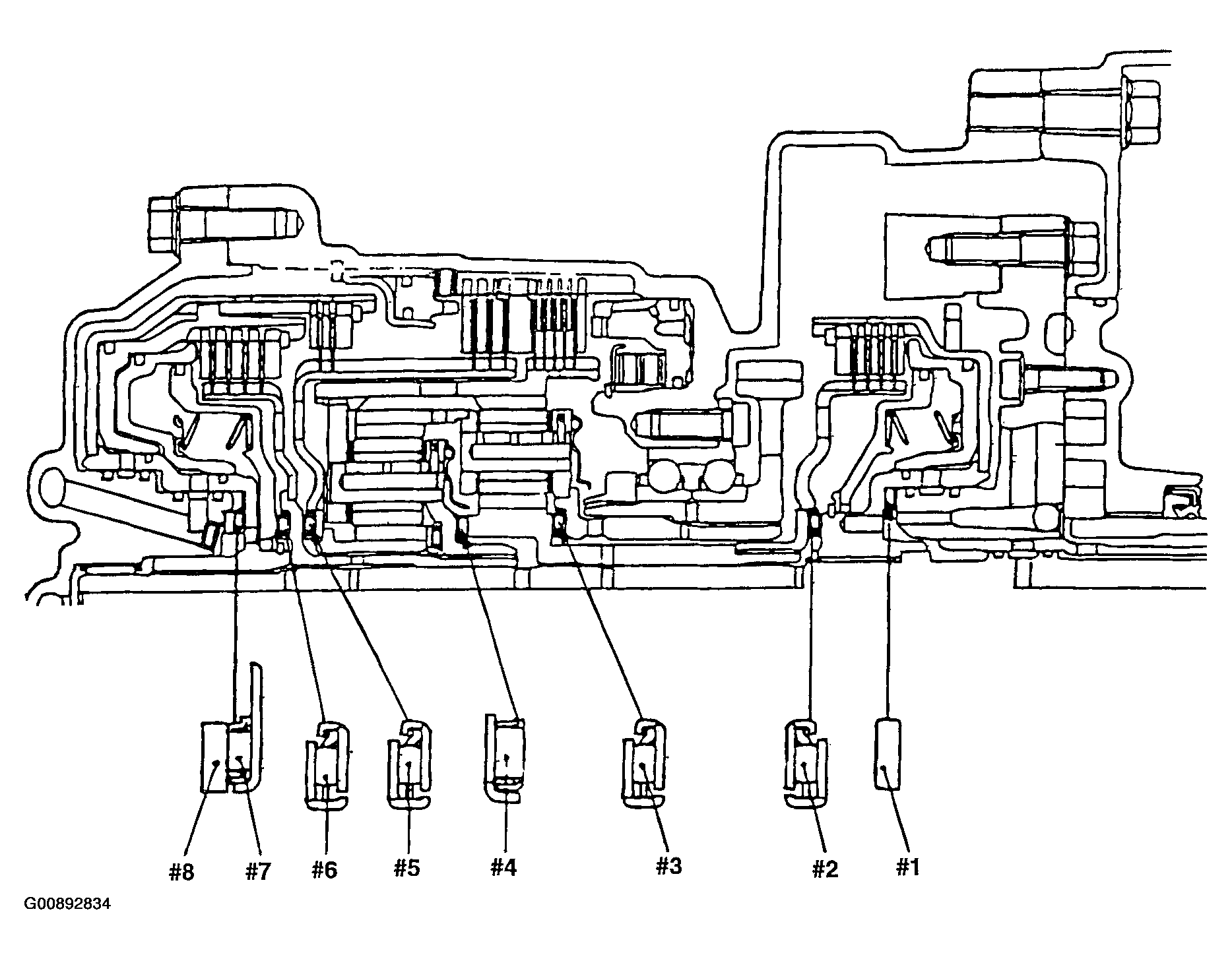

Fig 1: Identification Of Thrust Bearing, Thrust Races & Thrust Washers (1 Of 2)
G00892834Courtesy of HYUNDAI MOTOR CO.

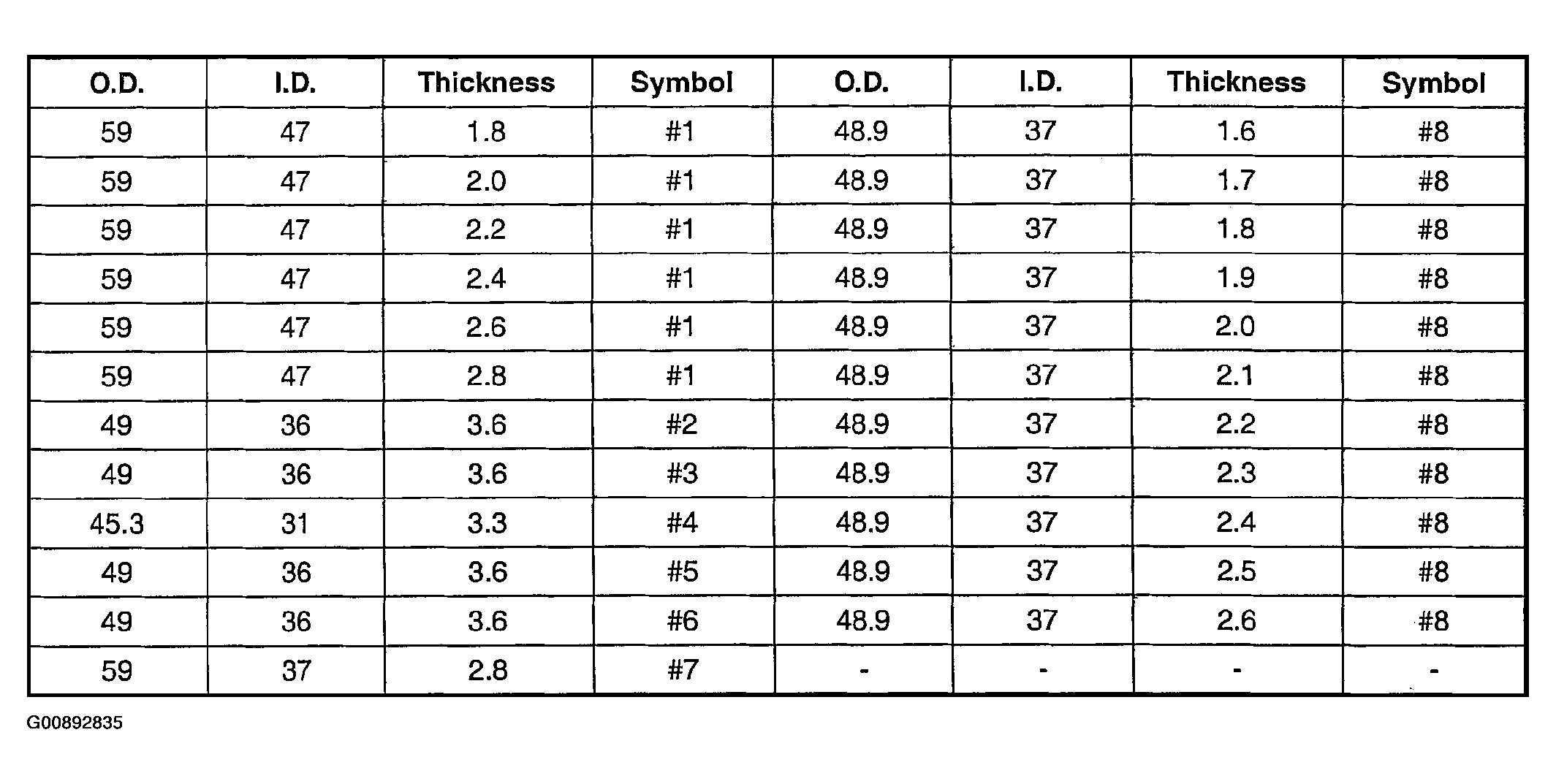

Fig 2: Identification Of Thrust Bearing, Thrust Races & Thrust Washers (2 Of 2)
G00892835Courtesy of HYUNDAI MOTOR CO.
