Low-Reverse Brake End Play Adjustment

Reverse the transmission and install a dial gauge. Move the special tool up and down to measure the end play.

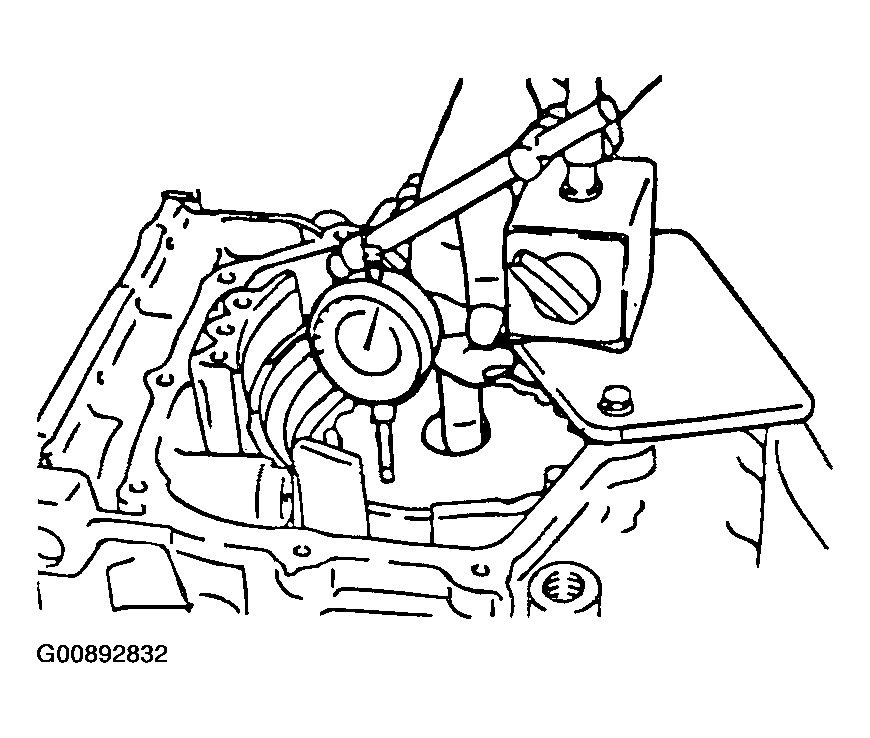

Fig 1: Adjusting Low-Reverse Brake End Play (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Standard value : 1.35 ~ 1.81mm

Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool - 1.81] to [A (moving amount) + thickness of the special tool - 1.35].

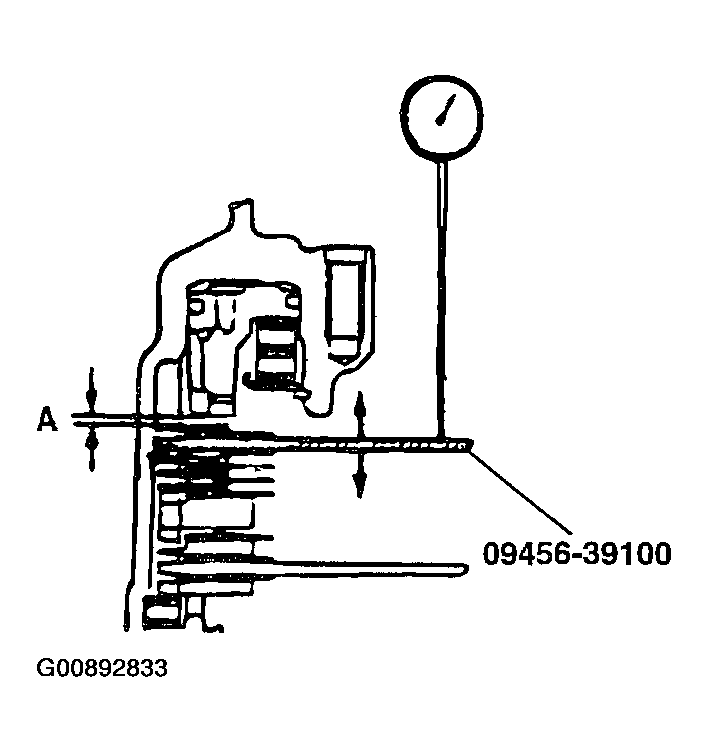

Fig 2: Adjusting Low-Reverse Brake End Play (2 Of 2)
