Diagnostic Trouble Code Description

WARNING: This page is about a different variant/trim than selected.

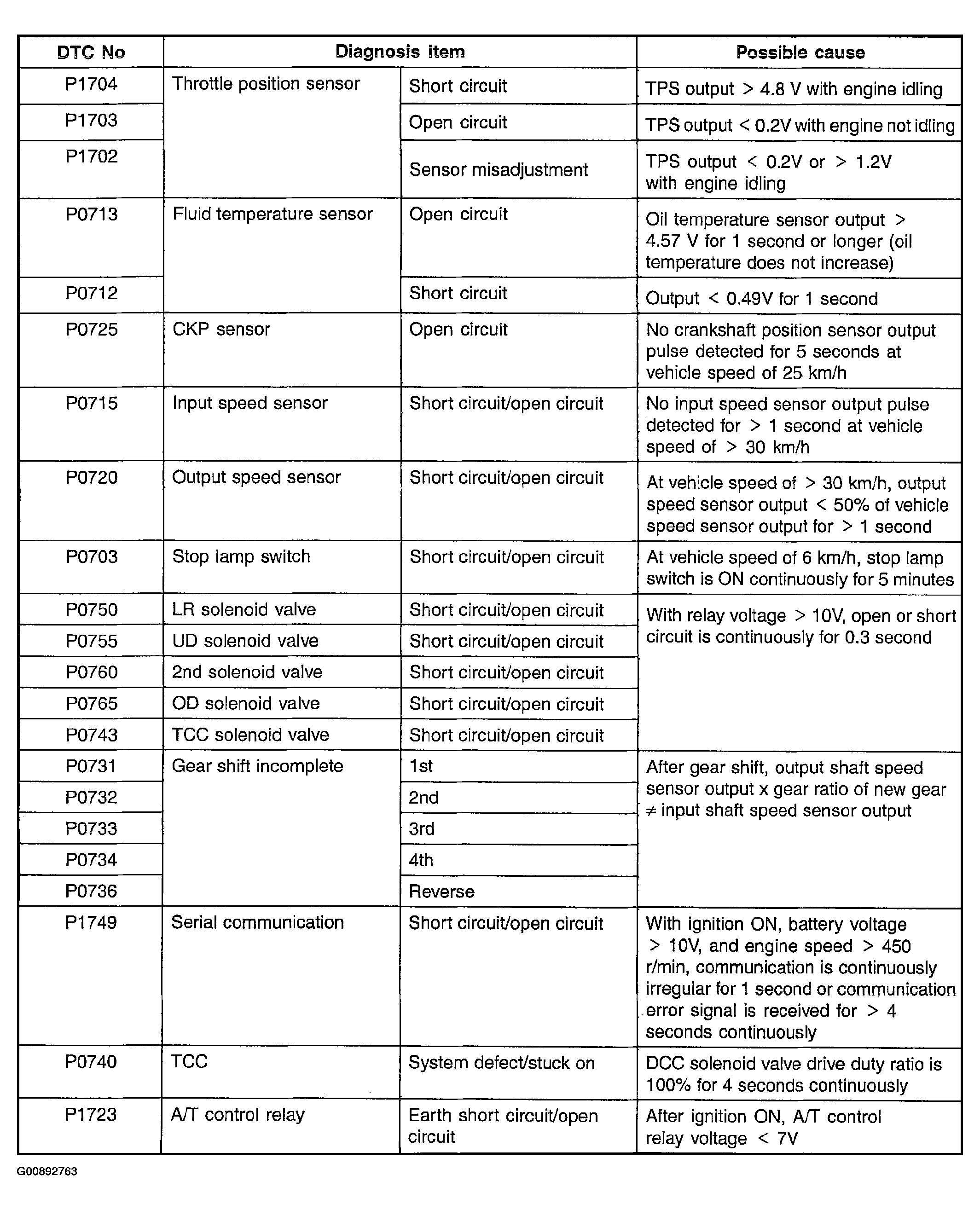

Fig 1: DTC P1704, P1703, P1702, P0713, P0712, P0725, P0715, P0720, P0703, P0750, P0755, P0760, P0765, P0743, P0731, P0732, P0733, P0734, P0736, P1749, P0740 & P1723 Description
G00892763Courtesy of HYUNDAI MOTOR CO.

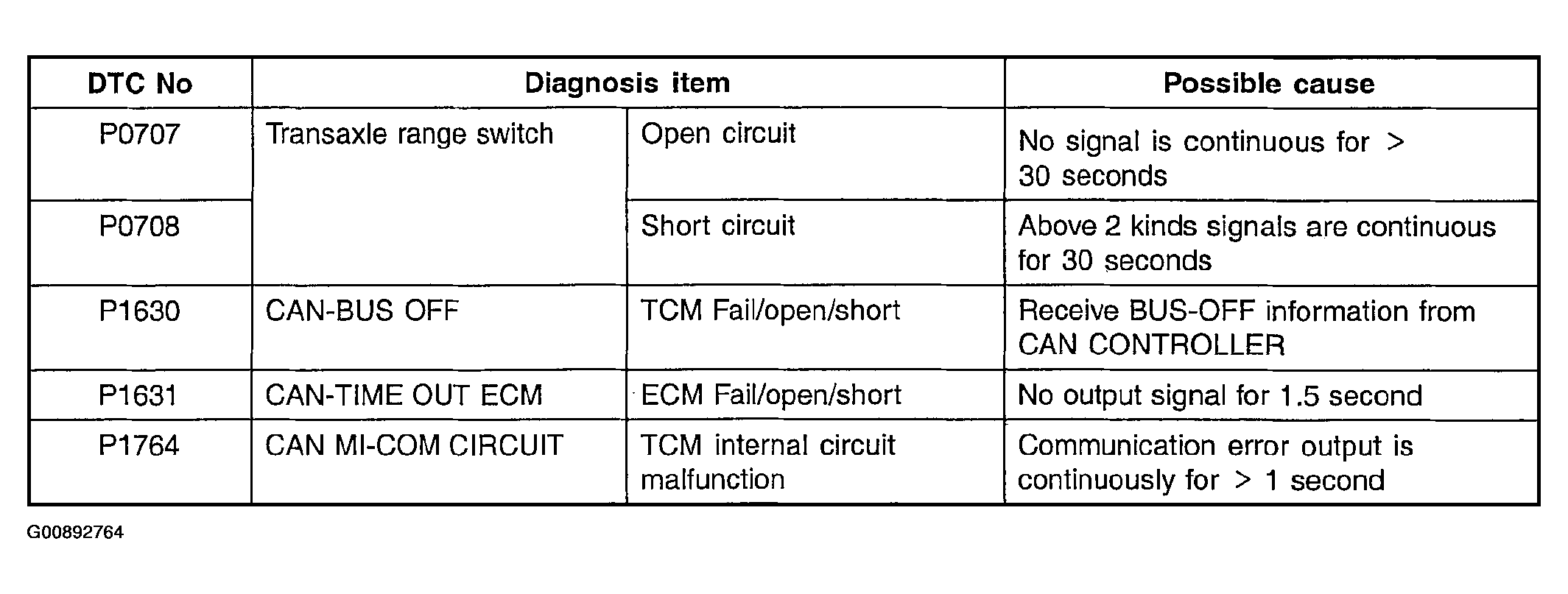

Fig 2: DTC P0707, P0708, P1630, P1631 & P1764 Description
G00892764Courtesy of HYUNDAI MOTOR CO.
