Operating Elements And Their Function

WARNING: This page is about a different variant/trim than selected.

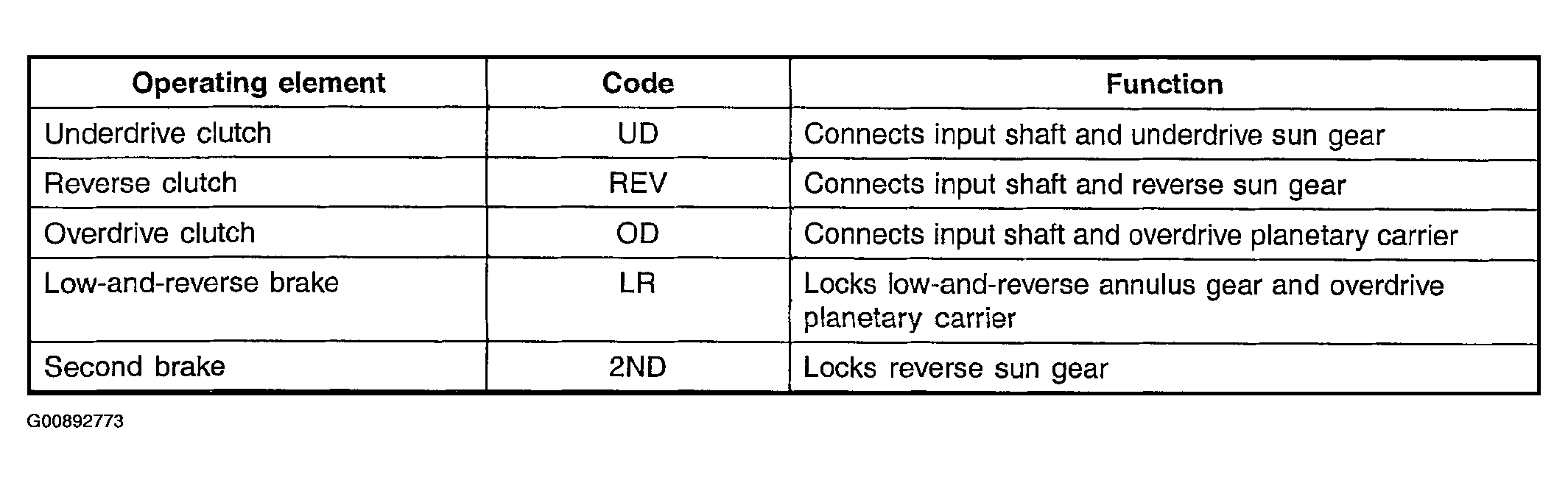

Fig 1: Operating Elements & Their Function
G00892773Courtesy of HYUNDAI MOTOR CO.
