Troubleshooting (M/T)

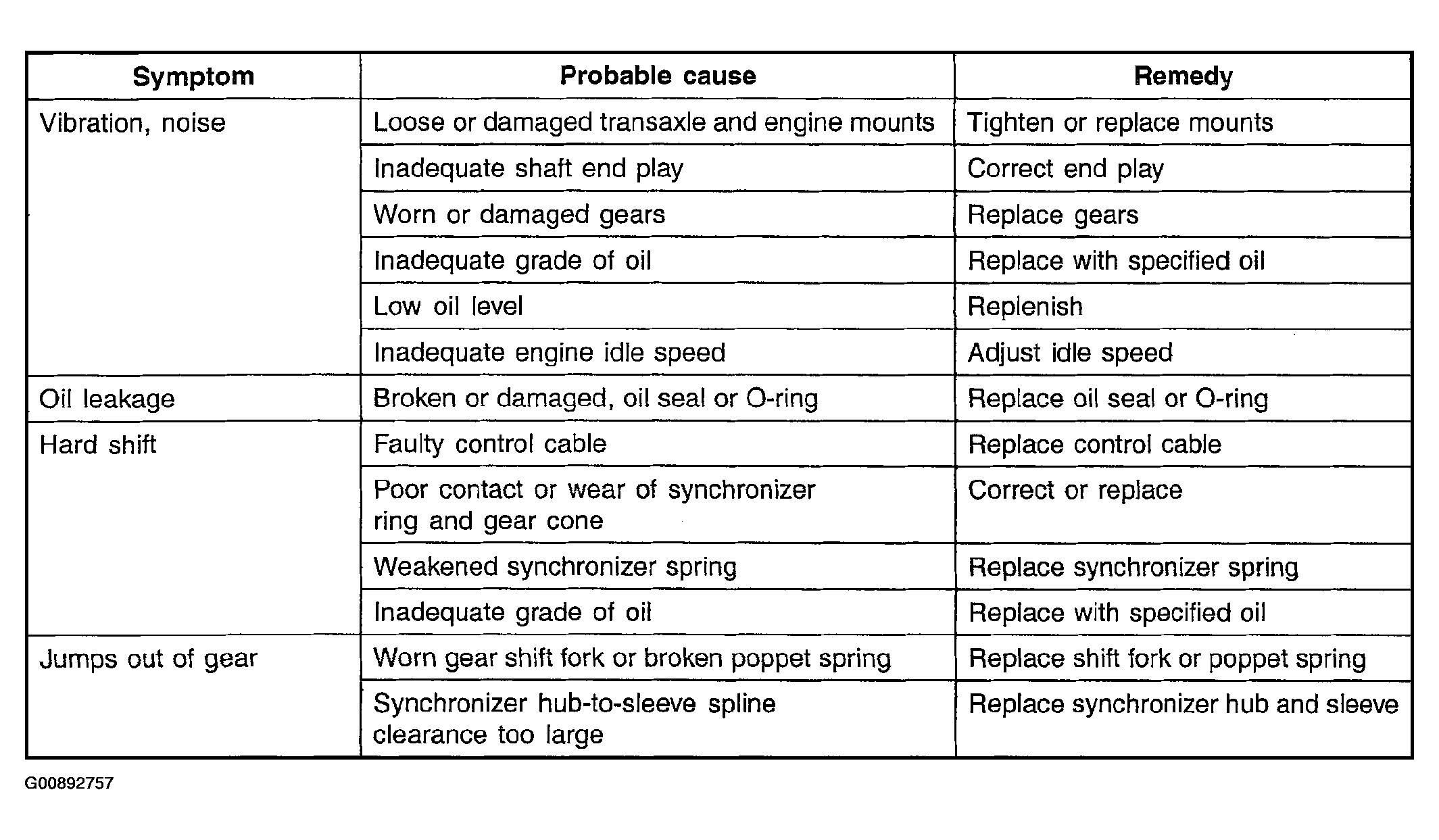

Fig 1: Troubleshooting
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
