DTC P0052: O2 Sensor Heater Circuit High Input (Bank 2, Sensor 1): DTC Detecting Condition

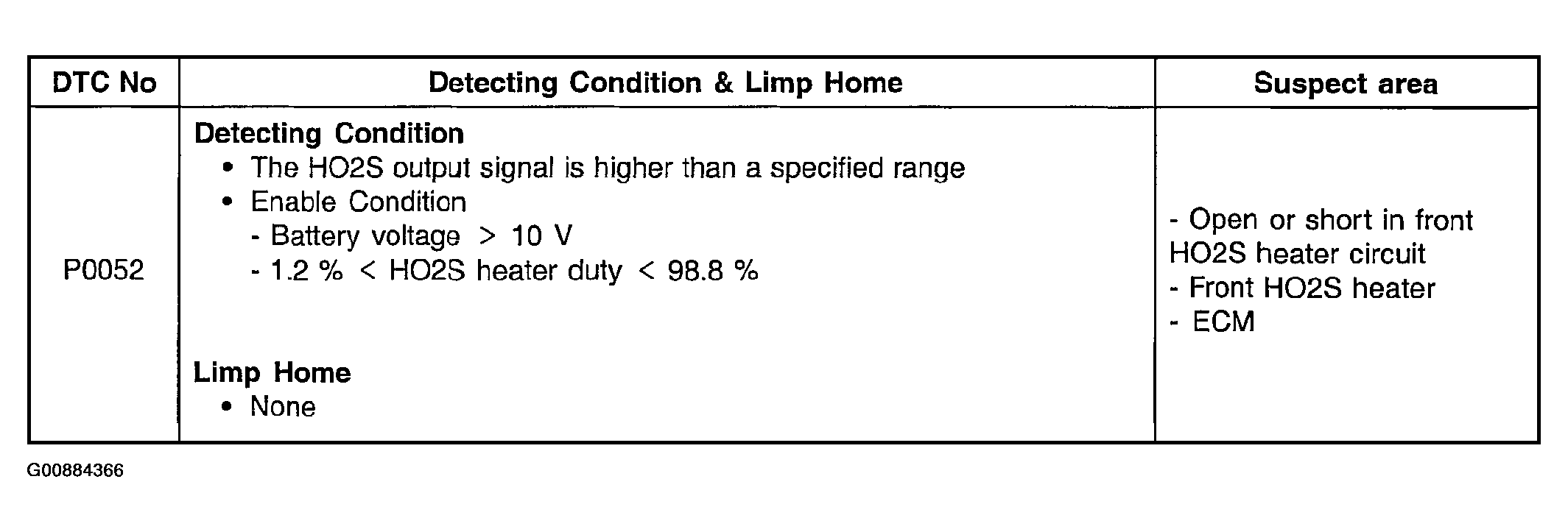

Fig 1: DTC Detecting Condition
G00884366Courtesy of HYUNDAI MOTOR CO.
