DTC P1166: O2 Sensor System Lambda Bank Controller At The Limit (Bank 1) & DTC P1167: O2 Sensor System Lambda Bank Controller At The Limit (Bank 2): DTC Detecting Condition

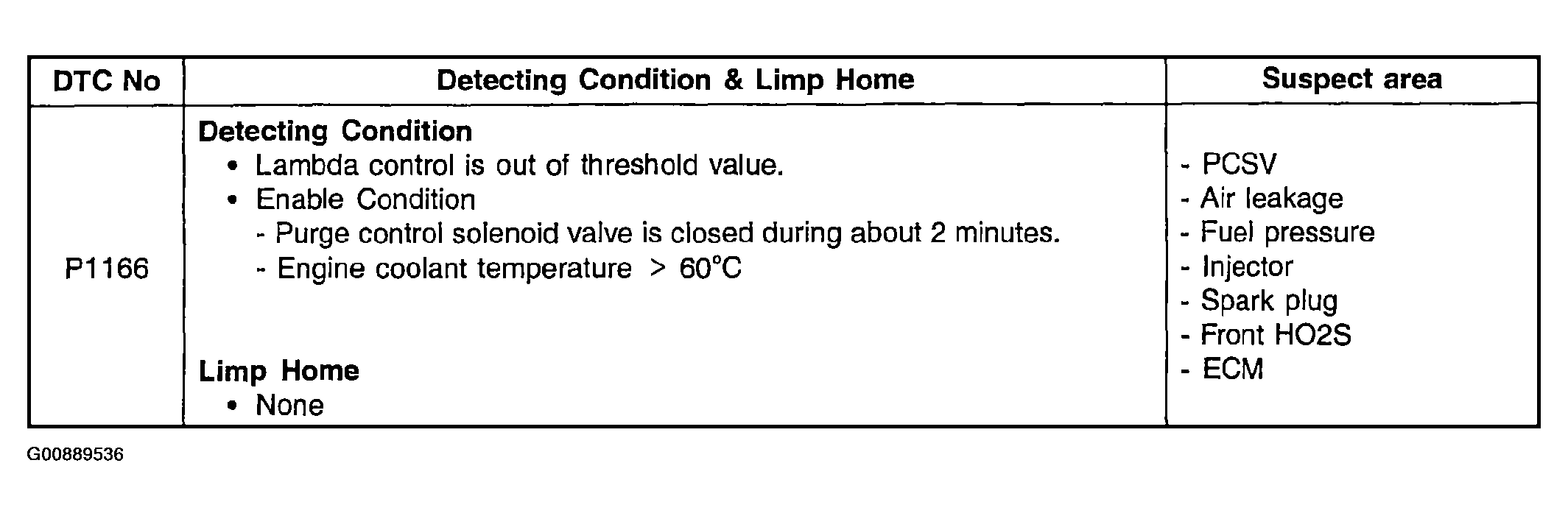

Fig 1: DTC Detecting Condition

Courtesy of HYUNDAI MOTOR CO.
