Automatic Transaxle System
>>
Automatic Transaxle System
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 6
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 6

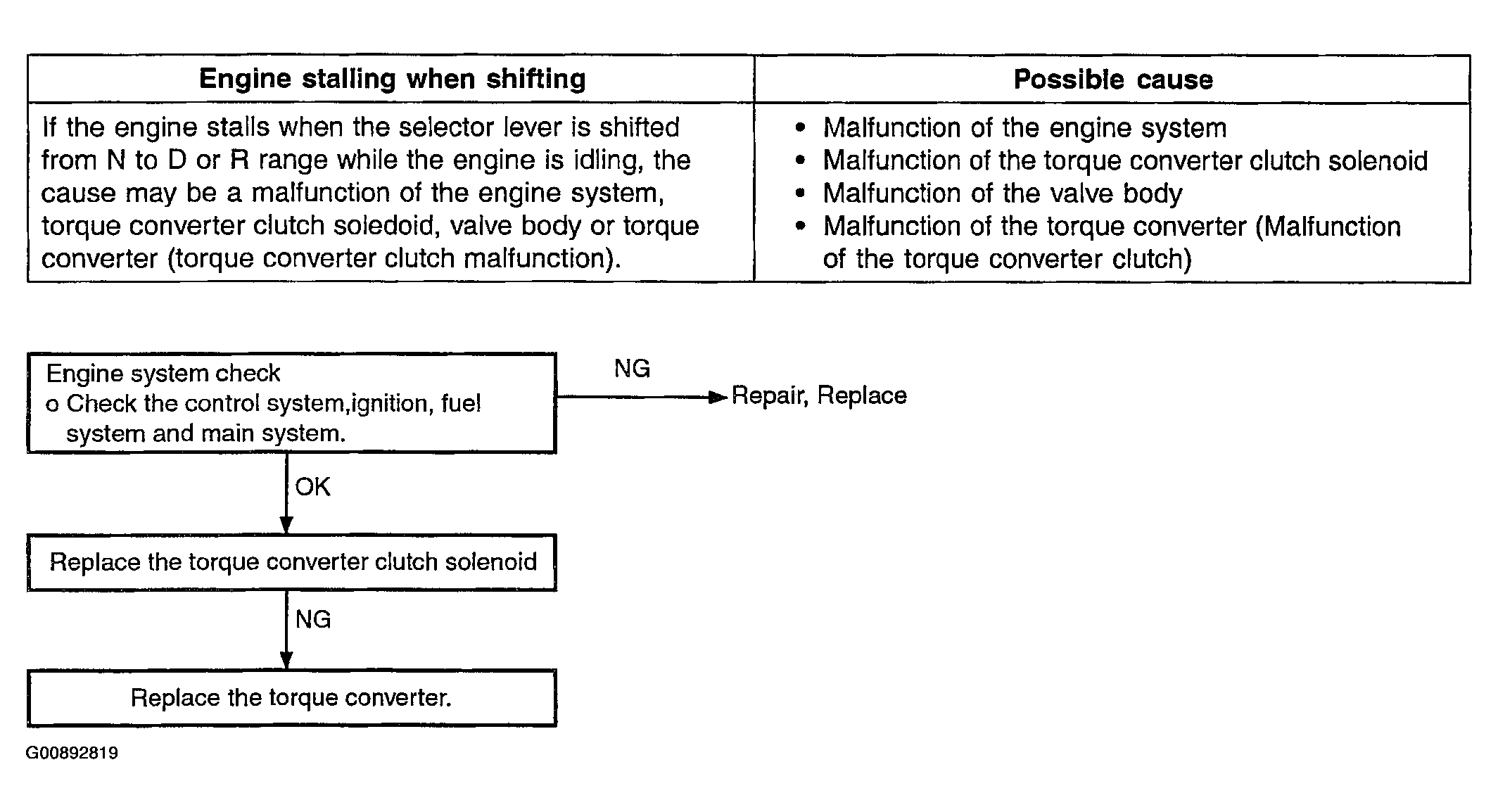

Fig 1: Inspection Procedure 6
Courtesy of HYUNDAI MOTOR CO.
