Cruise Control Servo: Service and Repair

CRUISE CONTROL UNIT AND CABLE

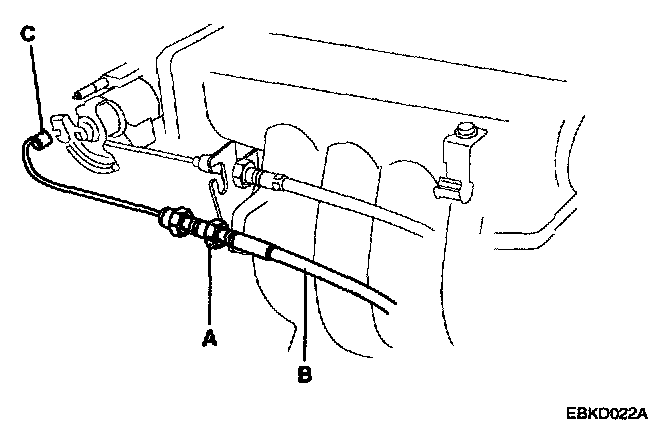

1. Loosen the locknuts(A) and disconnect the actuator cable (B) from the throttle linkage(C).




2. Disconnect the cruise control unit connector(D).

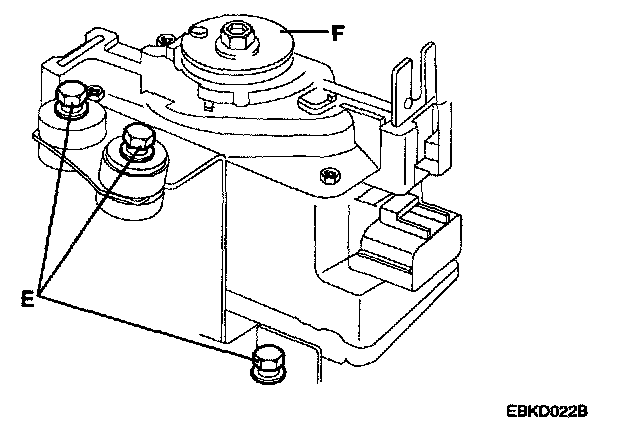

3. Loosen the three mounting bolts(E), and remove the cruise control unit with the bracket(F).

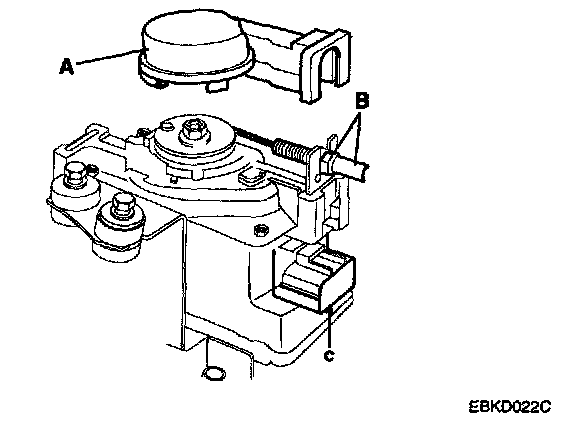

4. Loosen the locknuts(A) and disconnect the actuator cable(B) from the cruise control unit.
5. Installation is the reverse of removal.
