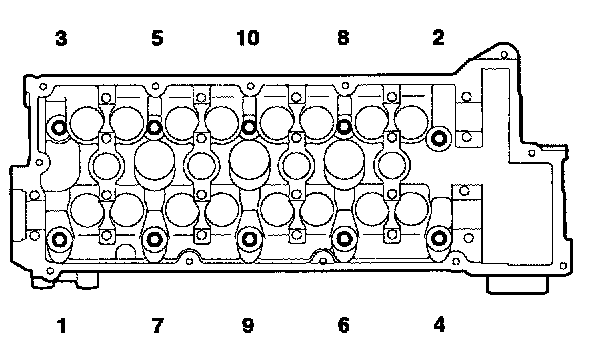

Torque Sequence

Tighten the bolts to the specified torque in the sequence shown below.
Cylinder head bolt
M10 25 Nm 18 ft. lbs.) + (60 - 65°) + (60 - 65°)
M12 30 Nm (22 ft. lbs.) + (60 - 65°) + (60 - 65°)





Oil pump sequence
