System Control Features (Automatic A/C)

SYSTEM CONTROL FEATURES

SIGNAL I/O FOR EACH CONTROL FEATURE

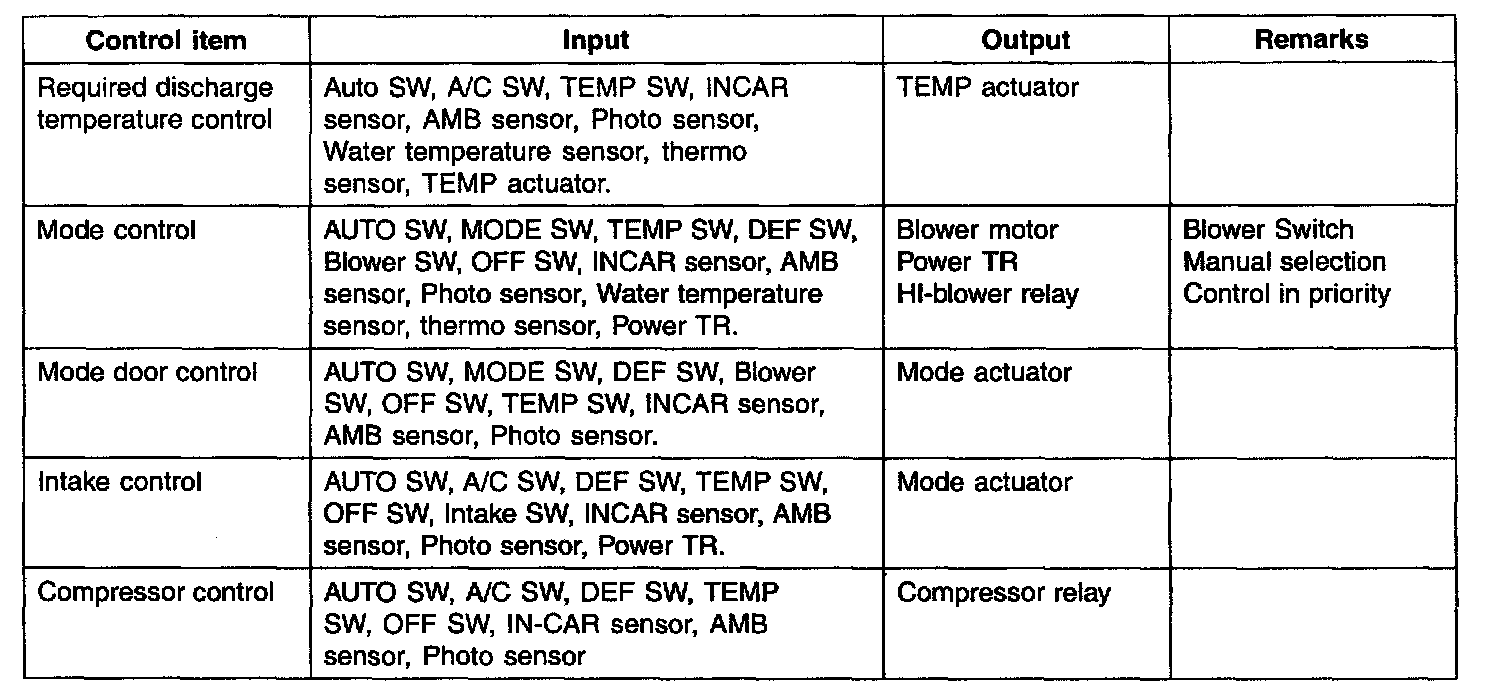

Signal I/O For Each Control Feature:

- During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

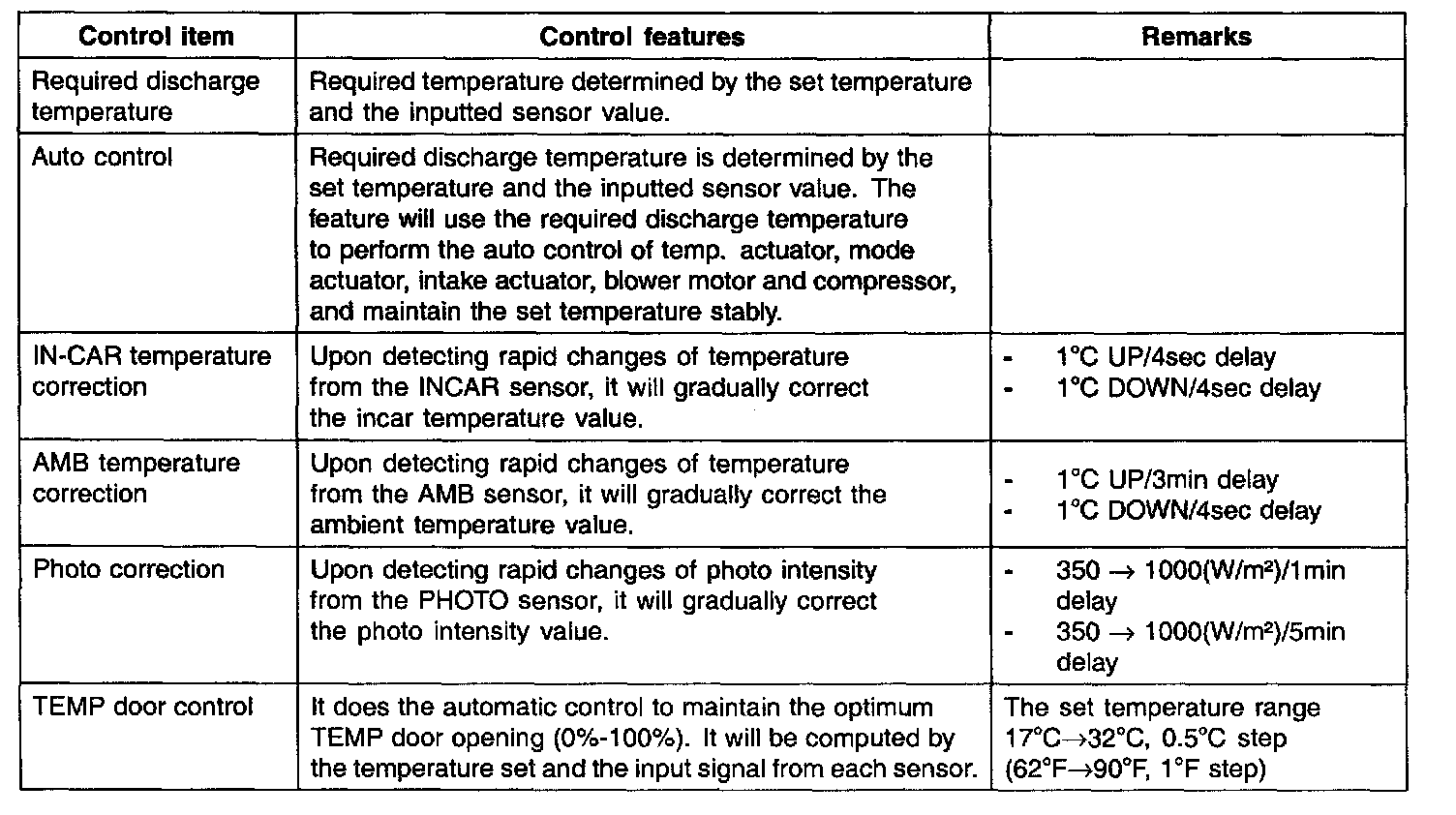

Control Specification Part 1:

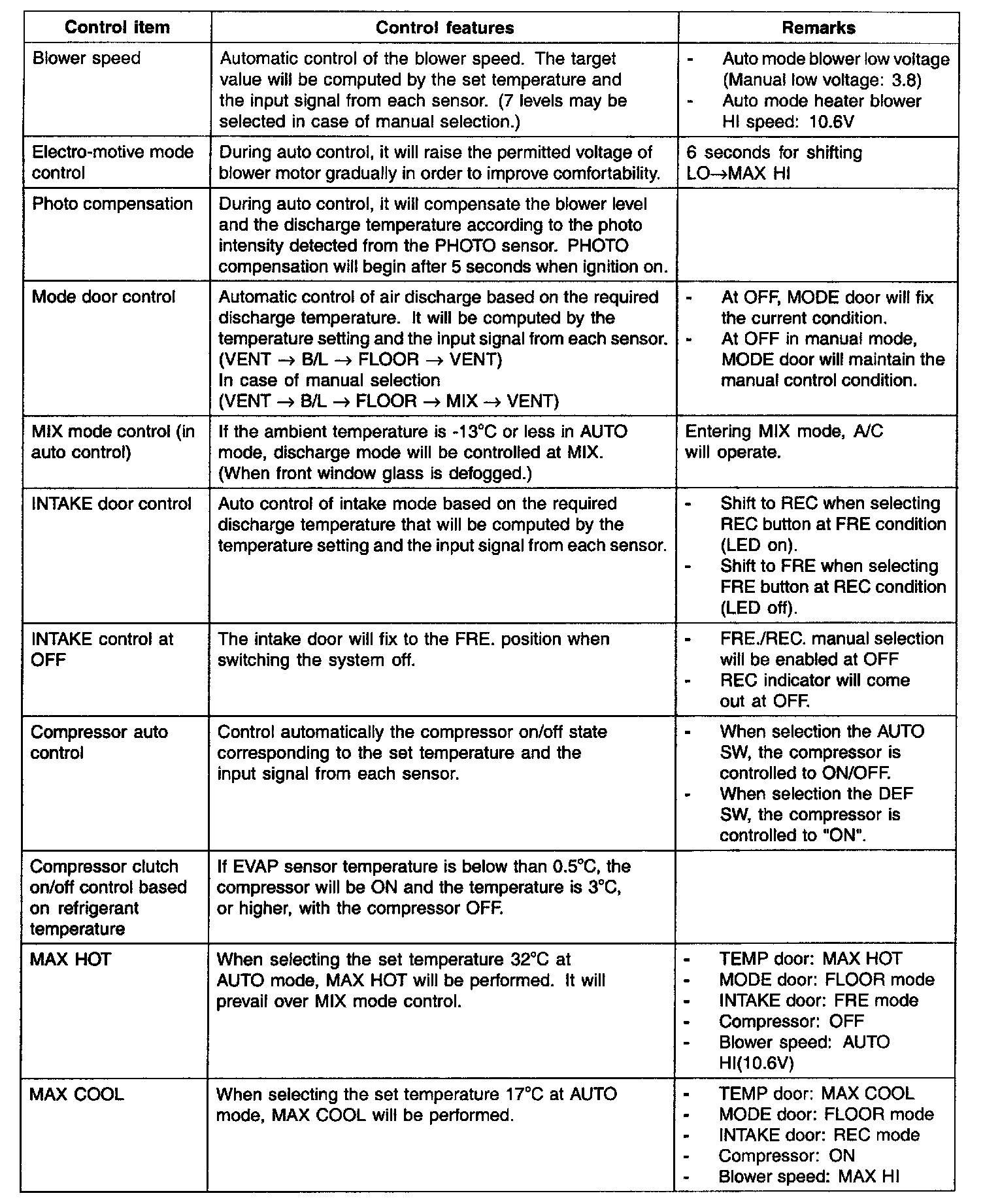

Control Specification Part 2:

Control Specification Part 3:

CONTROL SPECIFICATION
