Control Assembly: Service and Repair

REMOVAL
1. Disconnect the negative(-) battery terminal.

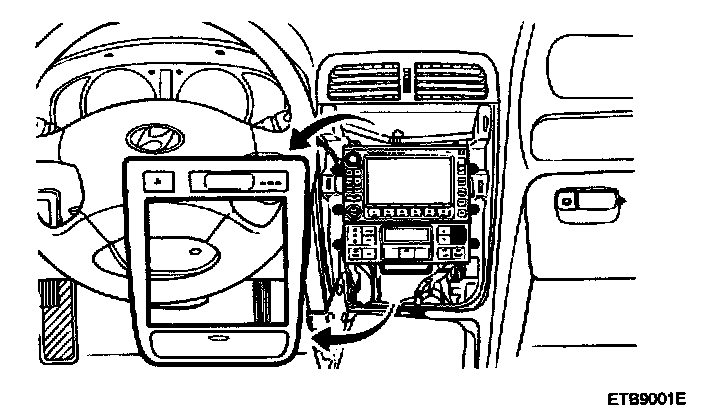

2. Remove the center facia panel.

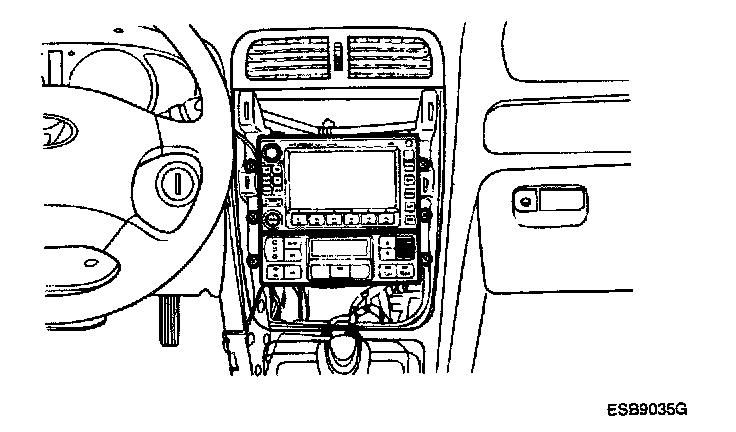

3. Remove the air conditioner control panel from the mounting bracket.

INSTALLATION
Installation is the reverse of removal.
