Torque Specifications

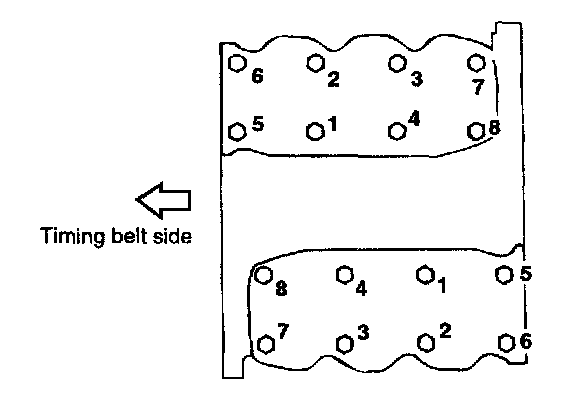

Cylinder Head Tightening Sequence:





Cylinder head bolts
Cold engine 105 - 115 Nm (1050 - 1150 kg-cm, 75 - 82 ft. lbs.)
