ETACS Control Module

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad panel.

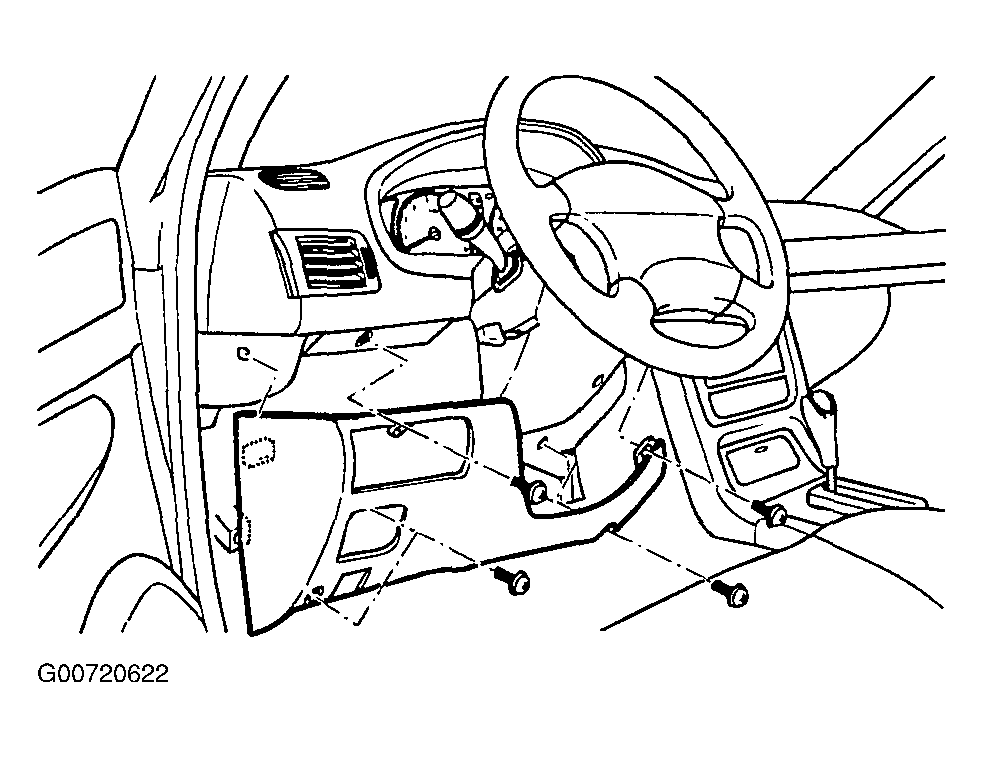

    Fig 1: Removing Lower Crash Pad Panel
    G00720622Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connectors and remove the ETACS CM.

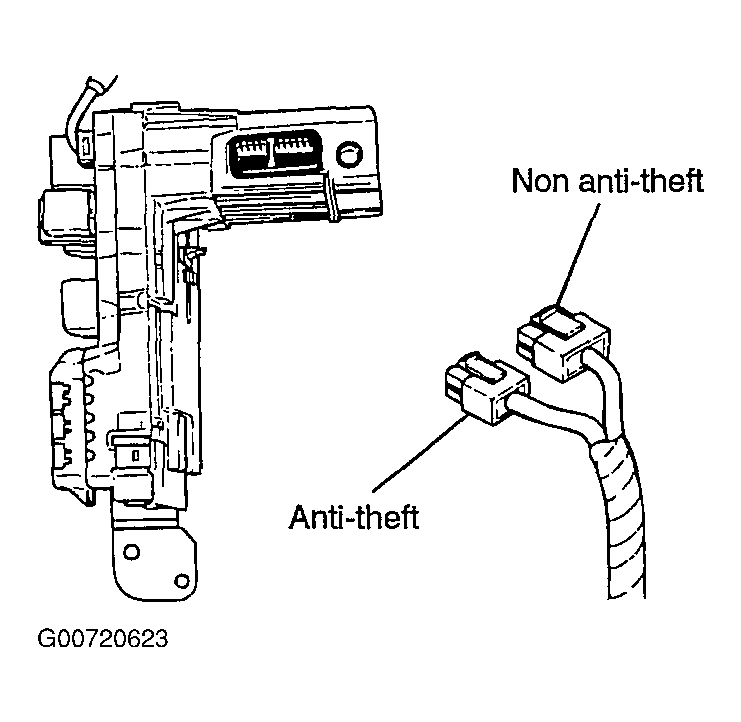

    Fig 2: Removing ETACS Control Module
    G00720623Courtesy of HYUNDAI MOTOR CO.
