Using Hi-Scan (Pro)

  1. To register transmitter code, first connect keyless adapter (09900-21300) to DLC (Data Link Connector) cable of hi-scan as shown in the illustration.

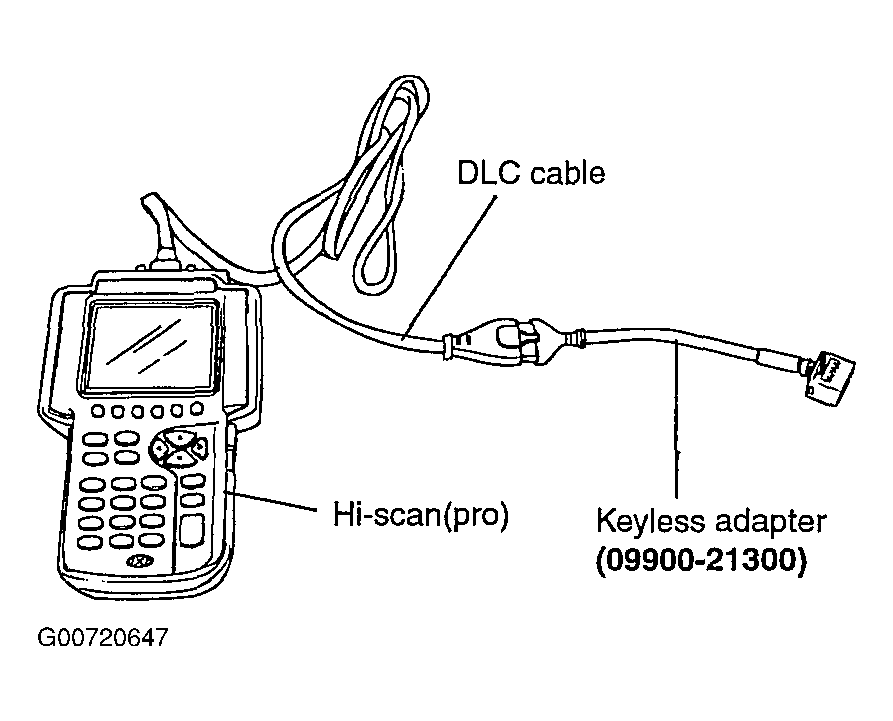

    Fig 1: Identifying Hi-Scan (Pro) & Keyless Adapter
    G00720647Courtesy of HYUNDAI MOTOR CO.
  2. After connecting keyless adapter to the multi purpose check connector (10 pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

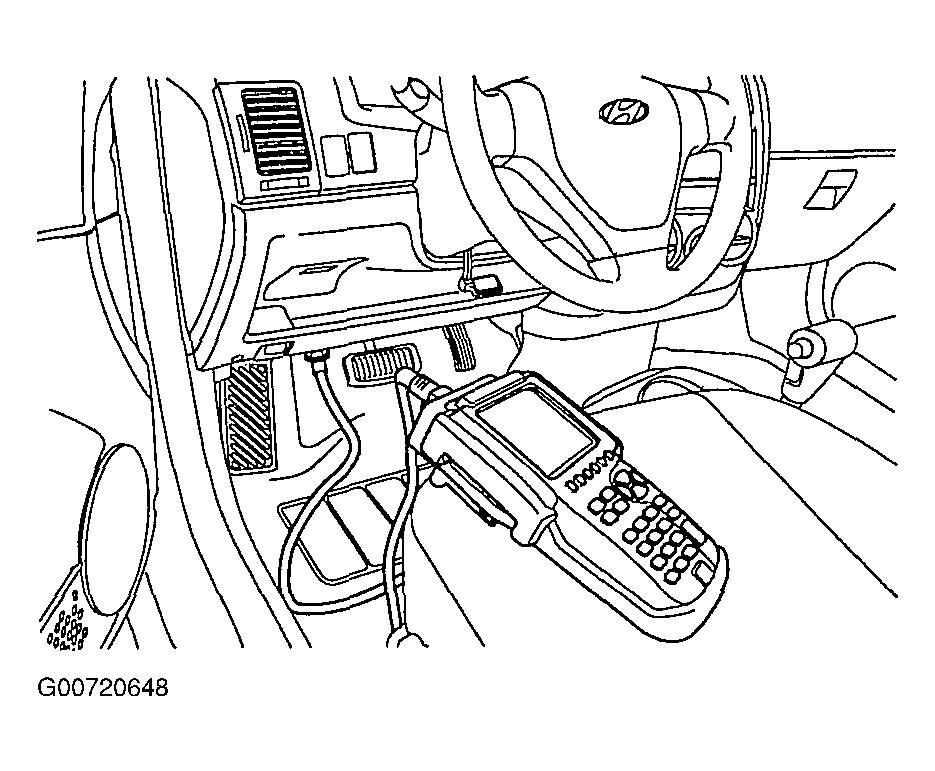

    Fig 2: Connecting Hi-Scan (Pro) For Transmitter Registration
    G00720648Courtesy of HYUNDAI MOTOR CO.
  3. Select the vehicle model and then do "07. TRANSMITTER CODE SAVING".

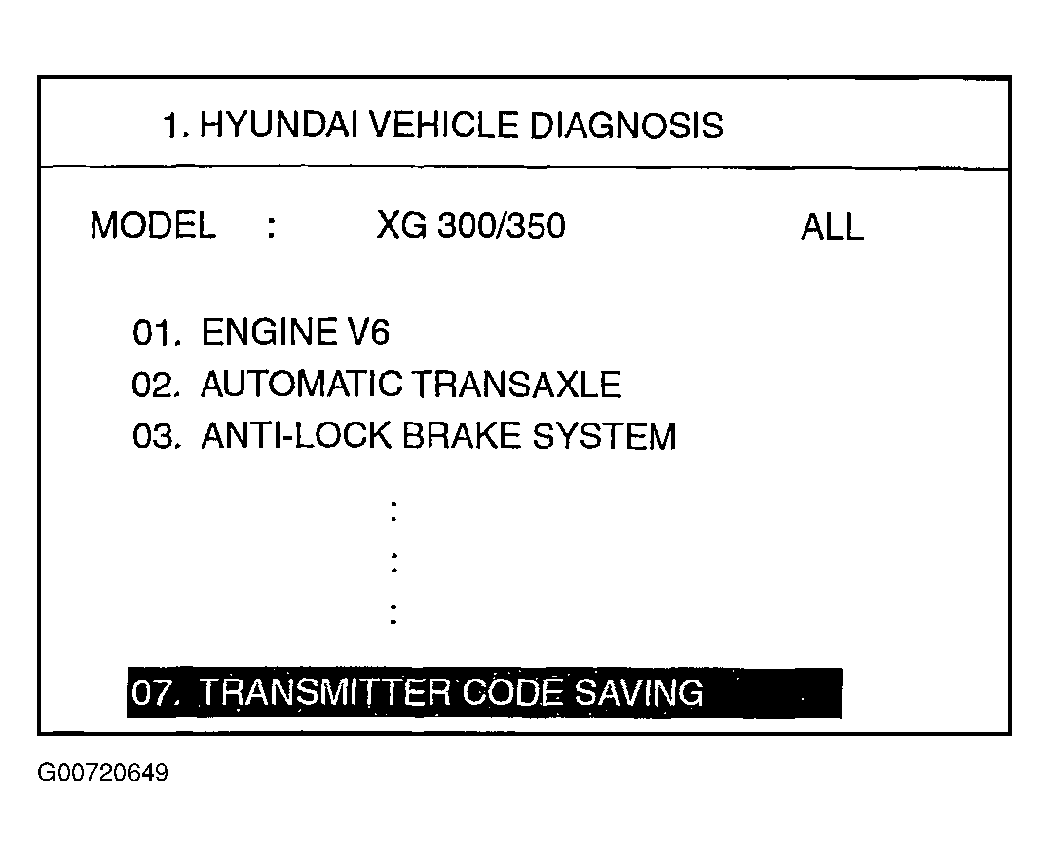

    Fig 3: Registering Transmitter - "07. TRANSMITTER CODE SAVING"
    G00720649Courtesy of HYUNDAI MOTOR CO.
  4. After selecting "TRANSMITTER CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

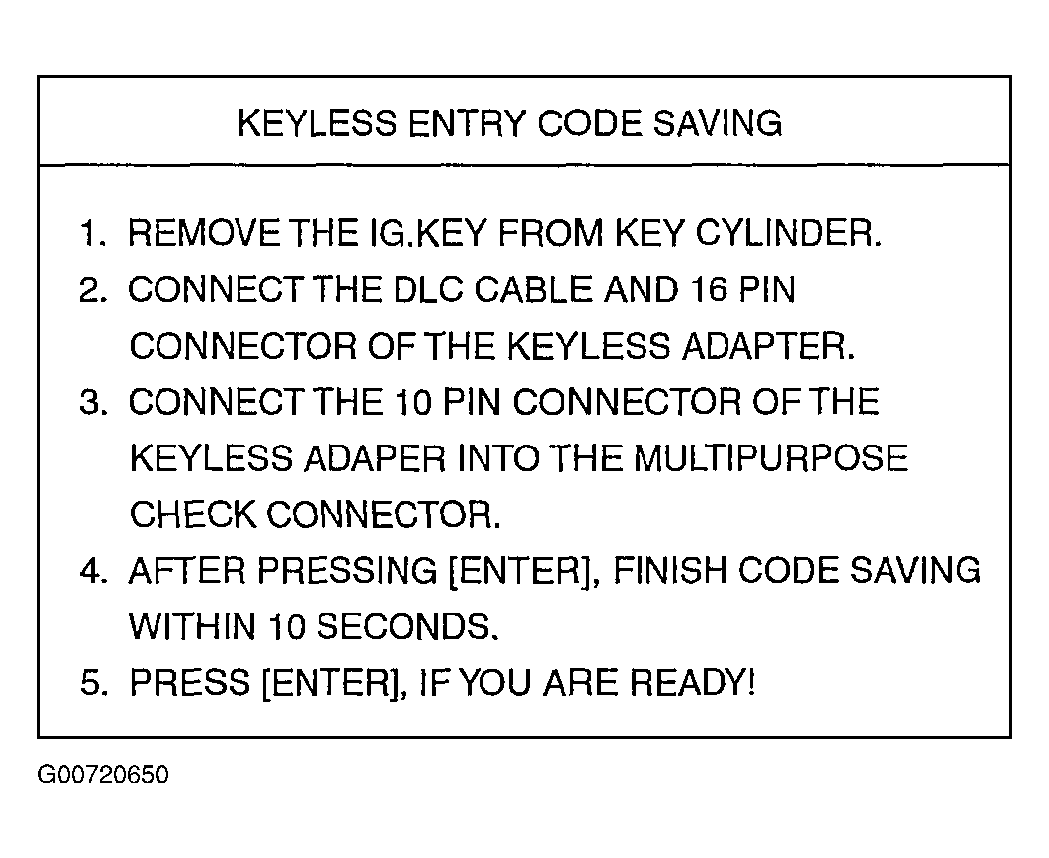

    Fig 4: Registering Transmitter - Set Up Screen
    G00720650Courtesy of HYUNDAI MOTOR CO.
  5. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

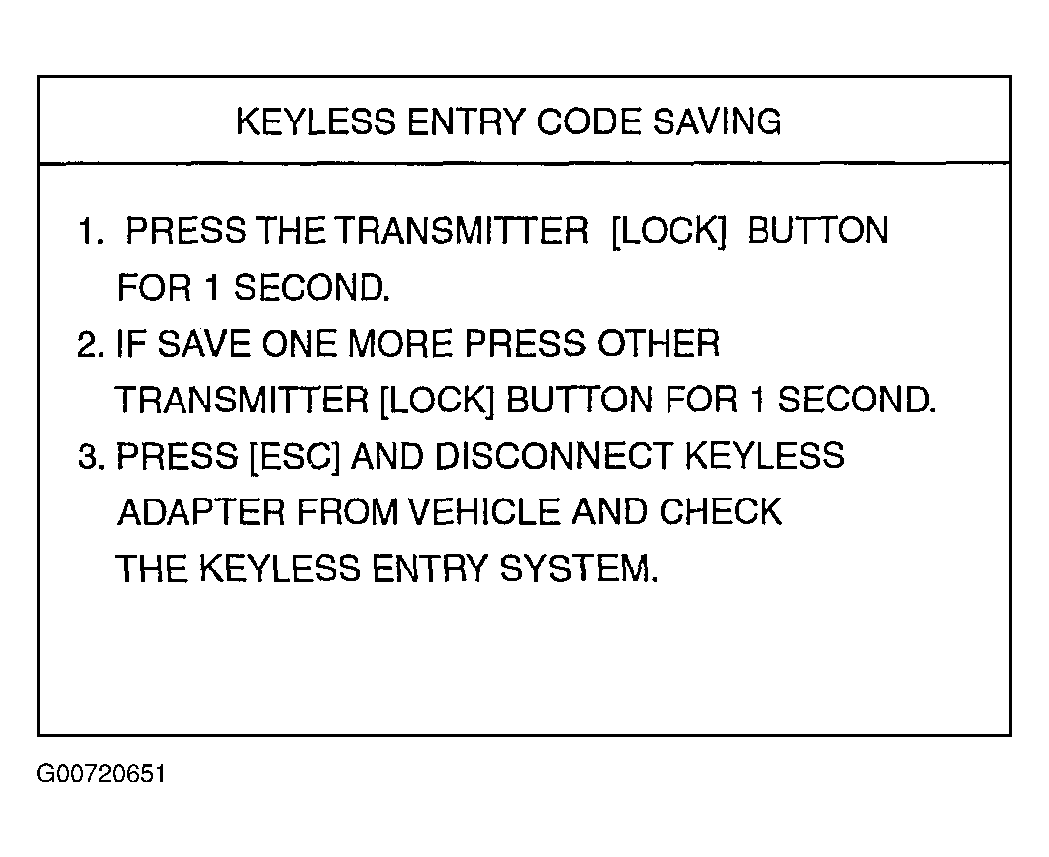

    Fig 5: Registering Transmitter - Programming Screen
    G00720651Courtesy of HYUNDAI MOTOR CO.
  6. Follow steps 1 to 3 and then code saving is completed.
  7. Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
