Immobilizer Control Module: Removal

Disconnect the negative (-) battery terminal.
Remove the center fascia panel using a screwdriver and disconnect the switch connectors.

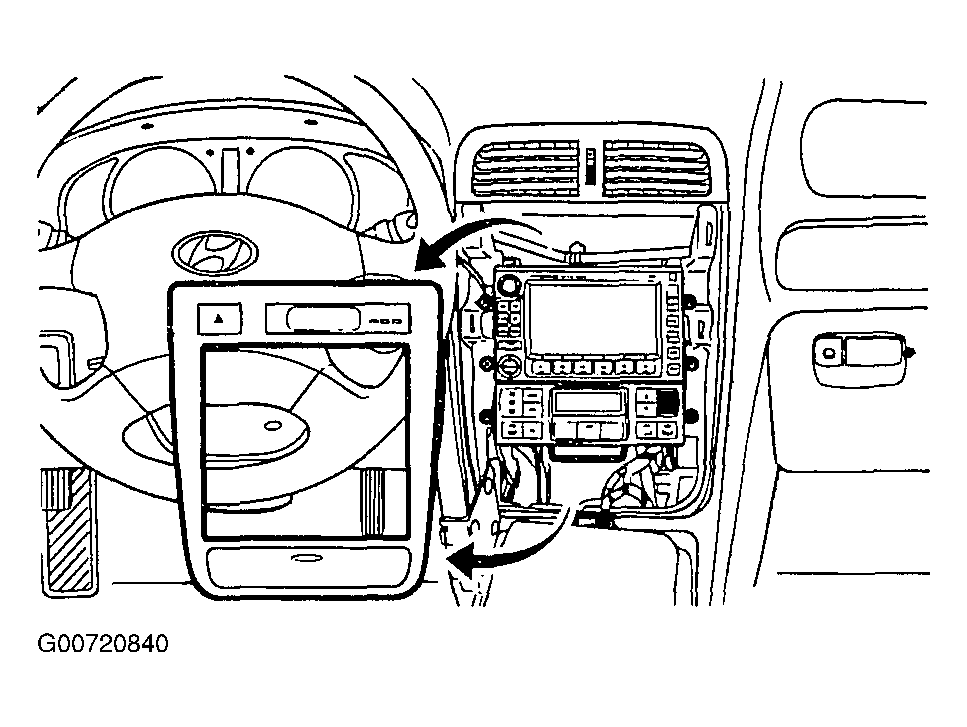

Fig 1: Removing Center Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Unscrew the audio mounting screws and remove the audio assembly from the mounting bracket.

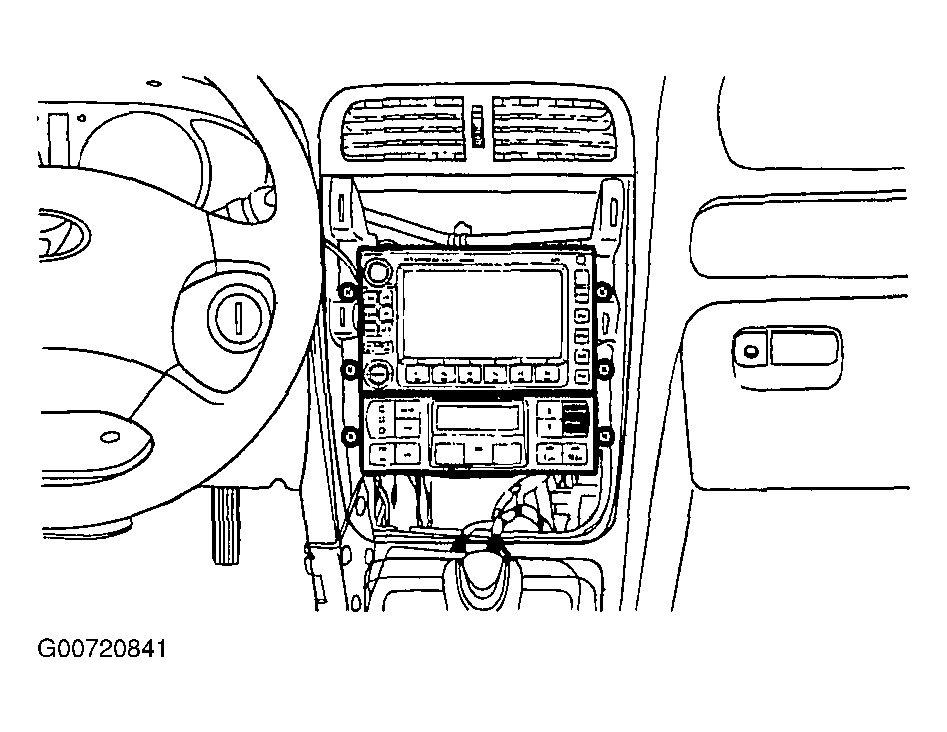

Fig 2: Removing Audio Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the flange nuts holding the ICM (Immobilizer Control Module) from left hand center fascia support bracket.

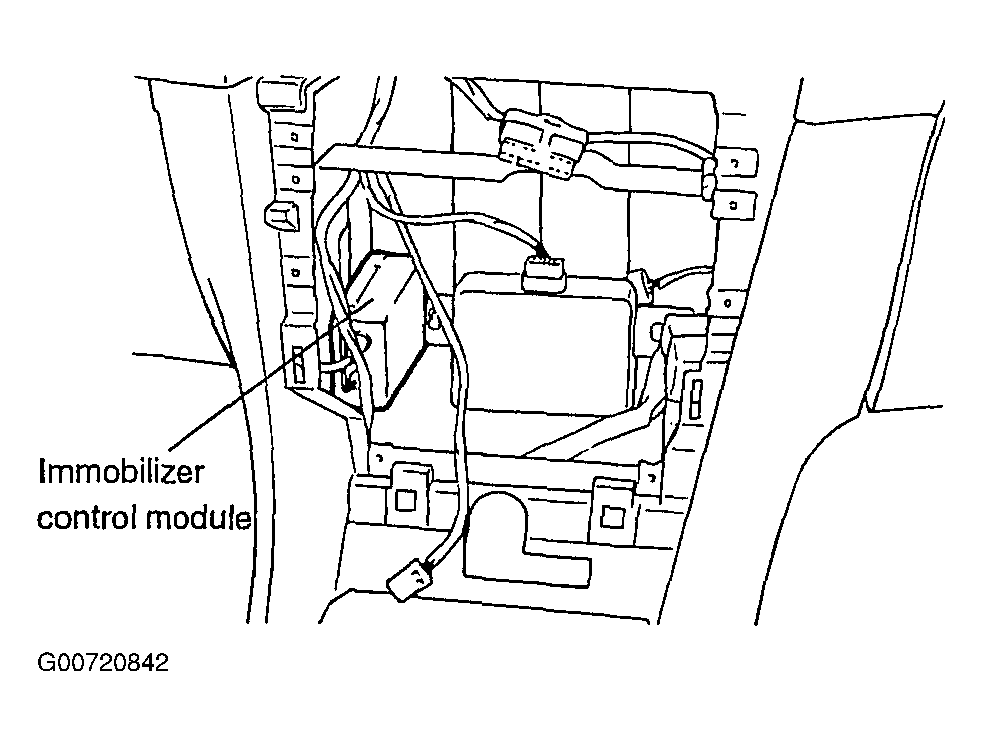

Fig 3: Removing Immobilizer Control Module
Courtesy of HYUNDAI MOTOR CO.
