MULTIFUNCTION Switch: Components

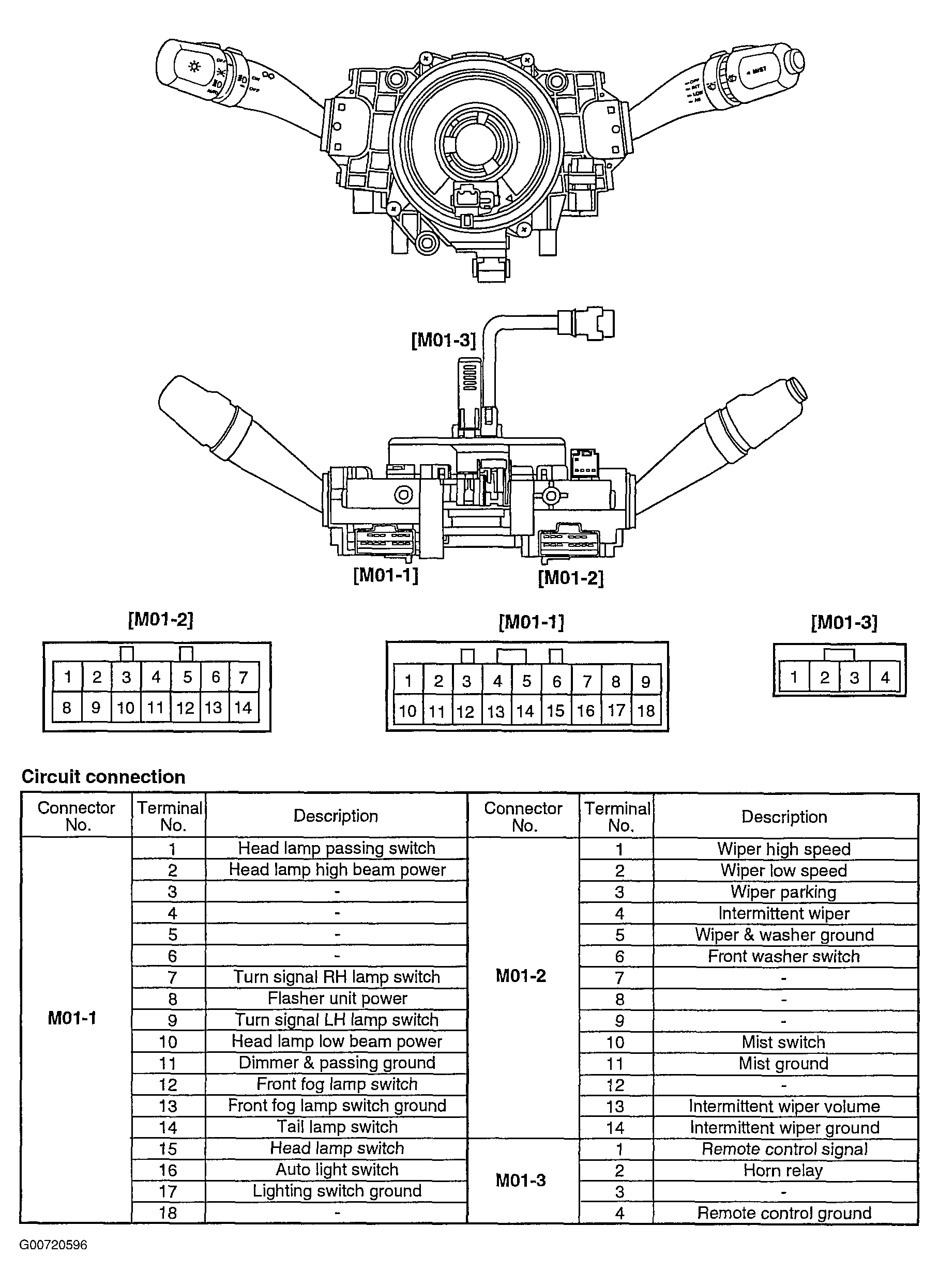

Fig 1: Identifying Multifunction Switch Components & Connector Terminals
G00720596Courtesy of HYUNDAI MOTOR CO.
