Ignition Switch: Inspection

  1. Disconnect the connector under the steering column.
  2. Check the switch continuity between the terminals.
  3. If continuity is not as specified, replace the switch

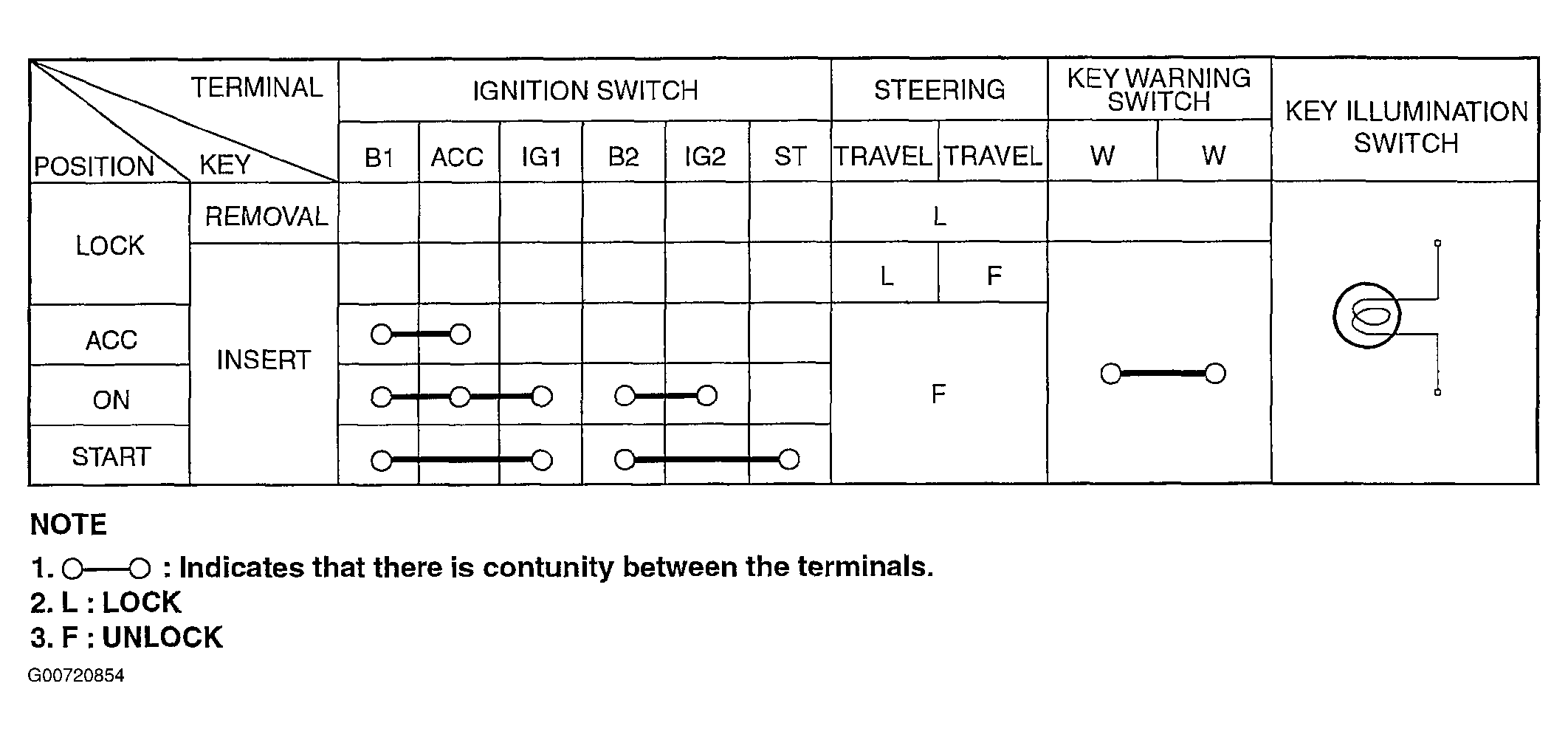

    Fig 1: Ignition Switch Position/Continuity Table (1 Of 2)
    G00720854Courtesy of HYUNDAI MOTOR CO.

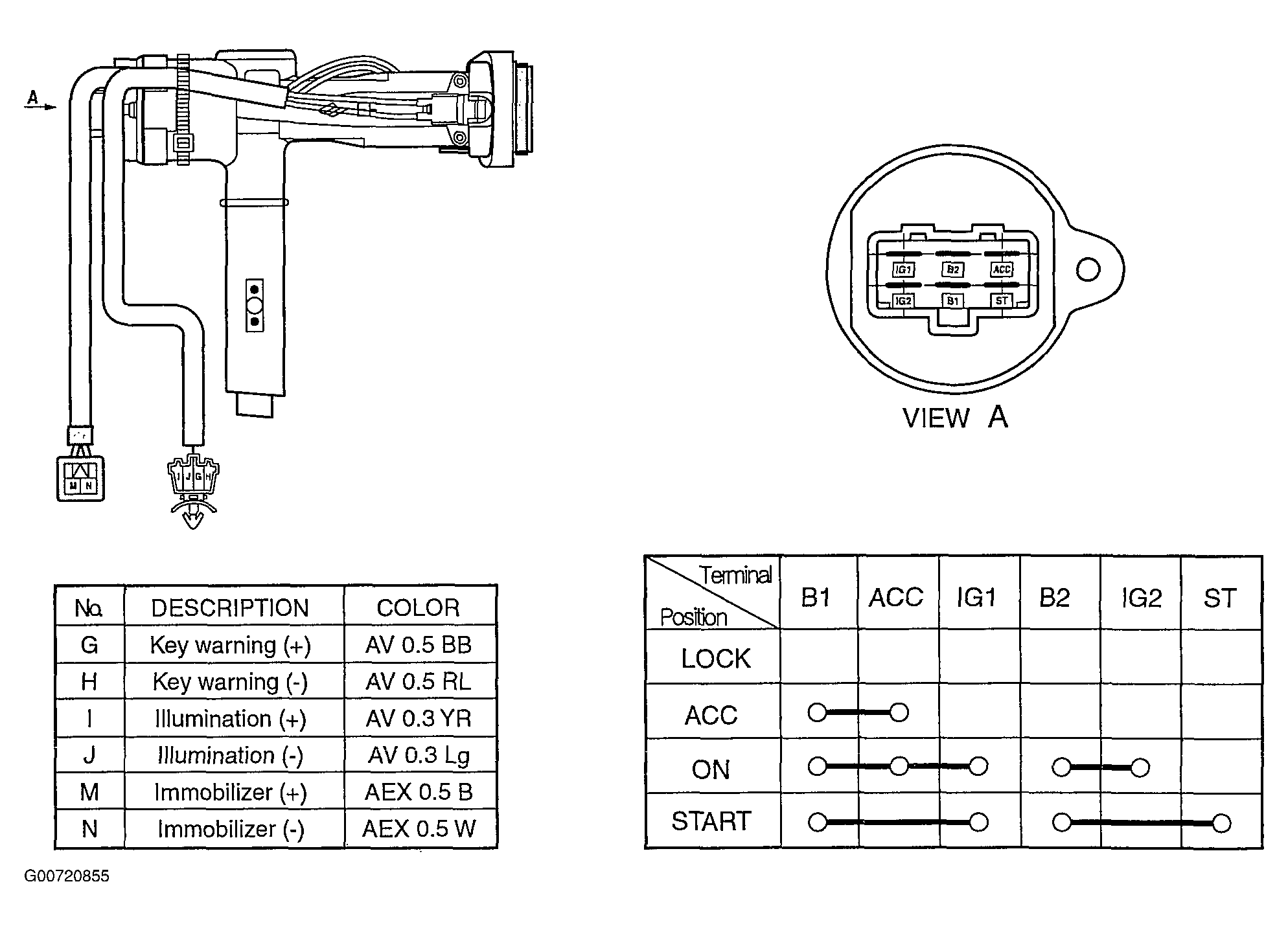

Fig 2: Ignition Switch Position/Continuity Table (2 Of 2)
G00720855Courtesy of HYUNDAI MOTOR CO.
