BTCS Ecu

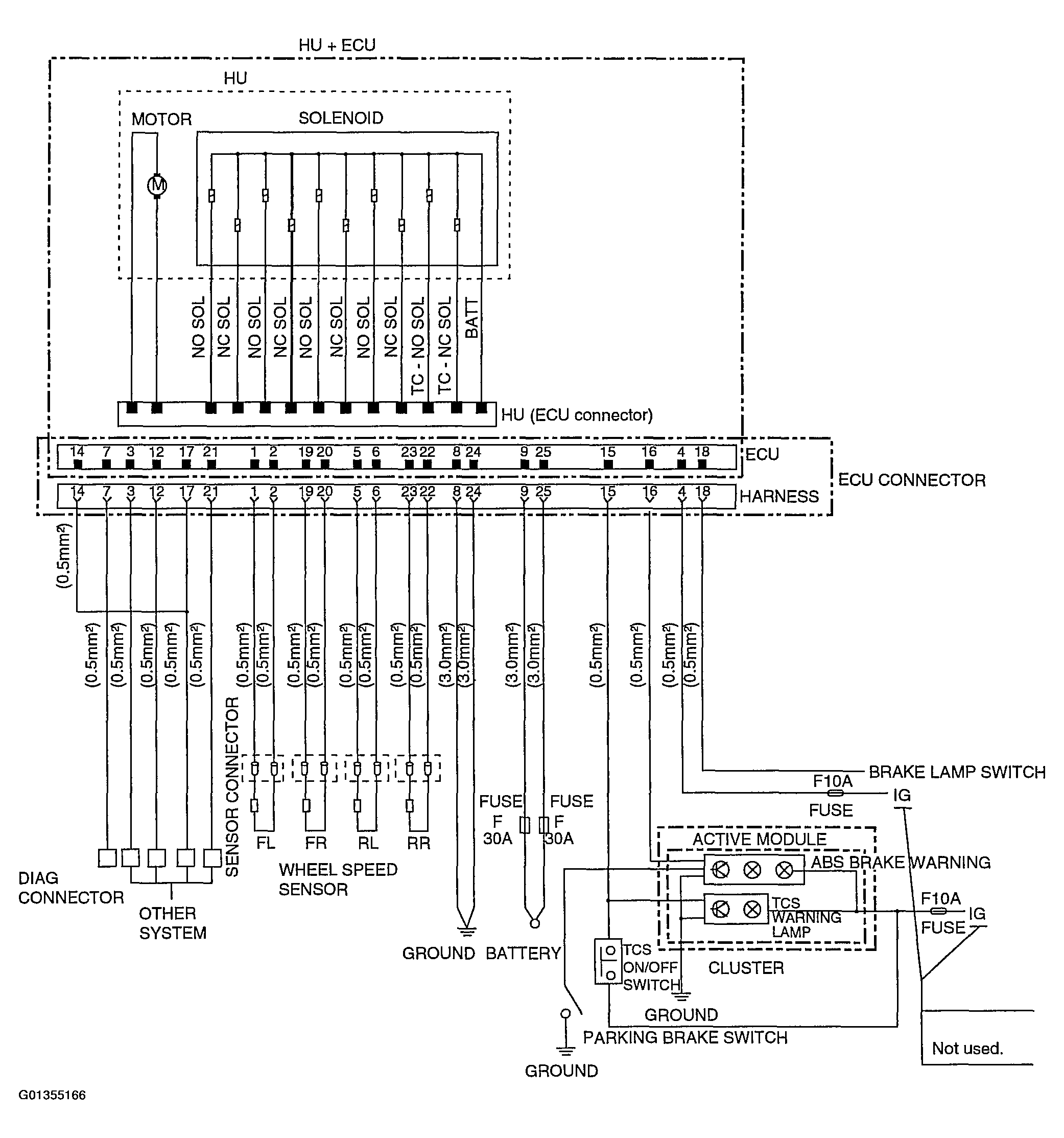

Fig 1: BTCS ECU Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
