Front Roll Stopper

  1. Remove the transaxle mounting bolt.
  2. Remove the transaxle bracket.

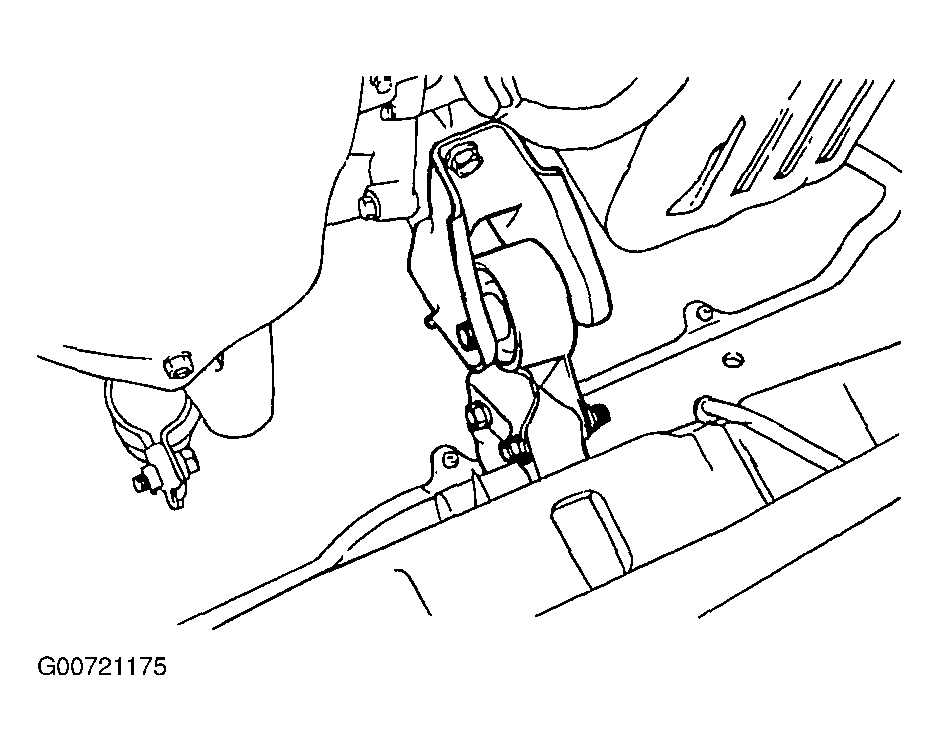

    Fig 1: Removing Front Roll Stop
    G00721175Courtesy of HYUNDAI MOTOR CO.
