Positive Crankcase Ventilation (PCV) Valve: Operation

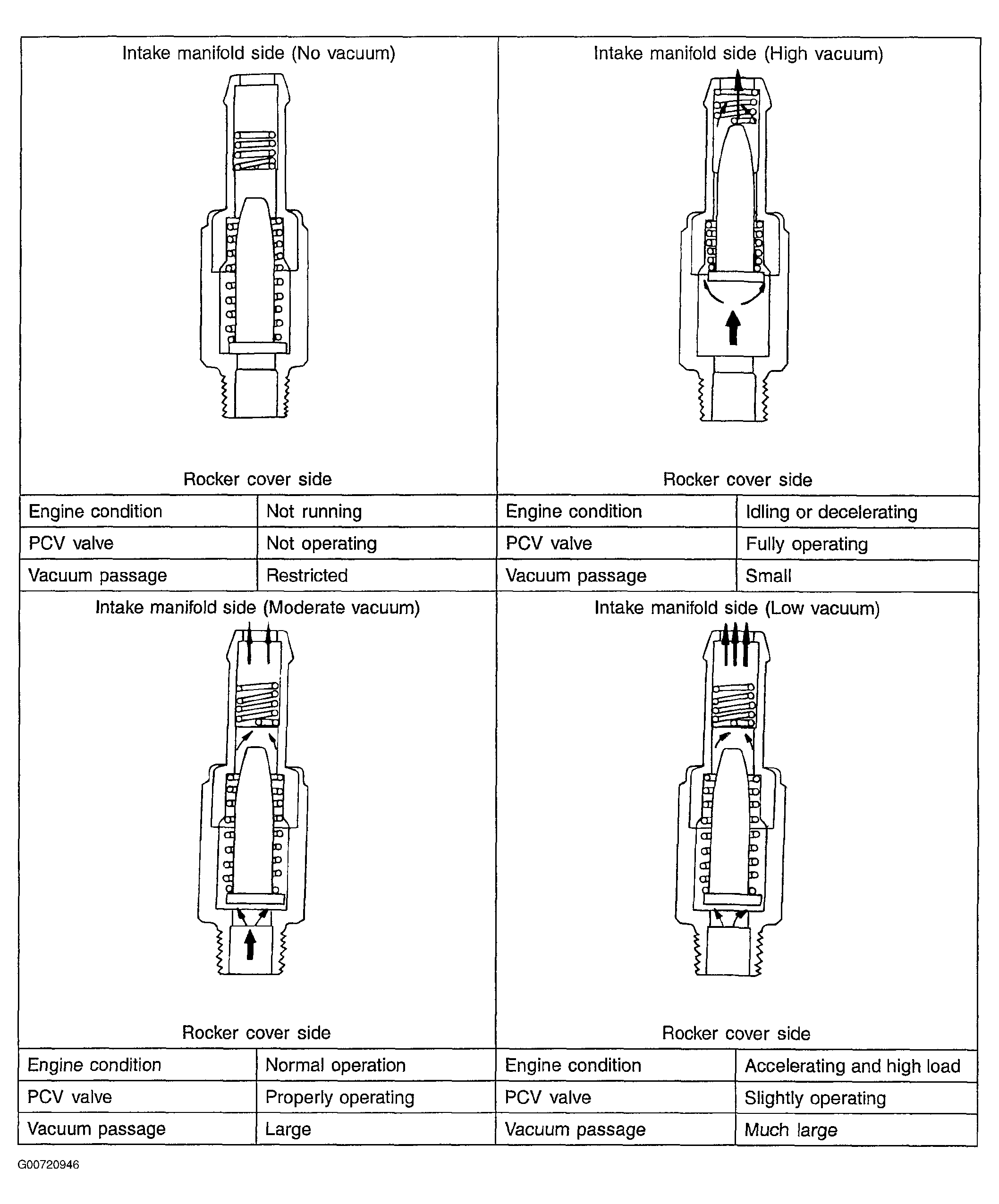

Fig 1: Identifying PCV Valve Operation

G00720946

Courtesy of HYUNDAI MOTOR CO.
