DTC P1723: A/T Control Relay System

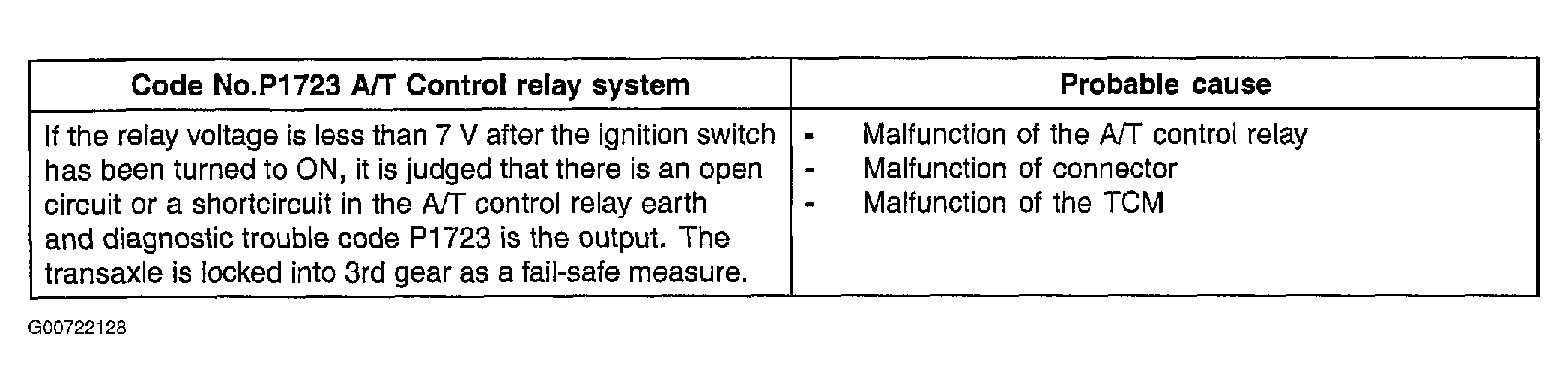

Fig 1: P1723 A/T Control Relay System (1 Of 2)
G00722128Courtesy of HYUNDAI MOTOR CO.

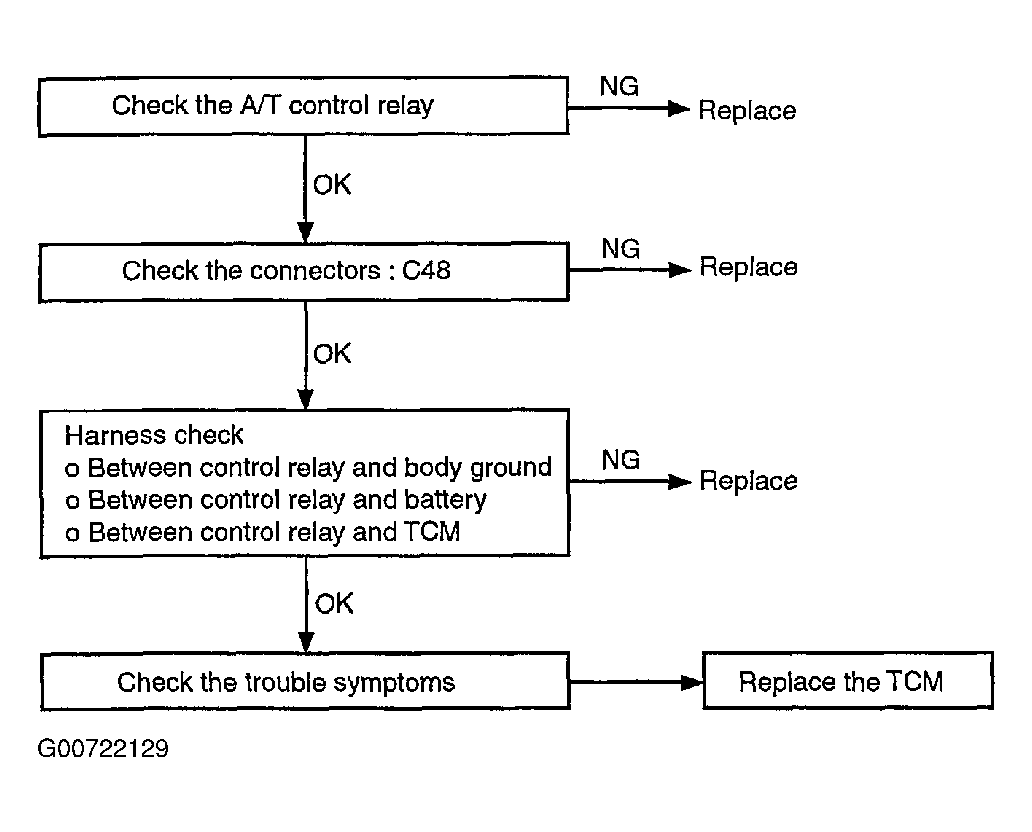

Fig 2: P1723 A/T Control Relay System (2 Of 2)
G00722129Courtesy of HYUNDAI MOTOR CO.
