Circuit Diagram

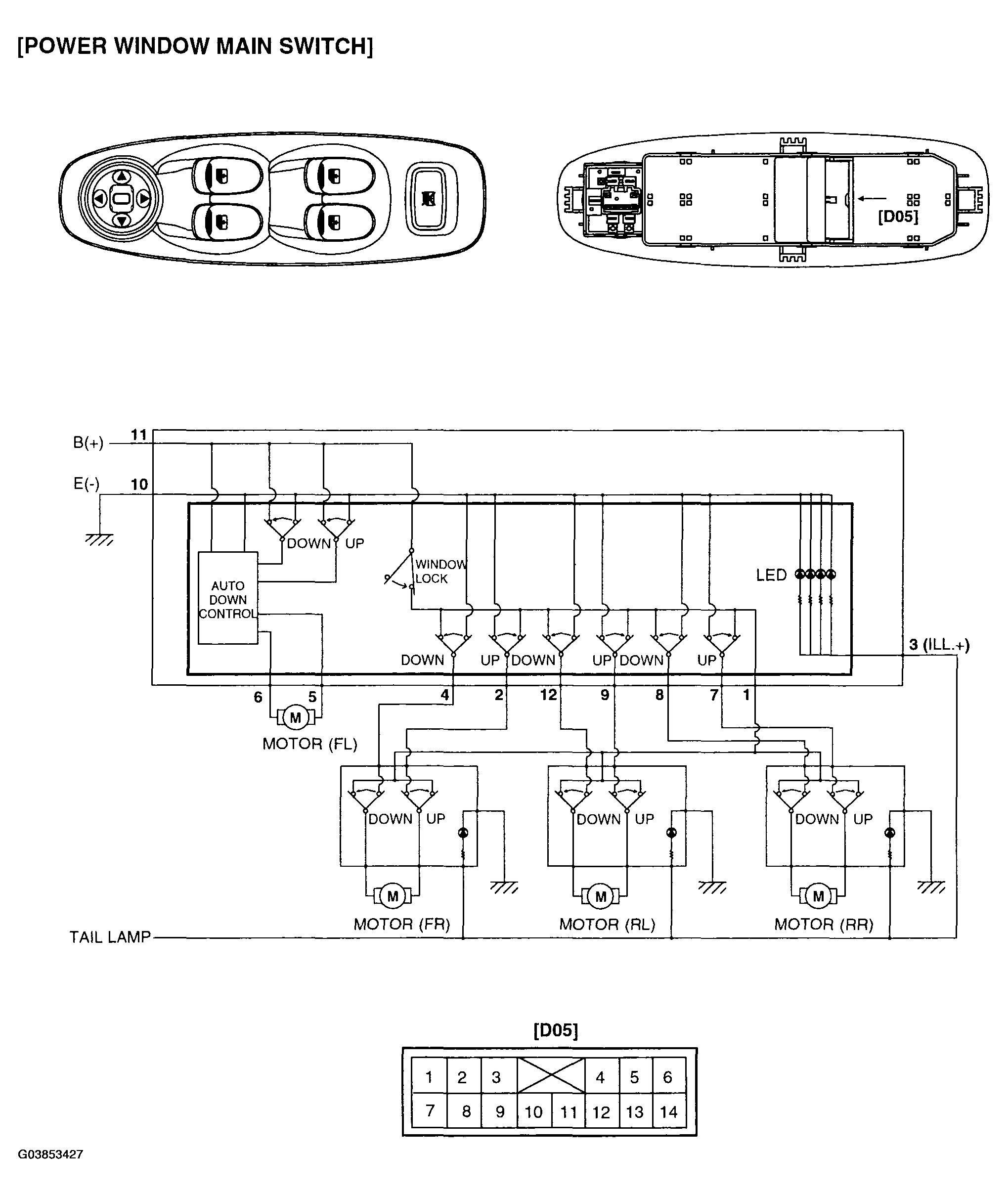

Fig 1: Identifying Power Window Main Switch Circuit Diagram
G03853427Courtesy of HYUNDAI MOTOR CO.

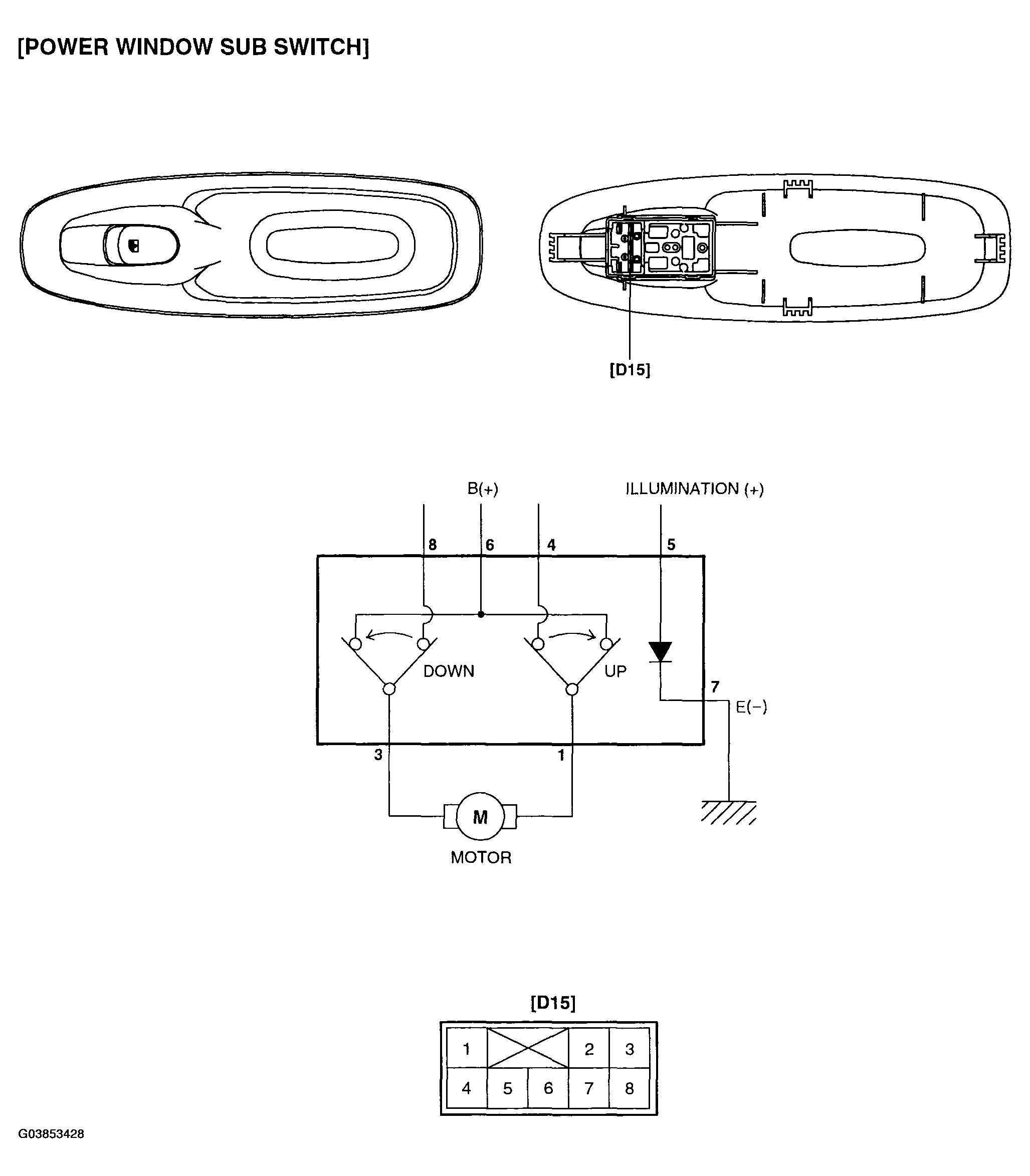

Fig 2: Identifying Power Window Sub-Switch Circuit Diagram
G03853428Courtesy of HYUNDAI MOTOR CO.
