Circuit Diagram For Starting System: Notes

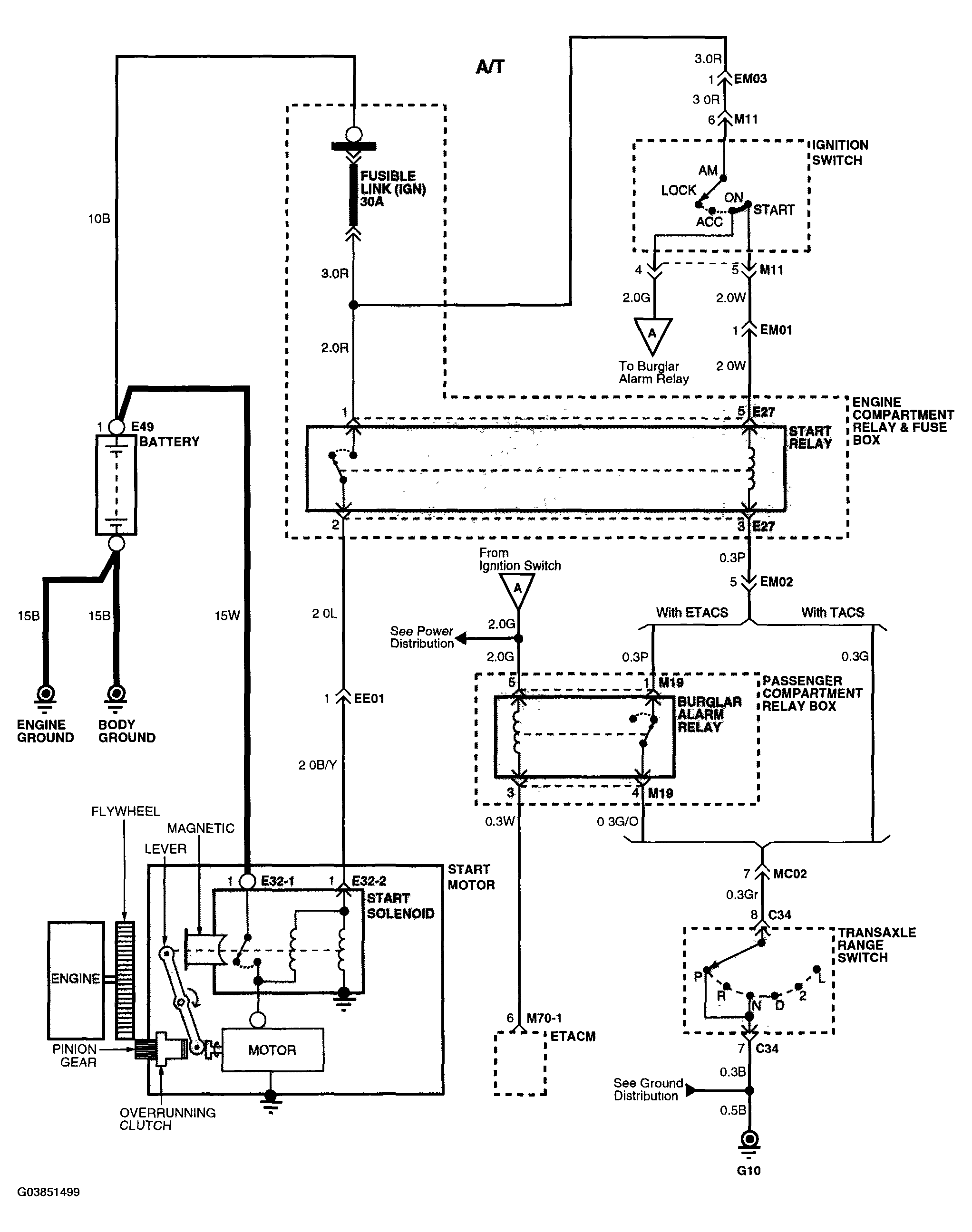

Fig 1: Circuit Diagram For Starting System (A/T)
G03851499Courtesy of HYUNDAI MOTOR CO.

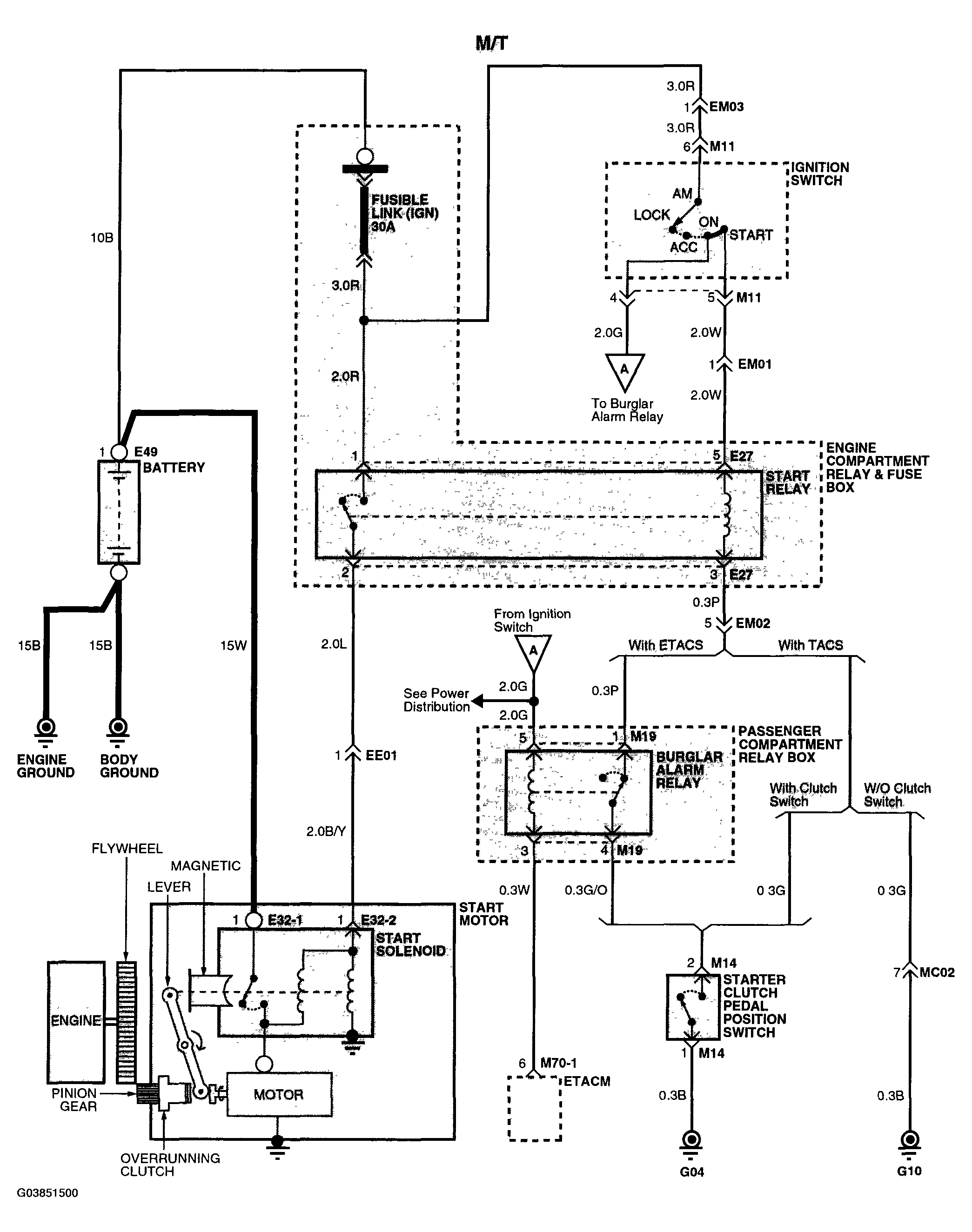

Fig 2: Circuit Diagram For Starting System (M/T)
G03851500Courtesy of HYUNDAI MOTOR CO.
