Shift And Key Lock Control System: Components

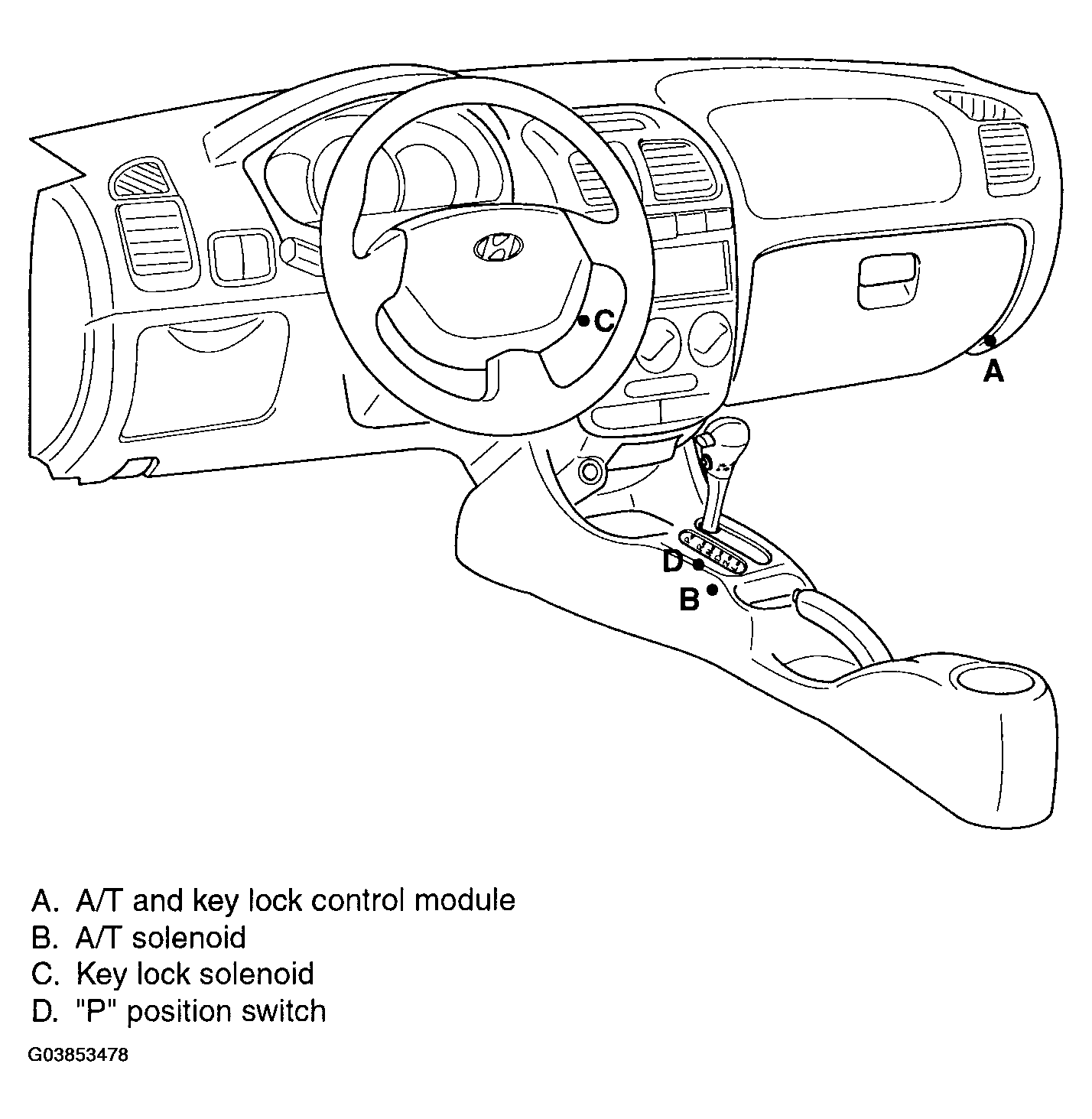

Fig 1: Identifying Shift And Key Lock Control System Components (1 Of 2)
G03853478Courtesy of HYUNDAI MOTOR CO.

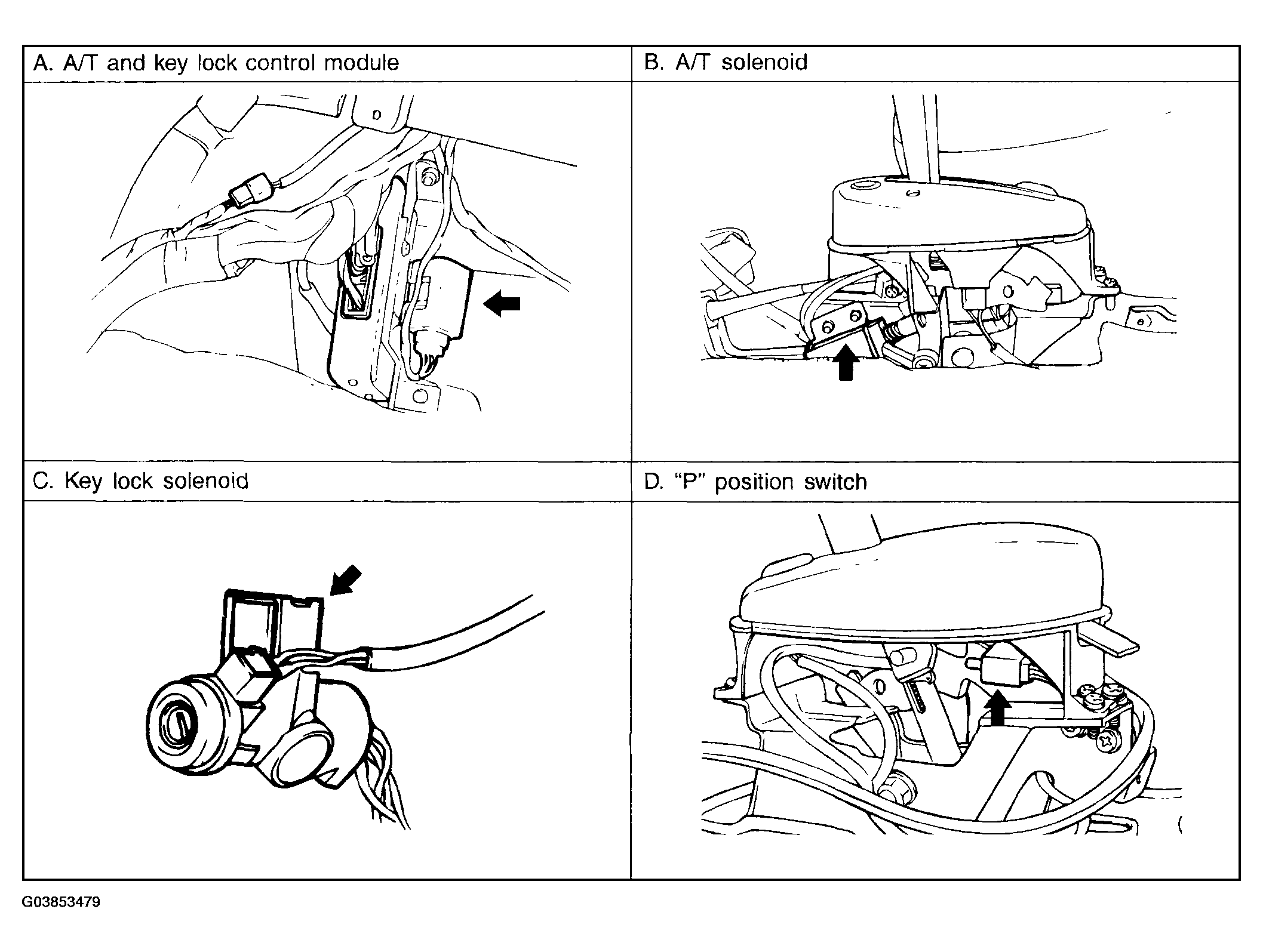

Fig 2: Identifying Shift And Key Lock Control System Components (2 Of 2)
G03853479Courtesy of HYUNDAI MOTOR CO.
