Transaxle Range Switch Replacement: Removal

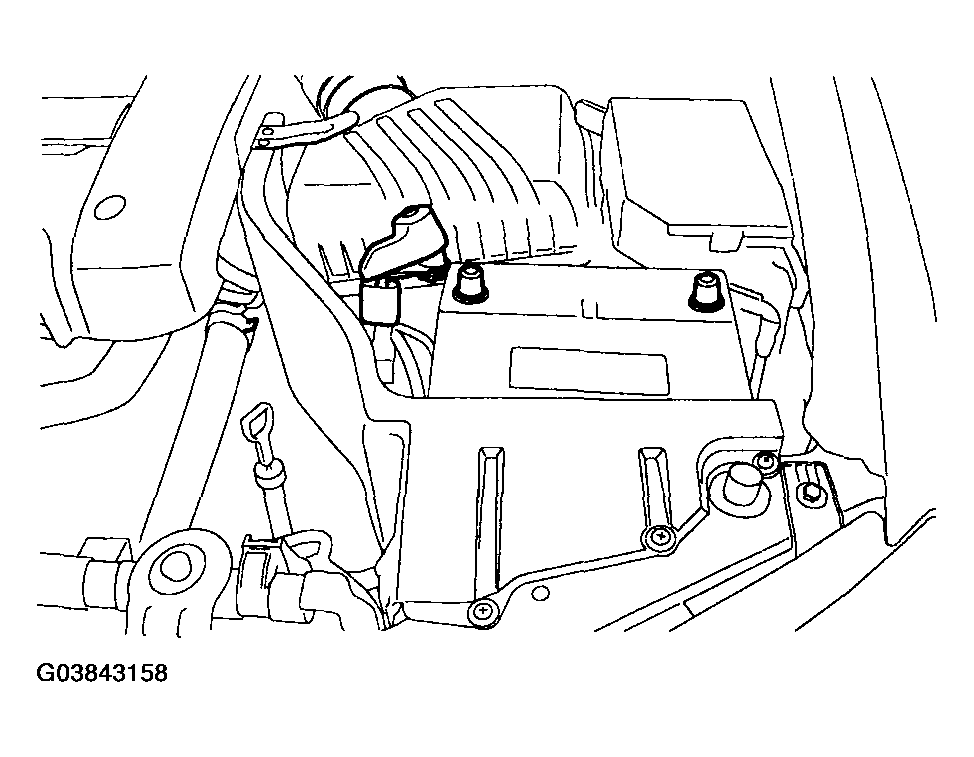

Remove the battery terminal.

Fig 1: Removing Battery Terminal
Courtesy of HYUNDAI MOTOR CO.

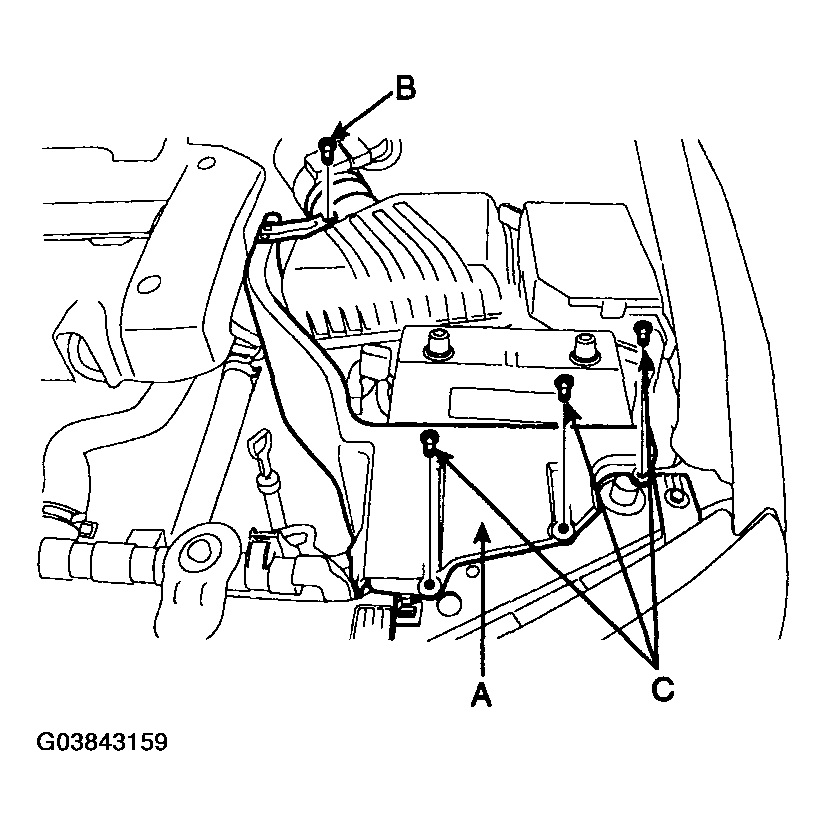

Remove the heat shield(A) (Bolt: 1EA(B), Retainer: 3EA(C)).

Fig 2: Removing Heat Shield
Courtesy of HYUNDAI MOTOR CO.

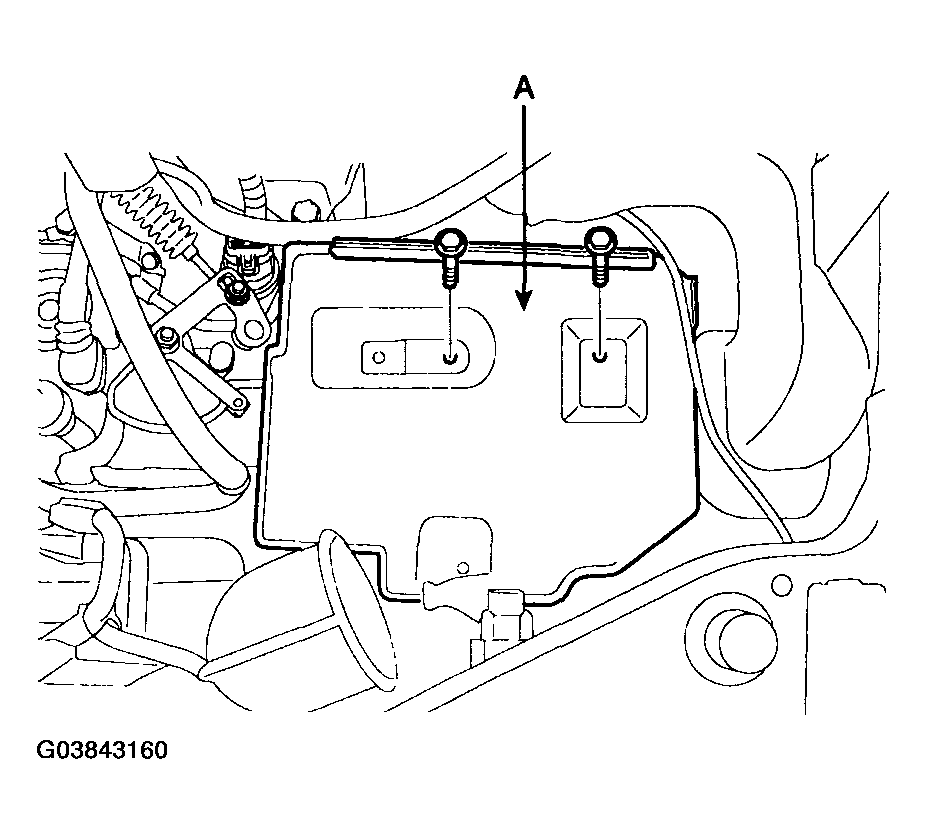

Remove the battery and battery tray(A).

Fig 3: Removing Battery And Battery Tray
Courtesy of HYUNDAI MOTOR CO.

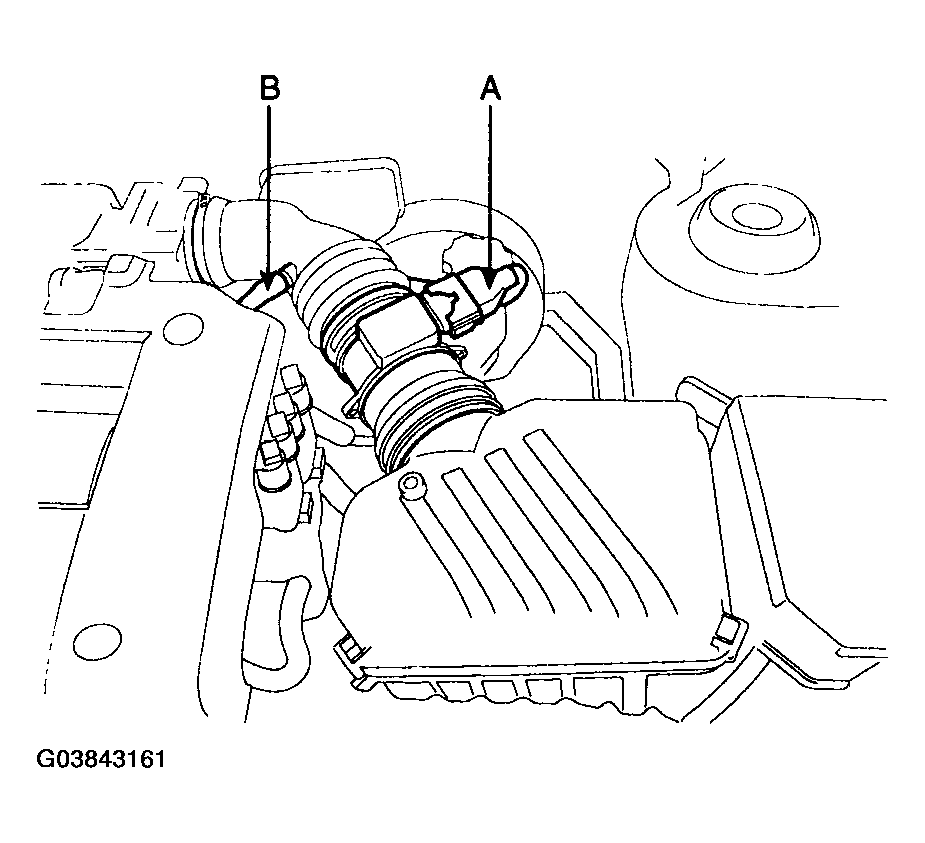

Disconnect the air flow sensor connector(A) and breather hose(B).

Fig 4: Disconnecting Air Flow Sensor Connector And Breather Hose
Courtesy of HYUNDAI MOTOR CO.
Removal of air cleaner and air intake hose.

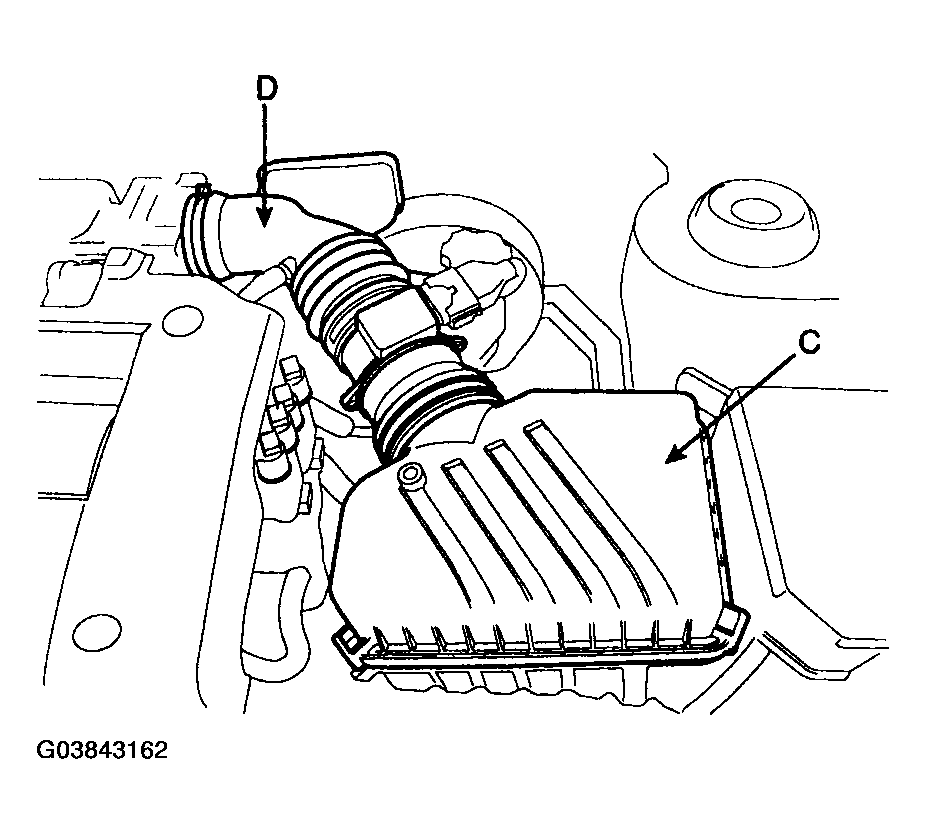

1. Air cleaner upper cover(C) and air intake hose(D).

  Fig 5: Removing Air Cleaner And Air Intake Hose
  Courtesy of HYUNDAI MOTOR CO.

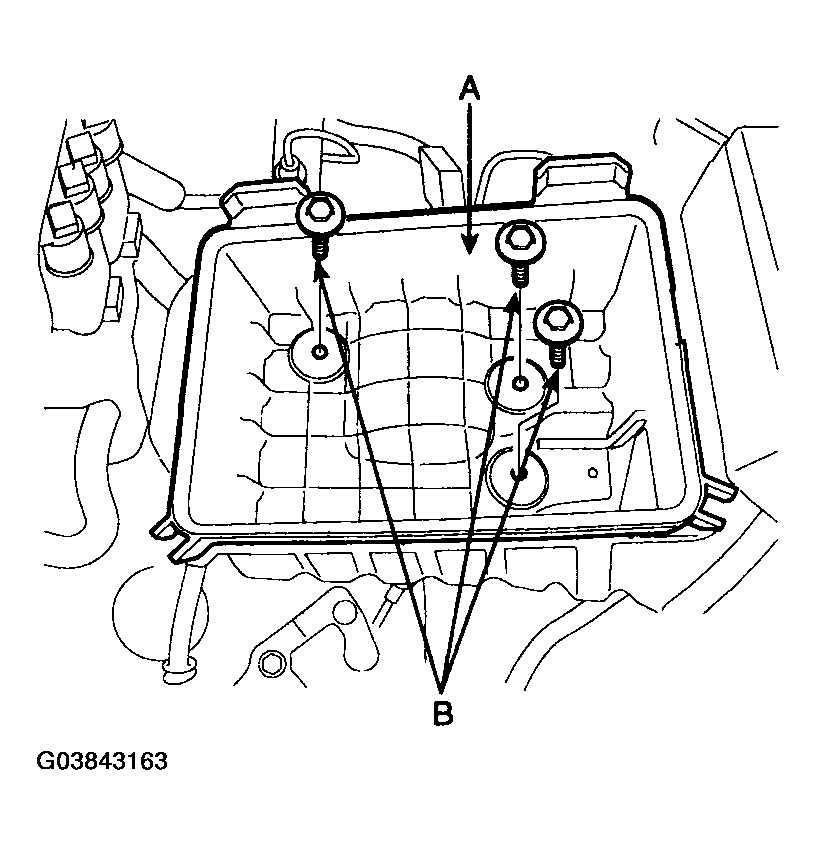

2. Air cleaner lower(A) (Bolt: 3EA(B)).

  Fig 6: Removing Air Cleaner Lower
  Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle range switch connector(A).

Fig 7: Removing Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.

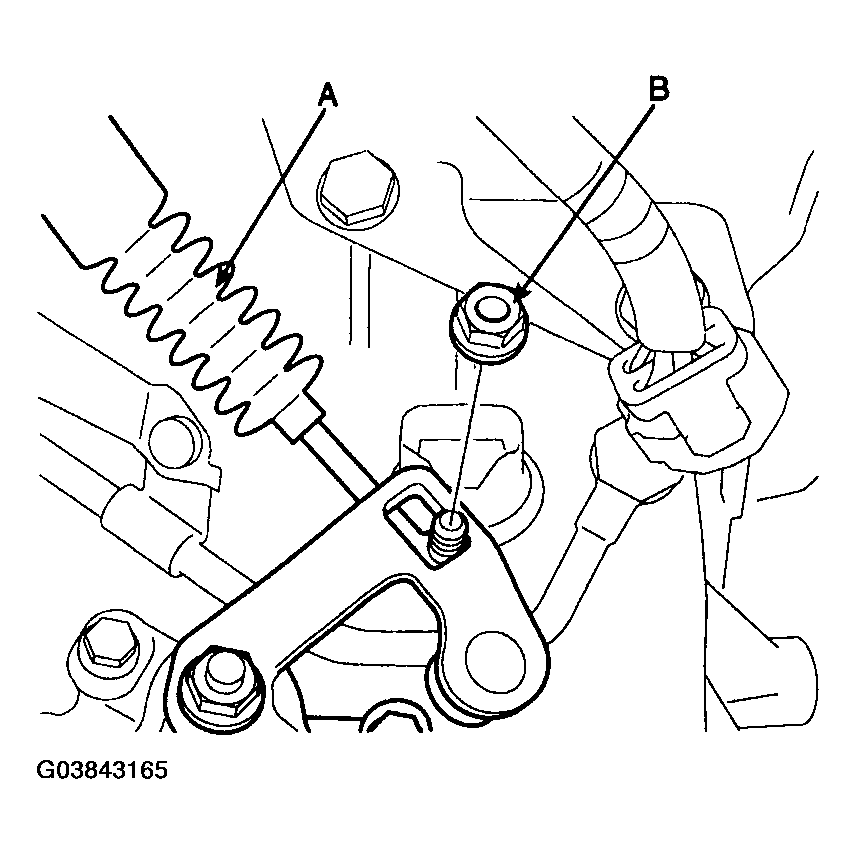

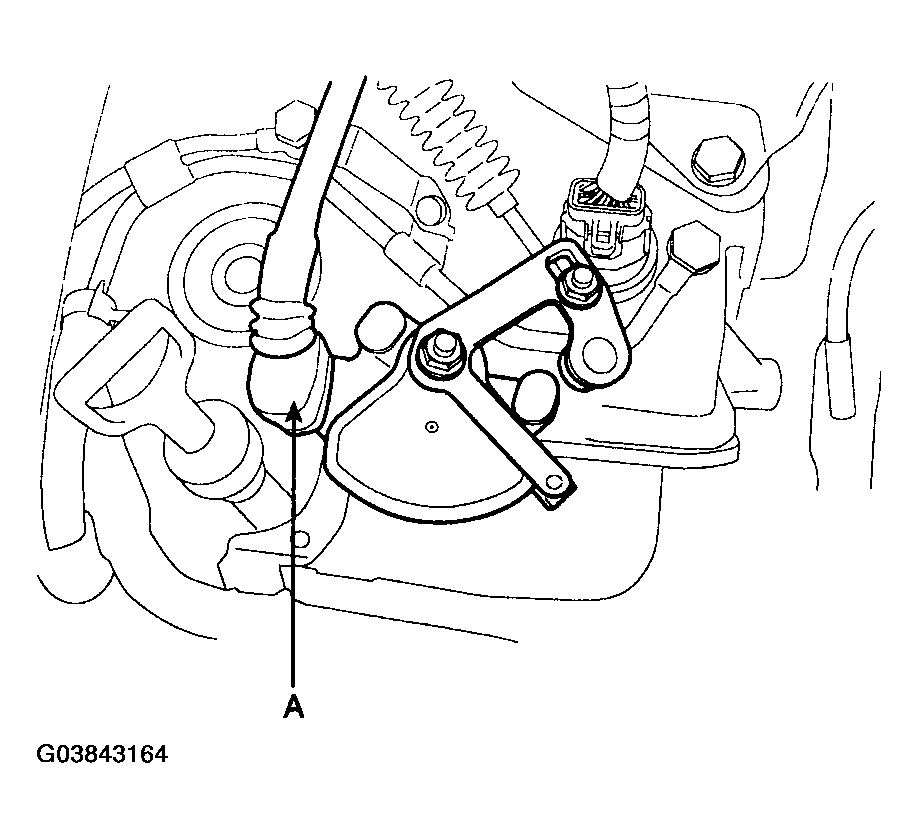

Remove the control cable to transaxle range switch(A) mounting nut(B).

Fig 8: Removing Control Cable To Transaxle Range Switch Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

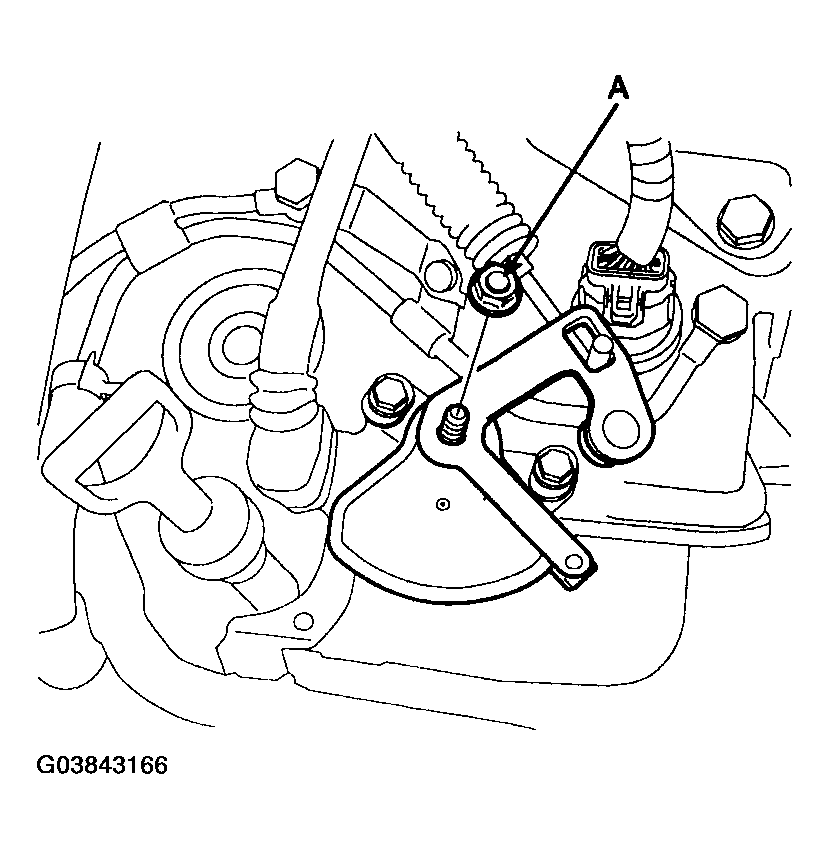

Remove the transaxle range switch manual lever mounting nut(A).

Fig 9: Removing Transaxle Range Switch Manual Lever Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

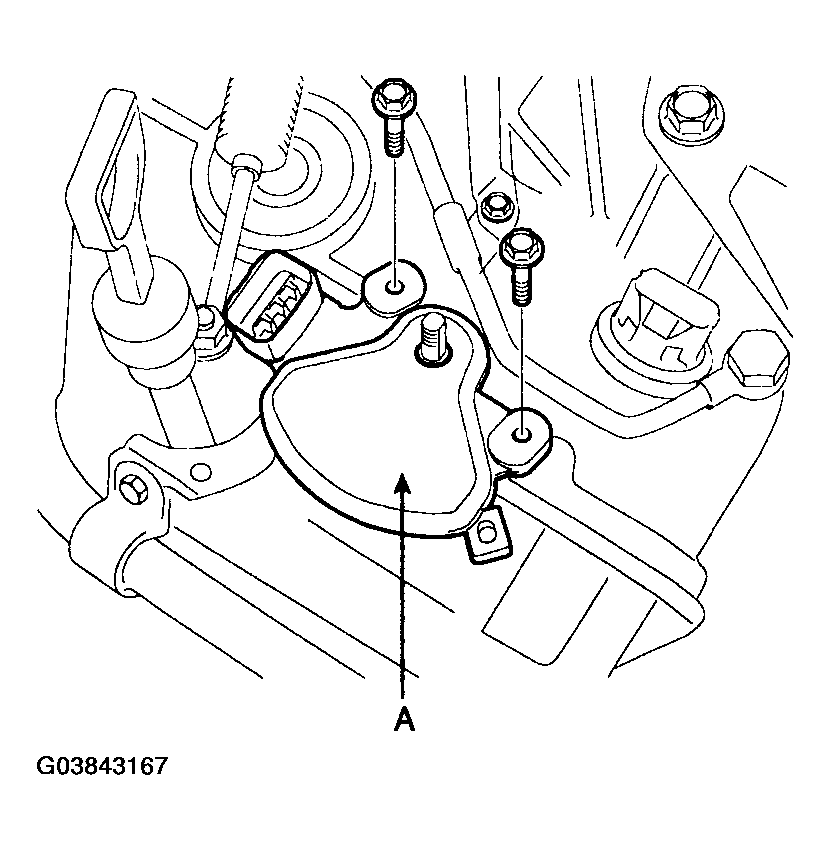

Remove the transaxle range switch(A).

Fig 10: Removing Transaxle Range Switch
Courtesy of HYUNDAI MOTOR CO.
