DTC P0030: Ho2S Heater Control Circuit (Bank 1 / Sensor 1)
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

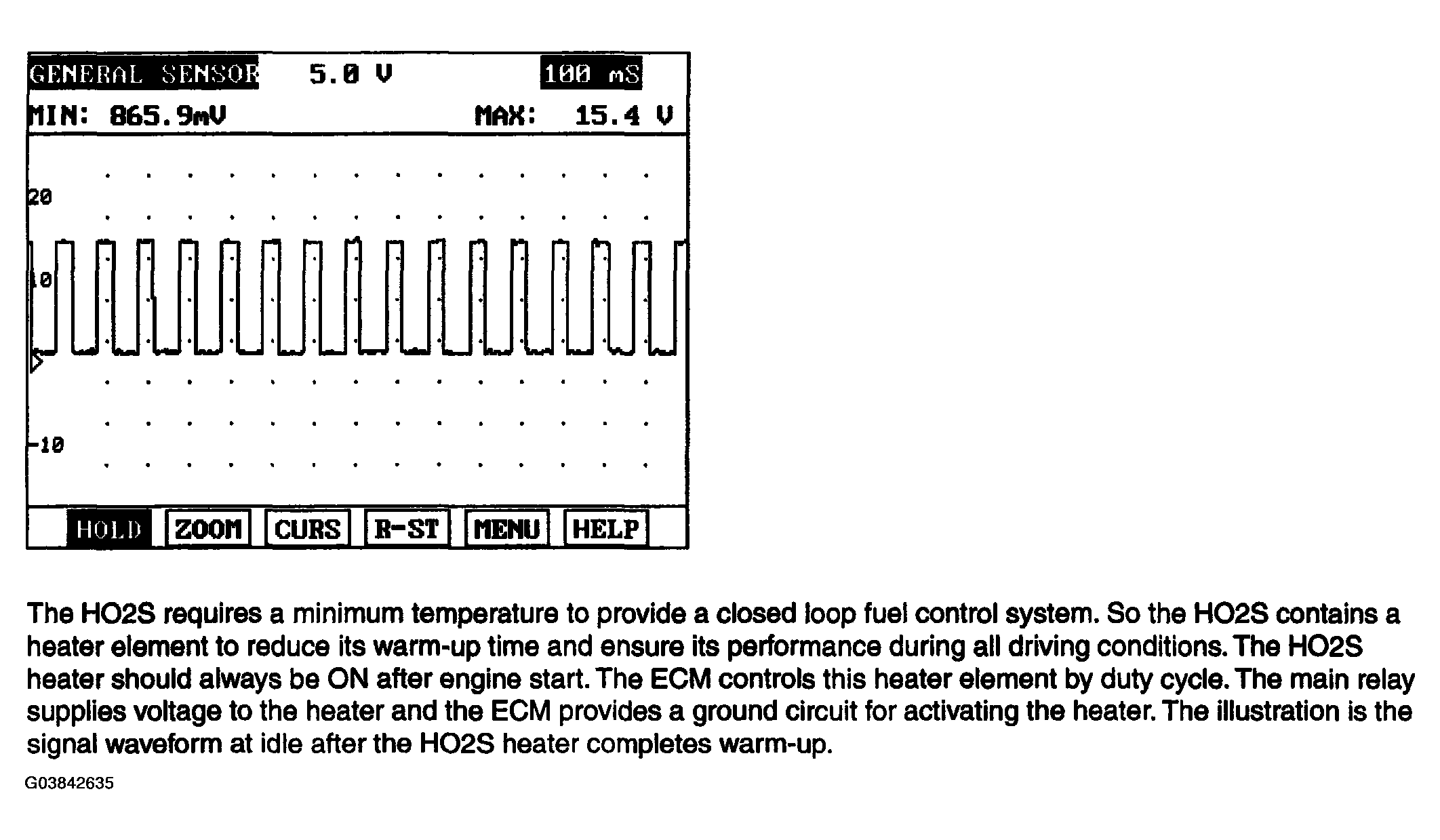

Fig 1: Heated Oxygen Sensor Oscilloscope Waveform Signal Graph
Courtesy of HYUNDAI MOTOR CO.
