Control Circuit Inspection

Ignition "OFF".
Disconnect intake valve control solenoid and PCM connectors.
Ignition "ON".
Measure voltage between terminals 1 of the intake valve control solenoid connector and chassis ground.
Specification : Below 0.5V

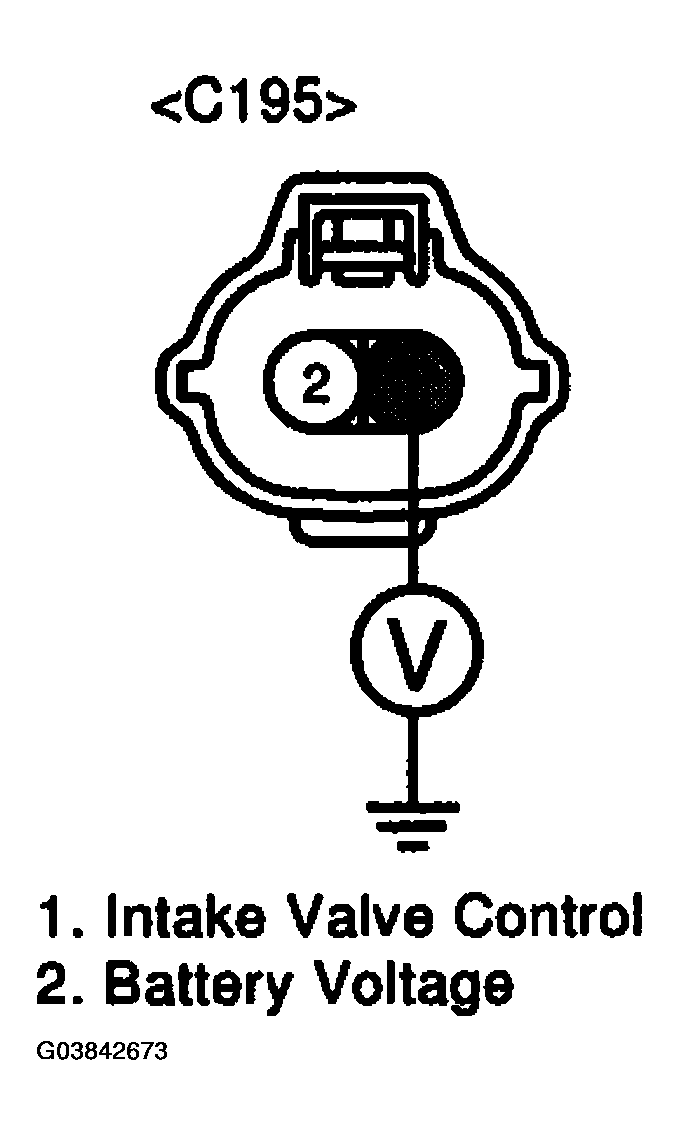

Fig 1: Measuring Voltage Between Terminals 1 Of Intake Valve Control Solenoid Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specification?
YES
- Go to TERMINAL AND CONNECTOR INSPECTION procedure.
NO
- Repair short to power in harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
