Signal Circuit Inspection

Check for open in signal harness.
1. Ignition "OFF".
2. Disconnect PCM connector.
3. Measure resistance between terminals 3 of sensor harness connector and 60 of the PCM harness connector.
  Specification: Approx. 0Ω

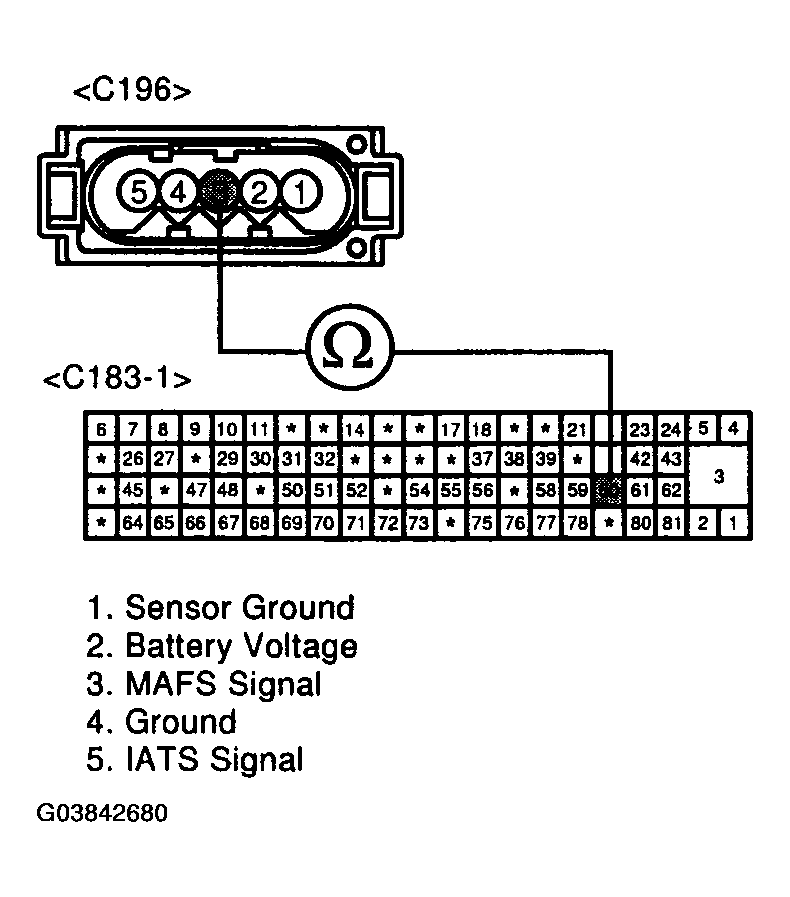

  Fig 1: Measuring Resistance Between Terminals 3 Of Sensor Harness Connector And 60 Of PCM Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within the specification?
  YES
  - Go to next step as below
  NO
  - Check for an open in signal harness. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
Check for short to ground in signal harness.
1. Measure resistance between terminal 3 of sensor harness connector and chassis ground.
  Specification: Infinite

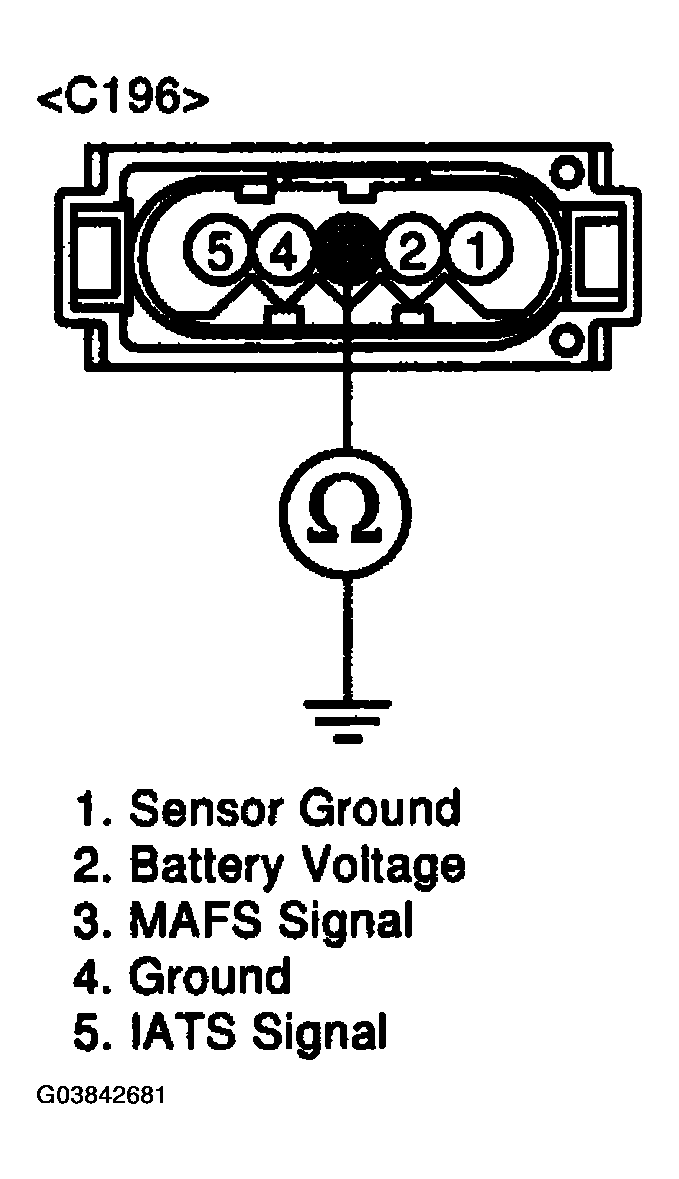

  Fig 2: Measuring Resistance Between Terminal 3 Of Sensor Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
2. Is resistance within the specification?
  YES
  - Go to COMPONENT INSPECTION procedure.
  NO
  - Check for short to ground in signal harness. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
