Schematic Diagram

Refer to DTC P0111 INTAKE AIR TEMPERATURE SENSOR1 CIRCUIT RANGE/PERFORMANCE .

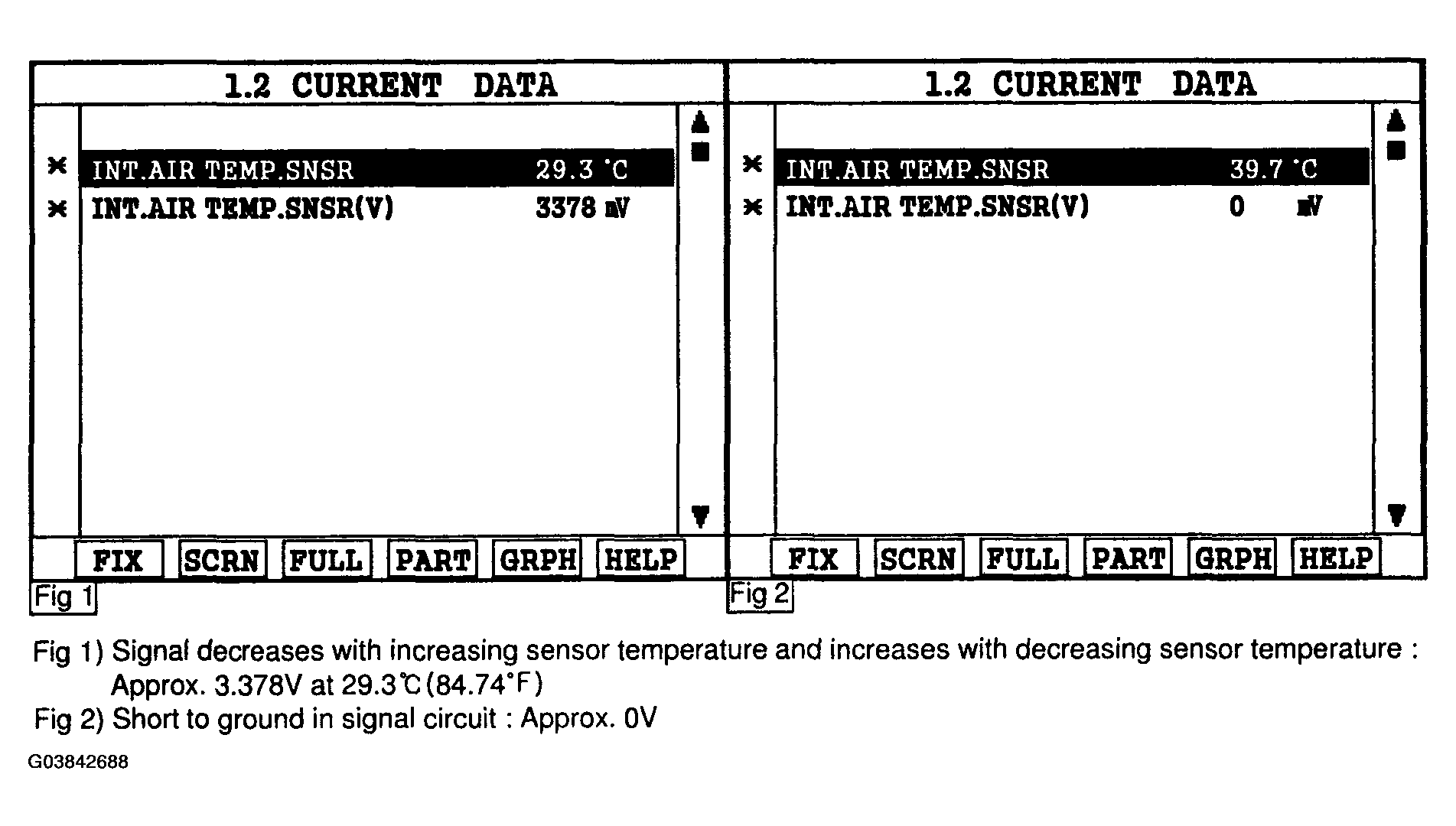

Fig 1: Scantool Data Monitor List

Courtesy of HYUNDAI MOTOR CO.

Fig 1) Signal decreases with increasing sensor temperature and increases with decreasing sensor temperature : Approx. 3.378V at 29.3°C (84.74°F)

Fig 2) Short to ground in signal circuit: Approx. 0V
